How To Determine Bolt Strength

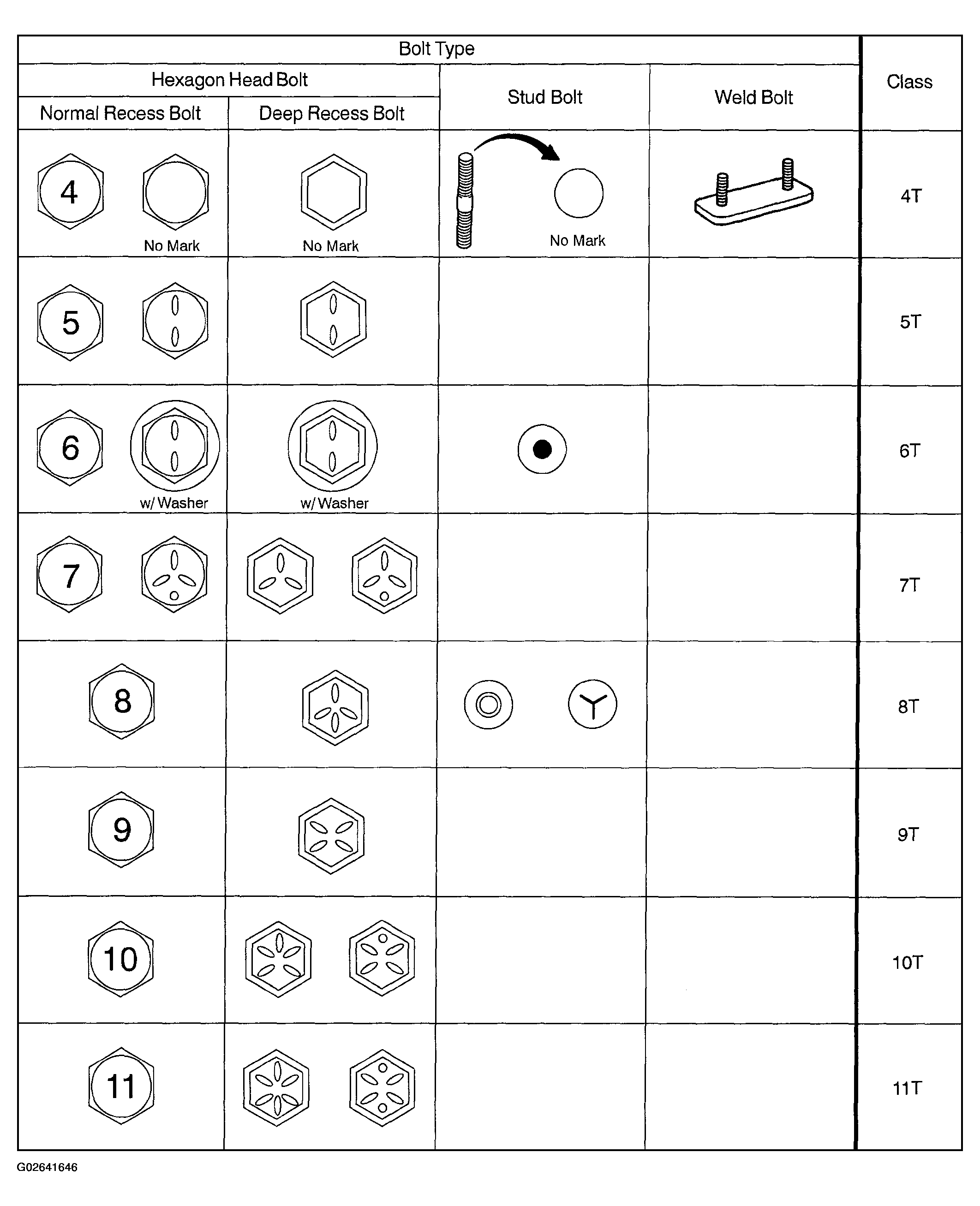

Fig 1: Standard Bolt Specification Chart
G02641646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
