Quarter Window Glass: Components

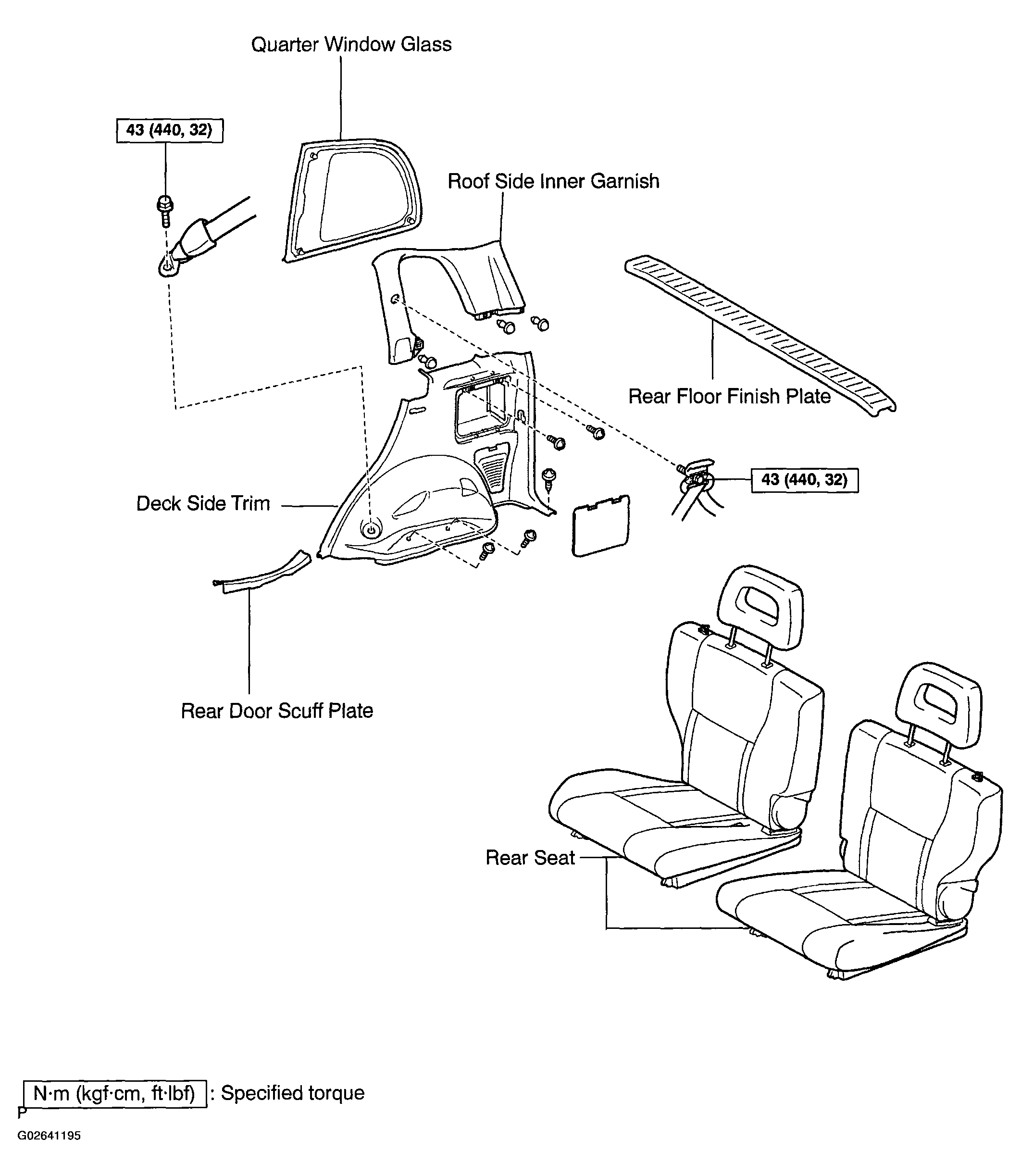

Fig 1: Quarter Window Glass Replacement Components With Torque Specifications
G02641195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
