Mil Circuit: Wiring Diagram

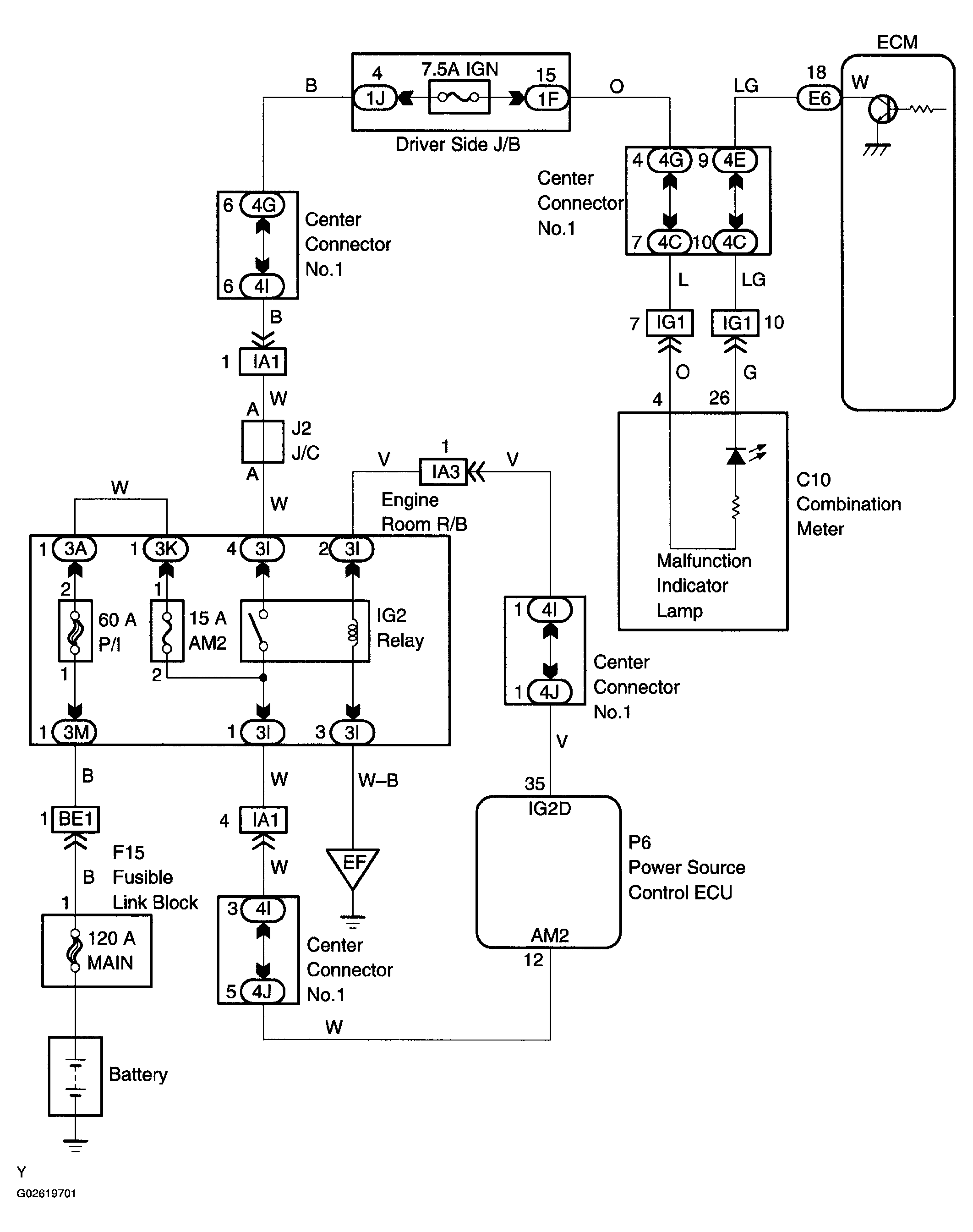

Fig 1: MIL Wiring Diagram

G02619701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
