Inspection Procedure

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG) and press the hand-held tester main switch ON.
3. Read the DATA LIST according to the displays on the tester.

   Power source control ECU:

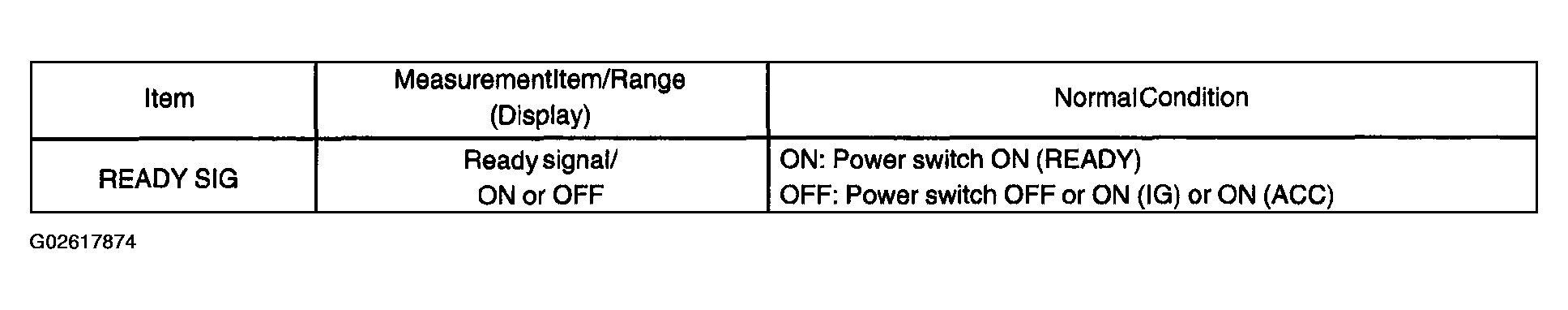

   Fig 1: Power Source Control ECU - Data List

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: ON (power switch is ON (READY)) appears on the screen.

1. NG: Go to step 2
2. OK: GO TO NEXT STEP

   REPLACE POWER SOURCE CONTROL ECU

1. Disconnect the P6 and H14 ECU connectors.
2. Measure the resistance of the wire harness side connectors.

   Standard:

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   P6-22 (RDY) - H14-28 (RDY)	Below 1 Ω
   P6-22 (RDY) or H14-28 (RDY) - Body ground	10 kΩ or higher

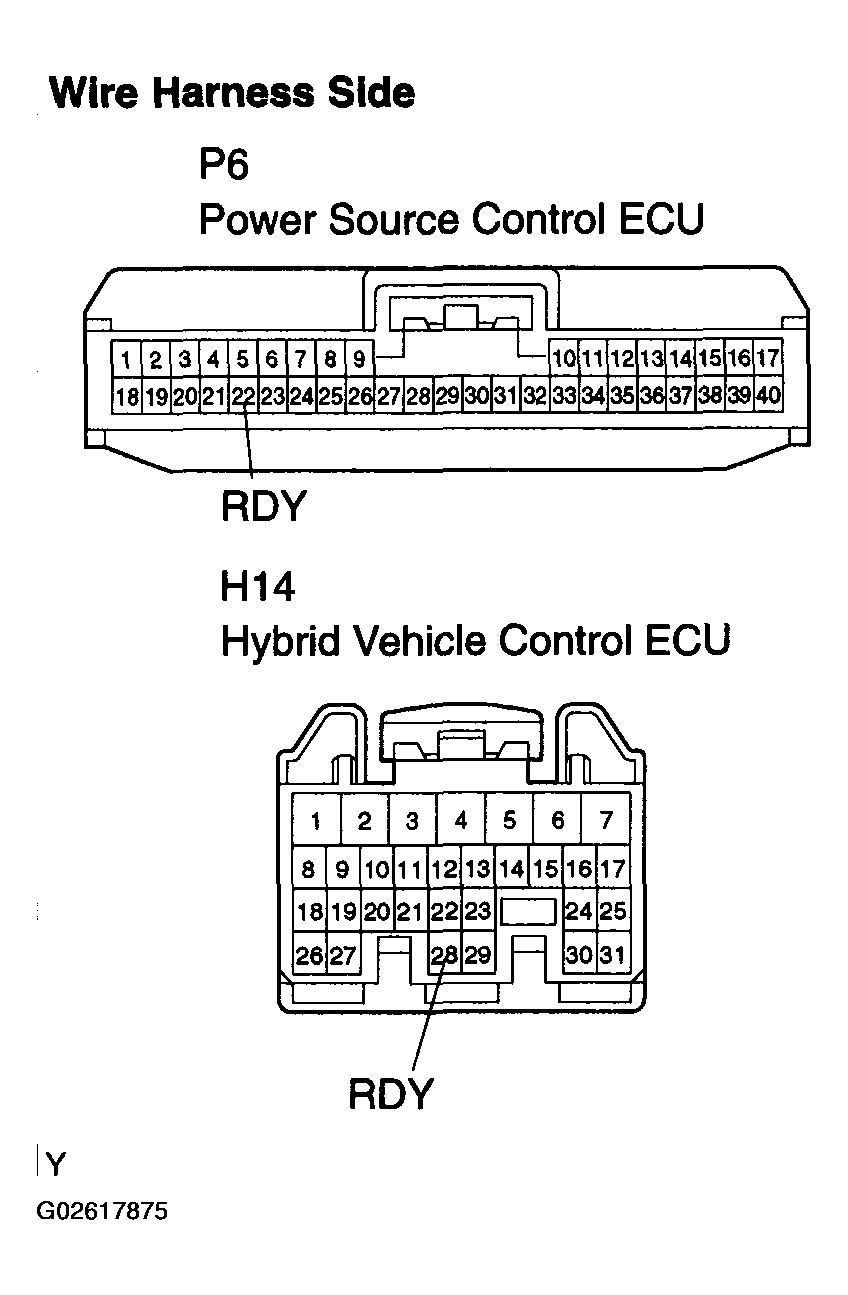

   Fig 2: Disconnecting P6 And H14 ECU Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: GO TO NEXT STEP

1. After replacing the power source control ECU with a normally functioning ECU, check that the hybrid vehicle control system can start normally.

   OK: Hybrid vehicle control system can start normally.

1. NG: Go to HYBRID CONTROL SYSTEM (See  HOW TO PROCEED WITH TROUBLESHOOTING  )
2. OK: GO TO NEXT STEP

   NORMAL (POWER SOURCE CONTROL ECU DEFECTIVE)
