Circuit Description

This DTC is output when a malfunction is occurring in the IG output circuit, which is from the IG2 relay actuation circuit inside the power source control ECU to the IG2 relay.

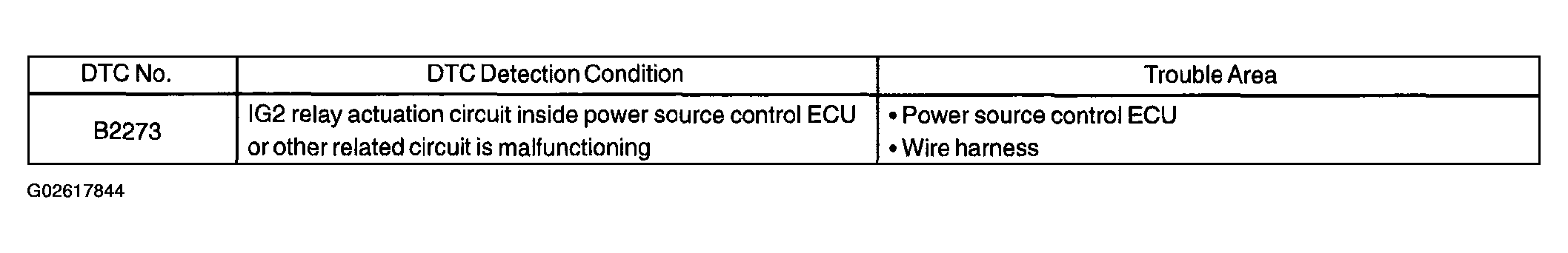

Fig 1: DTC B2273 Ignition 2 Monitor Malfunction - DTC Detection Condition
G02617844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
