Circuit Description

This DTC is output when a malfunction is occurring in the IG output circuit, which is from the IG1 relay actuation circuit inside the power source control ECU to the IG1 relay.

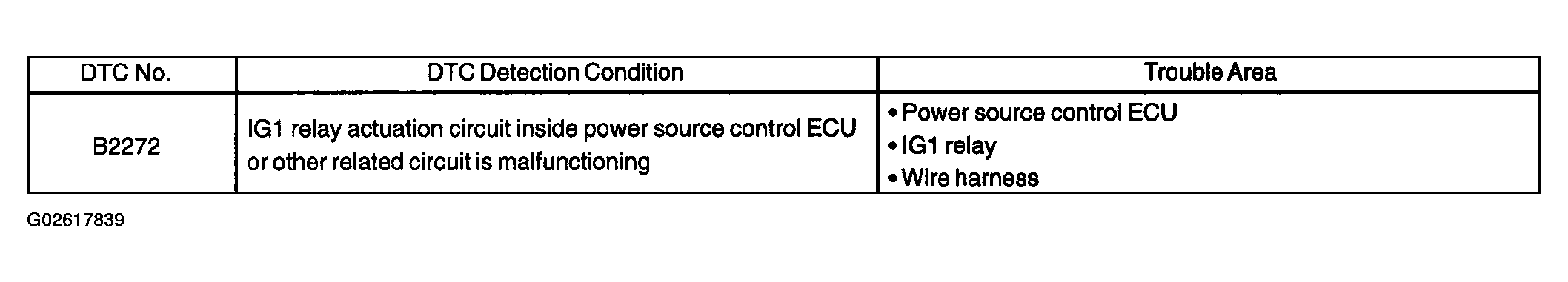

Fig 1: DTC B2272 Ignition 1 Monitor Malfunction - DTC Detection Condition
G02617839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
