Only Wireless Control Function Is Inoperative: Wiring Diagram

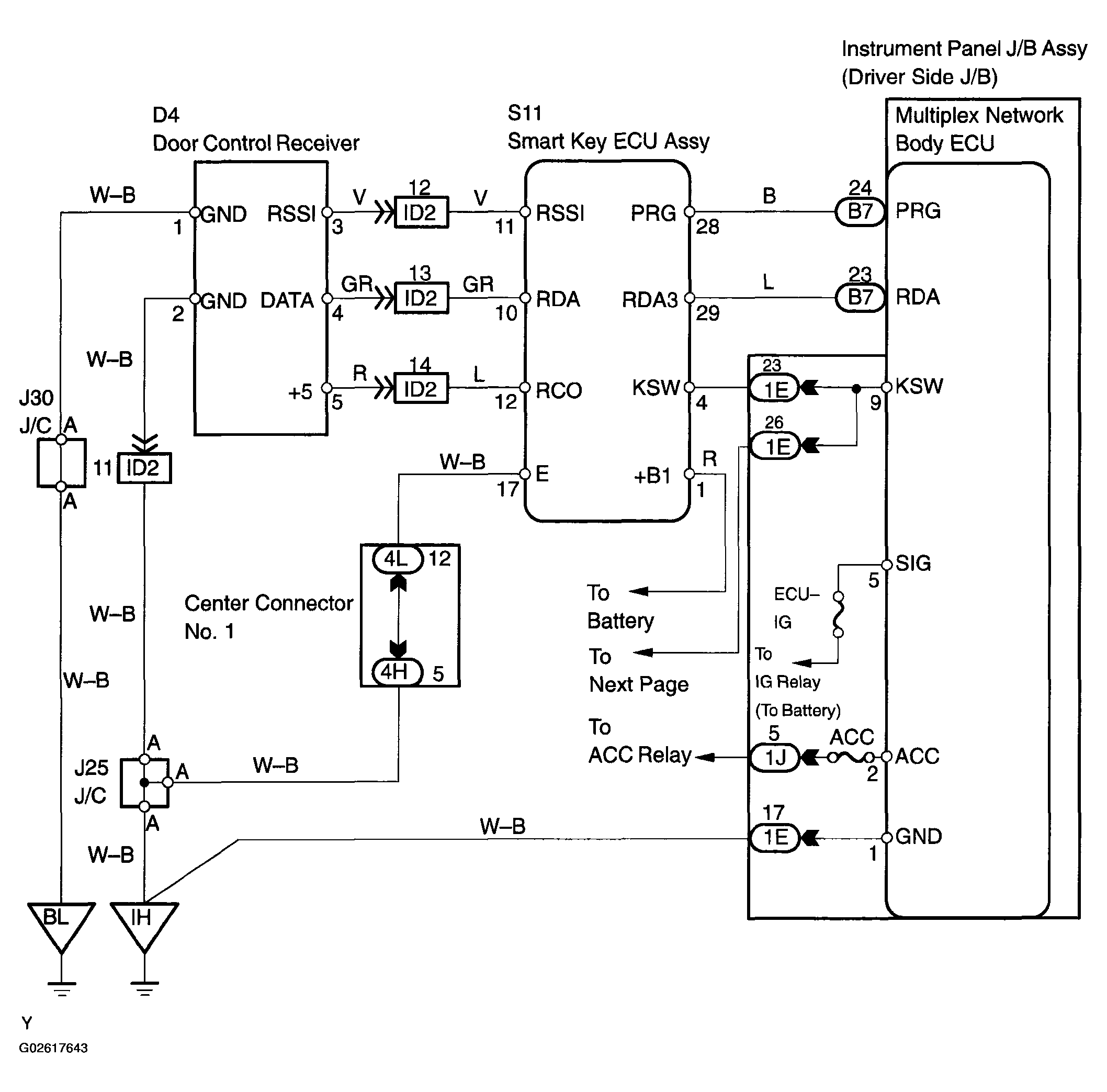

Fig 1: Wiring Diagram - Wireless Control Function Is Inoperative (1 Of 2)
G02617643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

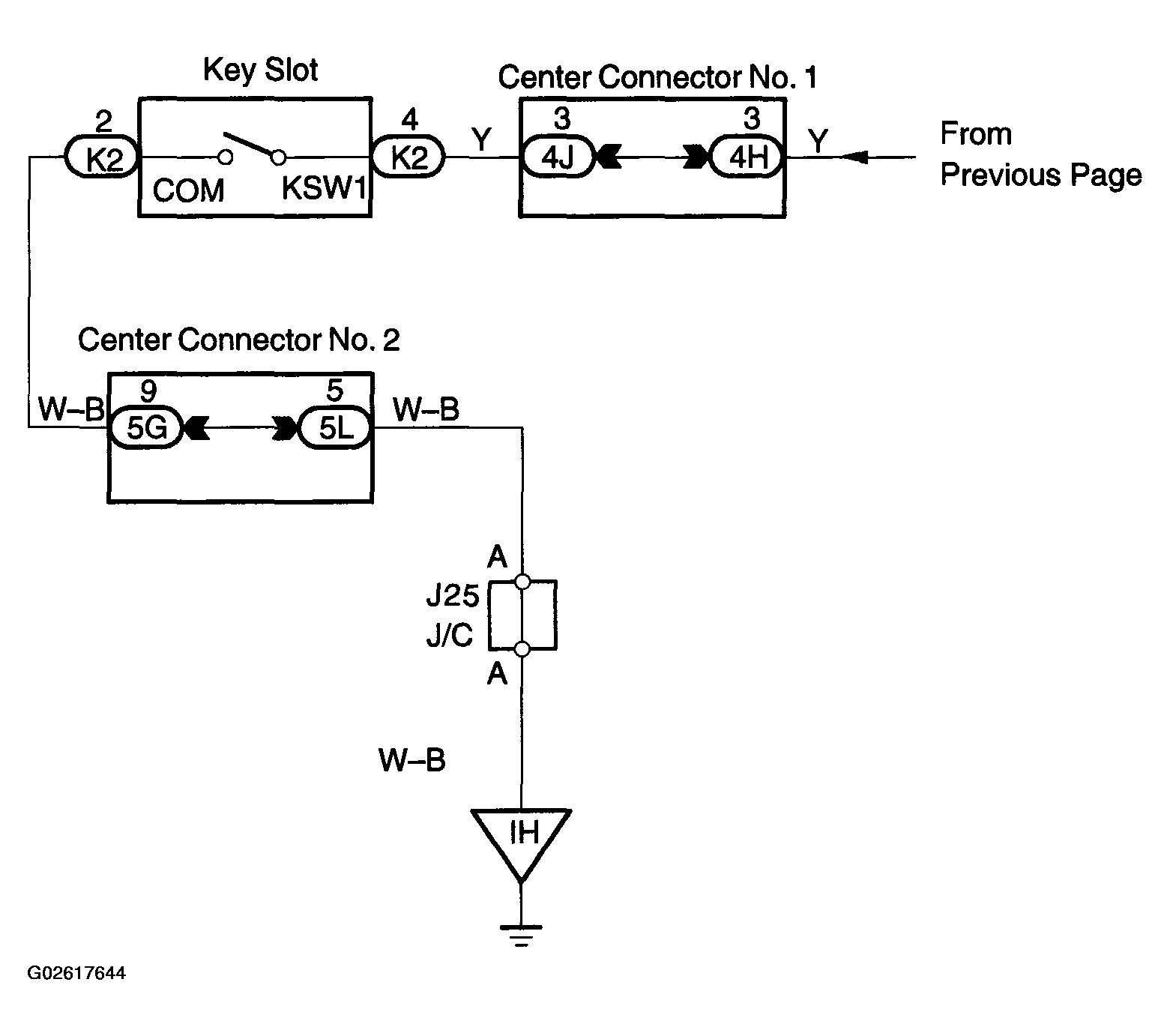

Fig 2: Wiring Diagram - Wireless Control Function Is Inoperative (2 Of 2)
G02617644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
