Smart Lock Function Does Not Operate On Driver Side Door: Wiring Diagram

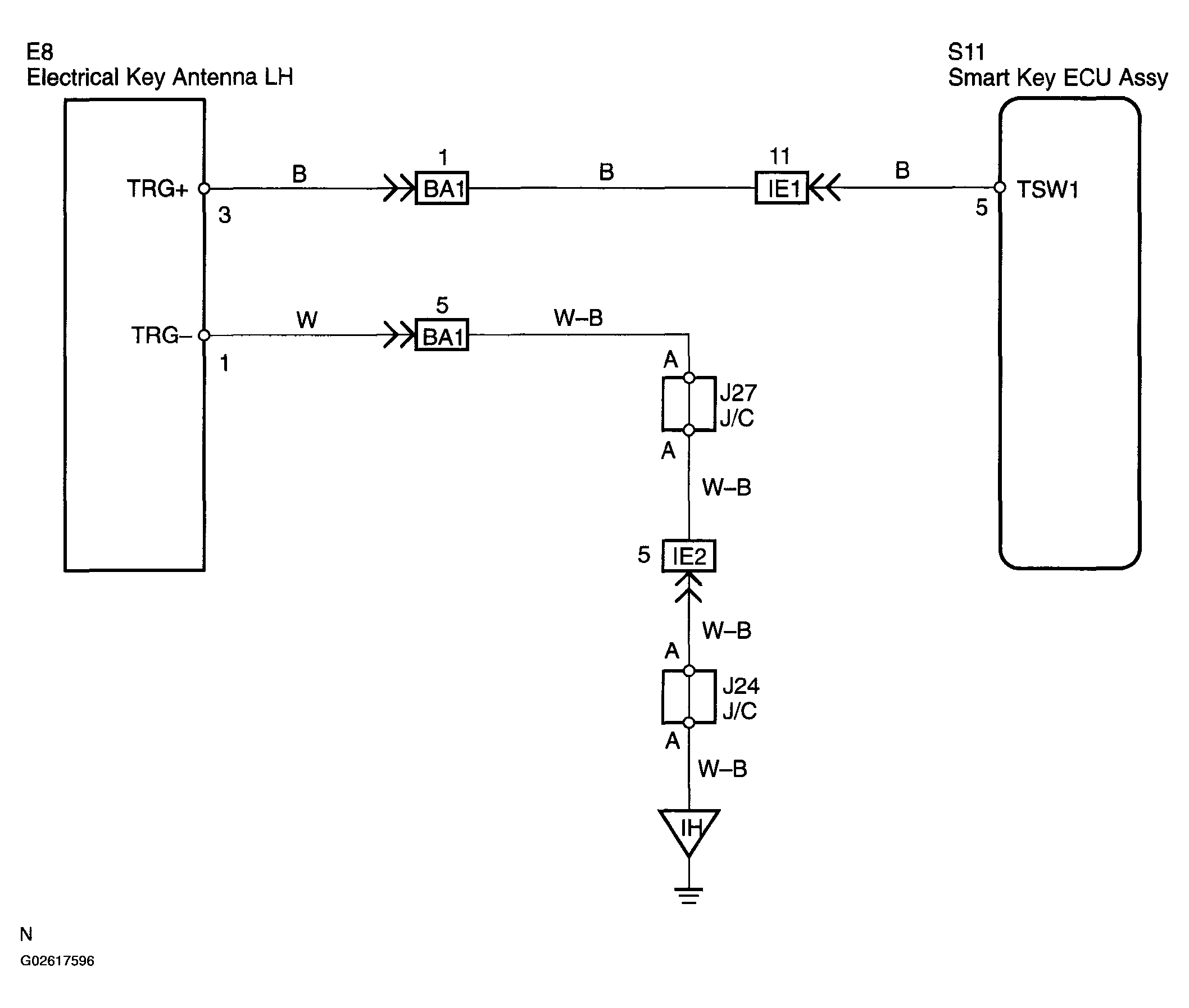

Fig 1: Wiring Diagram - Smart Lock Function Does Not Operate On Driver Side Door
G02617596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
