Smart Indicator Does Not Operate: Wiring Diagram

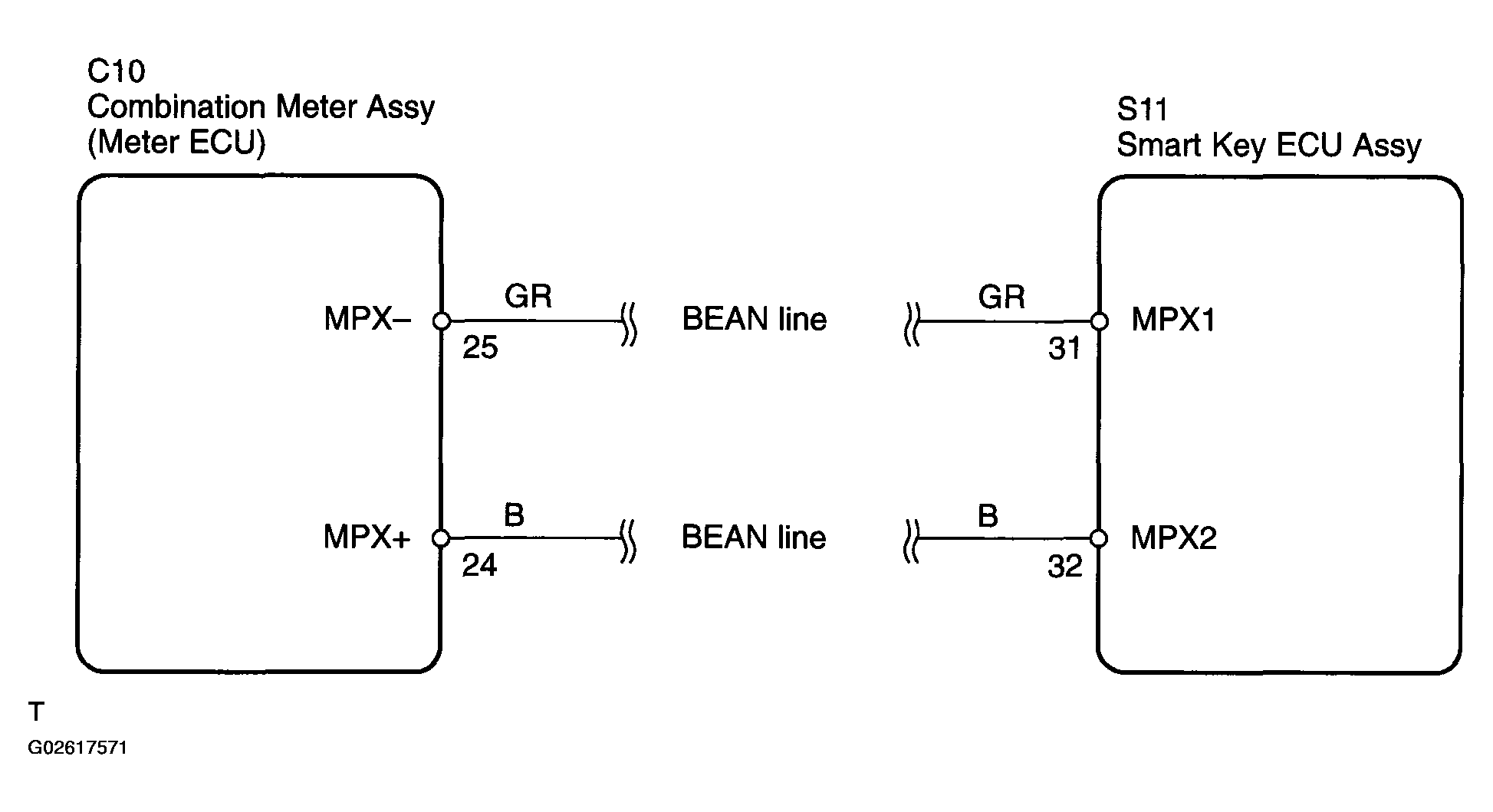

Fig 1: Wiring Diagram - Smart Indicator Does Not Operate

G02617571

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
