Smart Cancel Switch Does Not Operate: Wiring Diagram

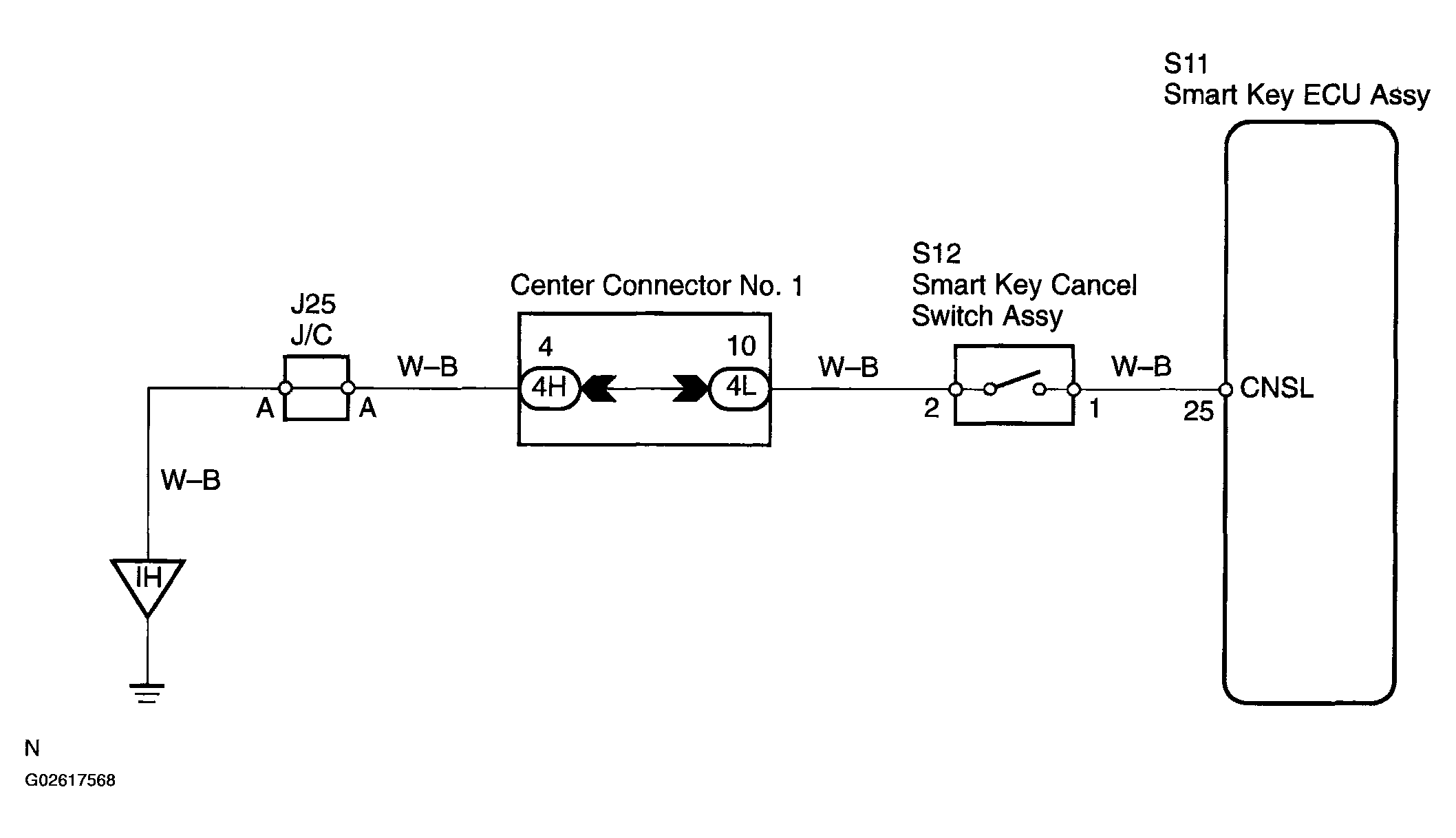

Fig 1: Wiring Diagram - Smart Cancel Switch Does Not Operate

G02617568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
