Fail-Safe Chart

  1. If the following conditions are detected while the cruise control is in operation, the system clears the stored vehicle speed in the ECM and cancels the cruise control operation.

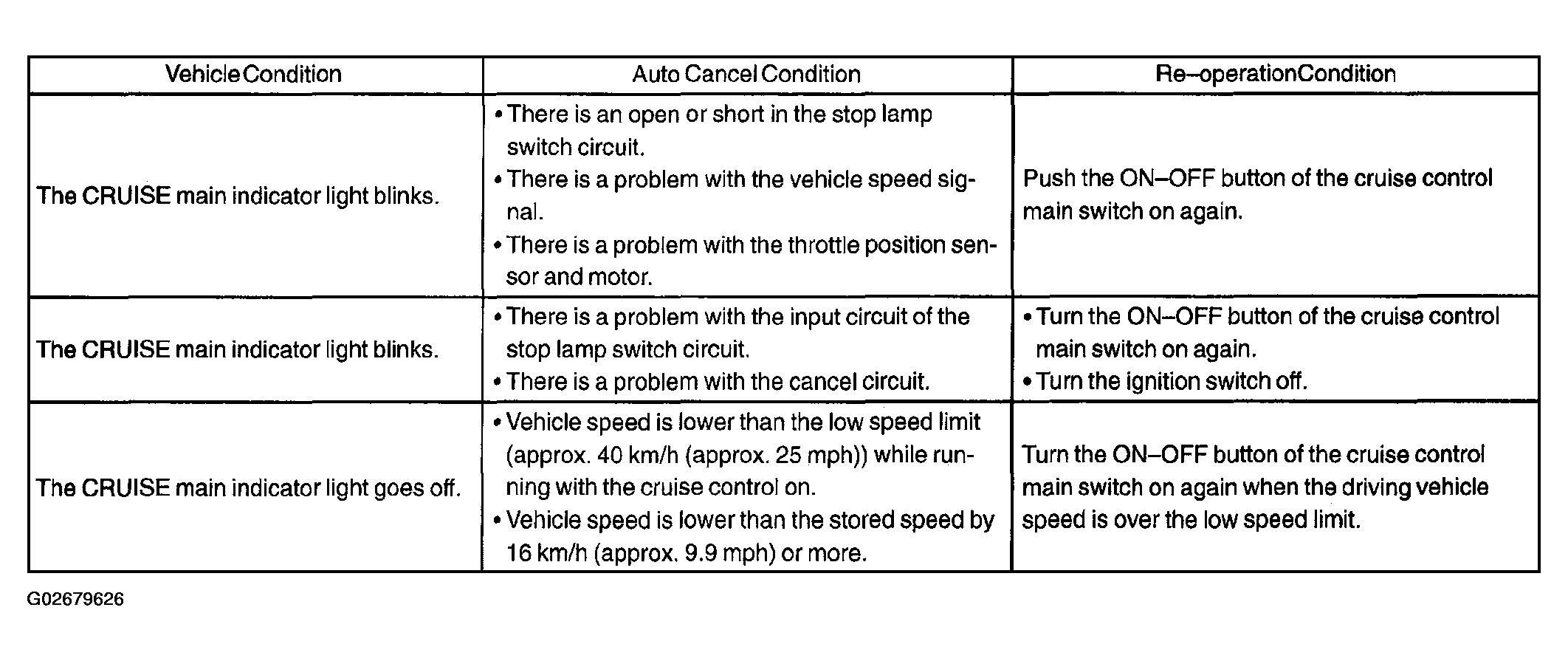

    Fig 1: Fail-Safe Chart
    G02679626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
