Door Unlock Detection Switch Circuit: Wiring Diagram

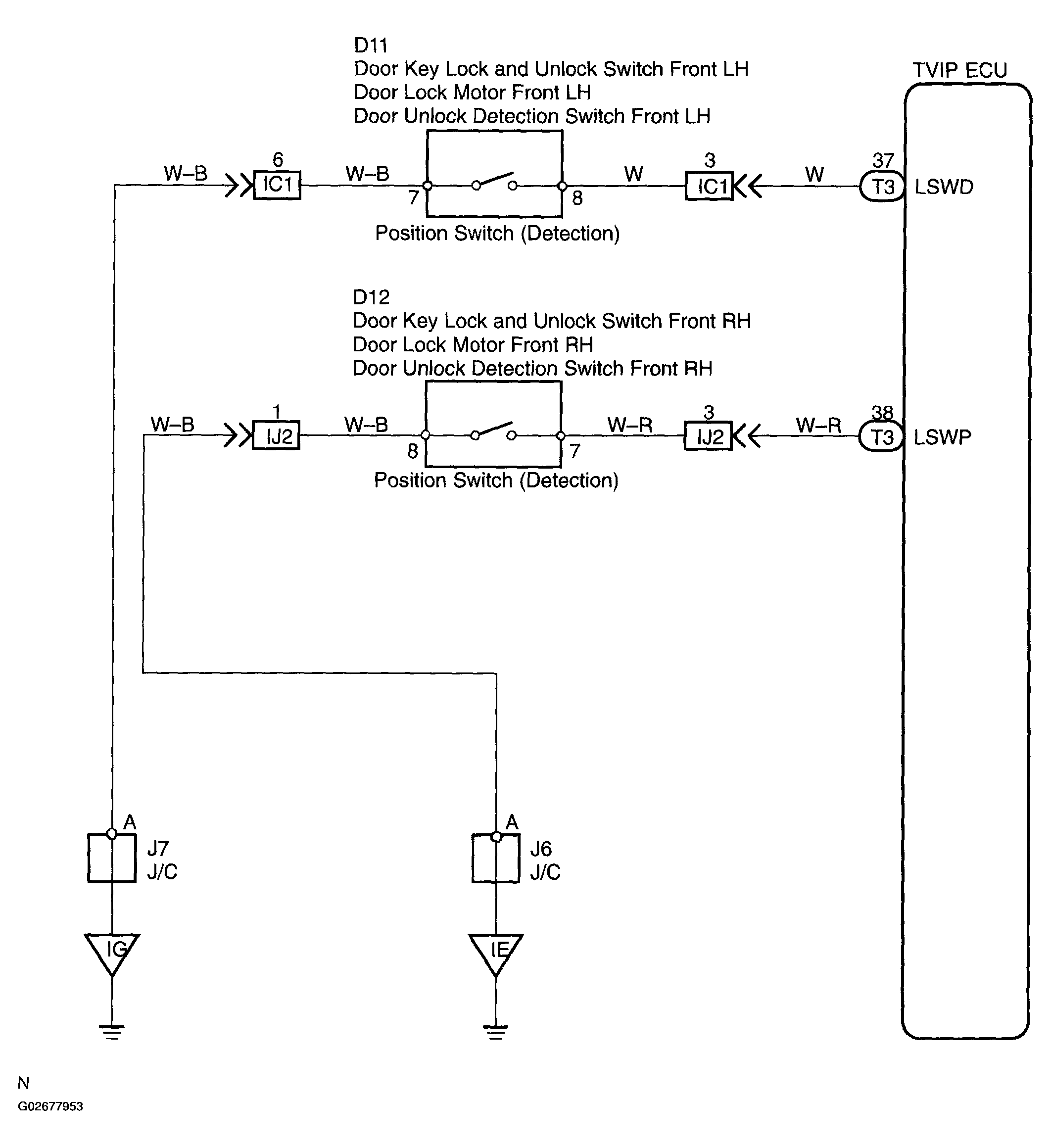

Fig 1: Identifying Door Unlock Detection Switch Wiring Diagram
G02677953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
