Cruise Control Systems
>>
Cruise Control System (W/ETCS-I) - Diagnostics
>>
Terminals Of ECM
Terminals Of ECM

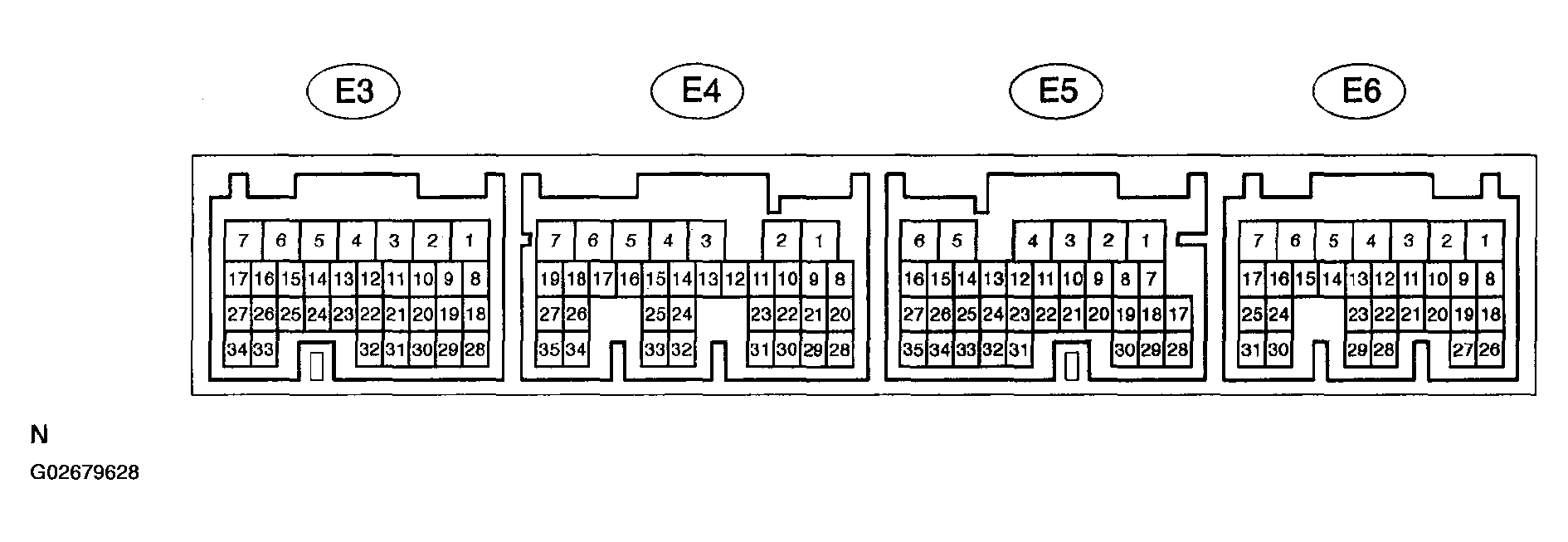

Fig 1: Identifying Terminals Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

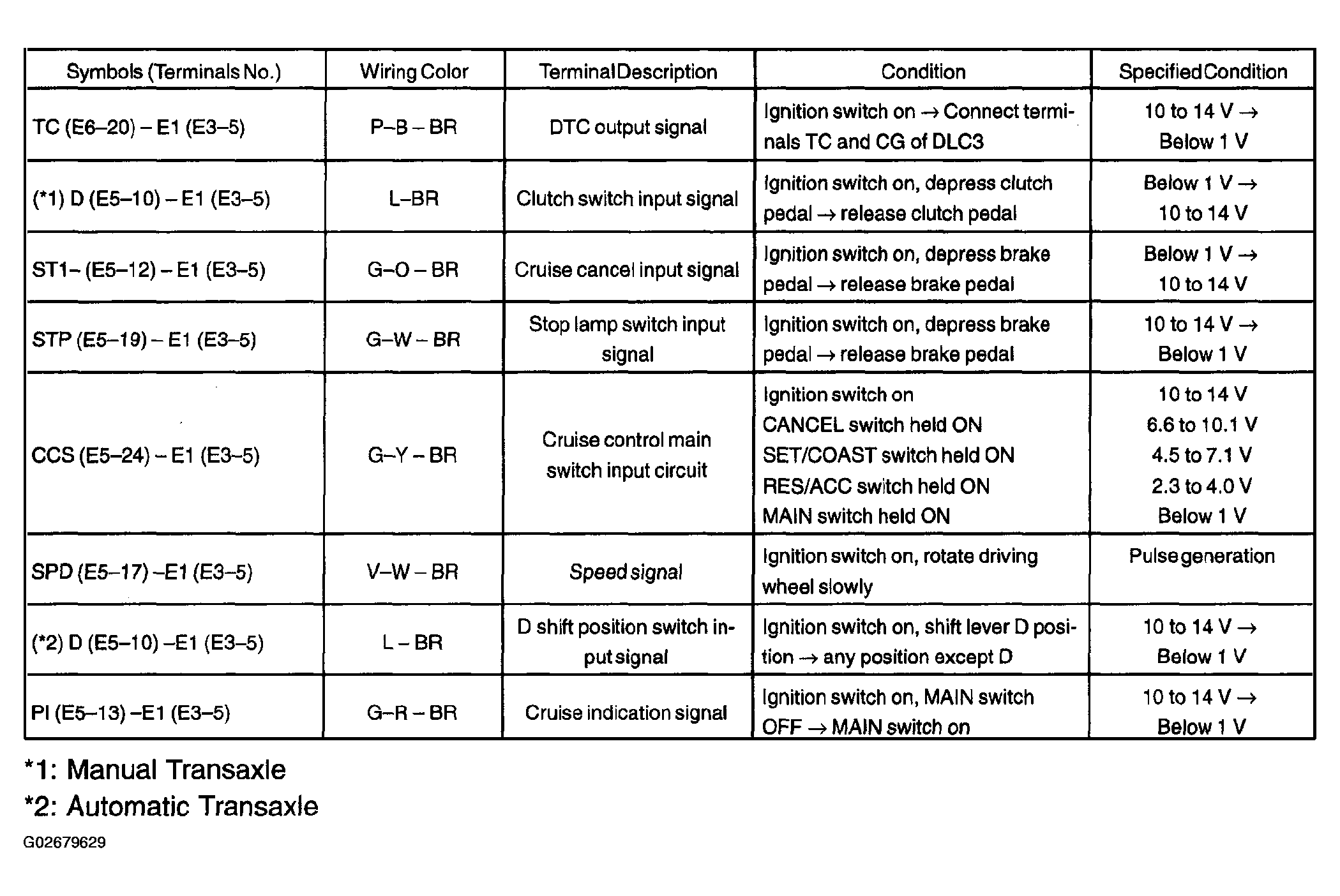

Fig 2: ECM Terminals Voltage Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
