Pattern Select Switch Circuit (2nd Start Switch): Wiring Diagram

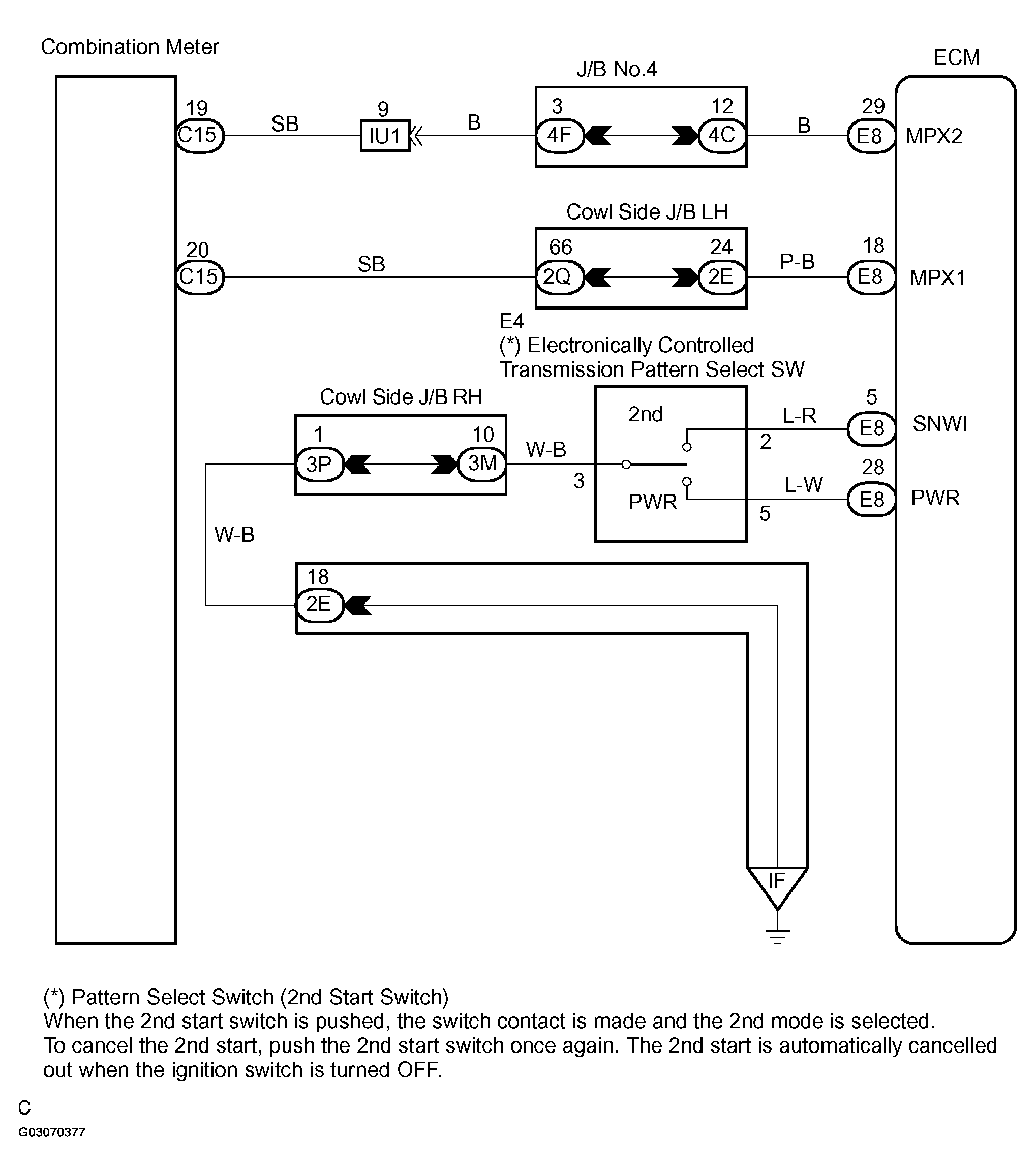

Fig 1: Pattern Select Switch Circuit (2nd Start Switch) Wiring Diagram

G03070377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
