How To Proceed With Troubleshooting

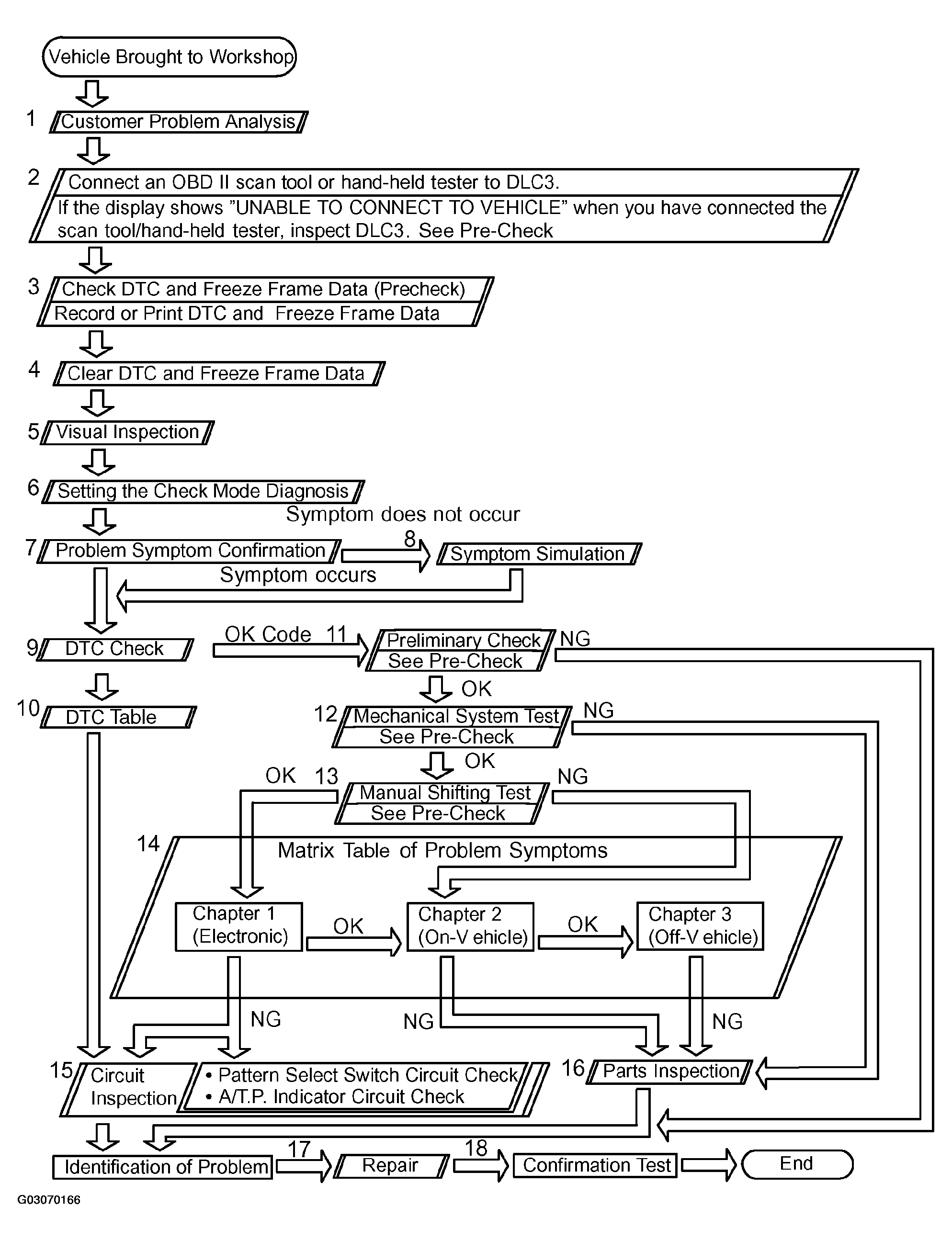

Fig 1: Automatic Transmission Troubleshooting Flow Chart

G03070166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
