Typical Enabling Conditions

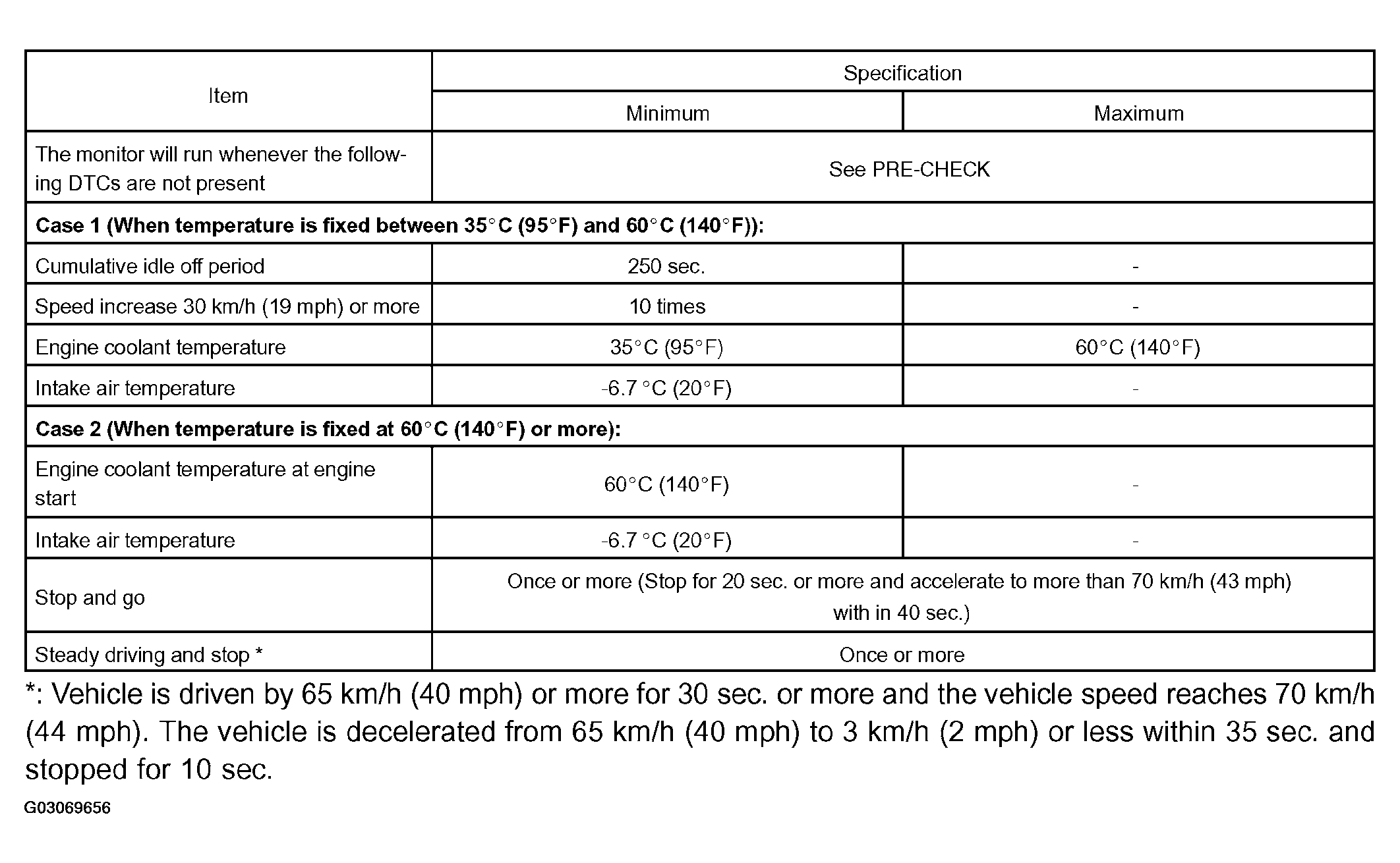

Fig 1: Typical Enabling Conditions Specification Table
G03069656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
