Monitor Strategy

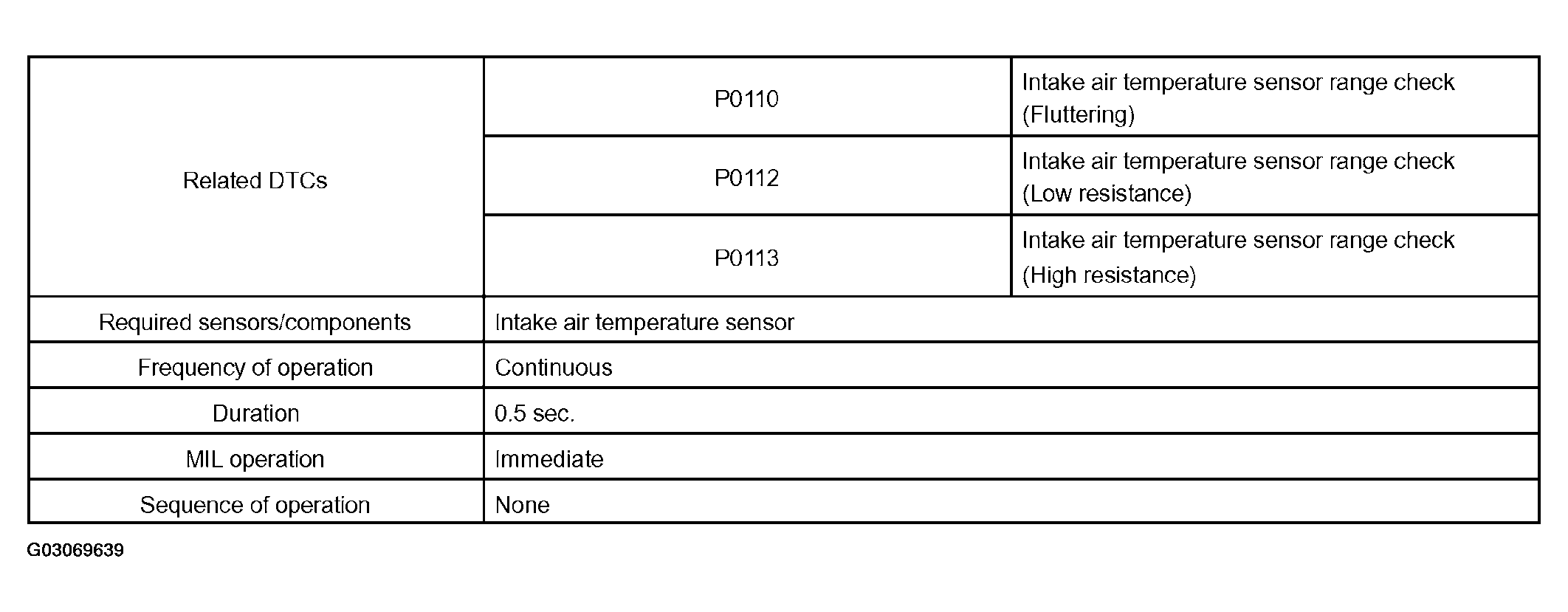

Fig 1: Monitor Strategy Specification Table

G03069639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
