Oil Cooler: Components

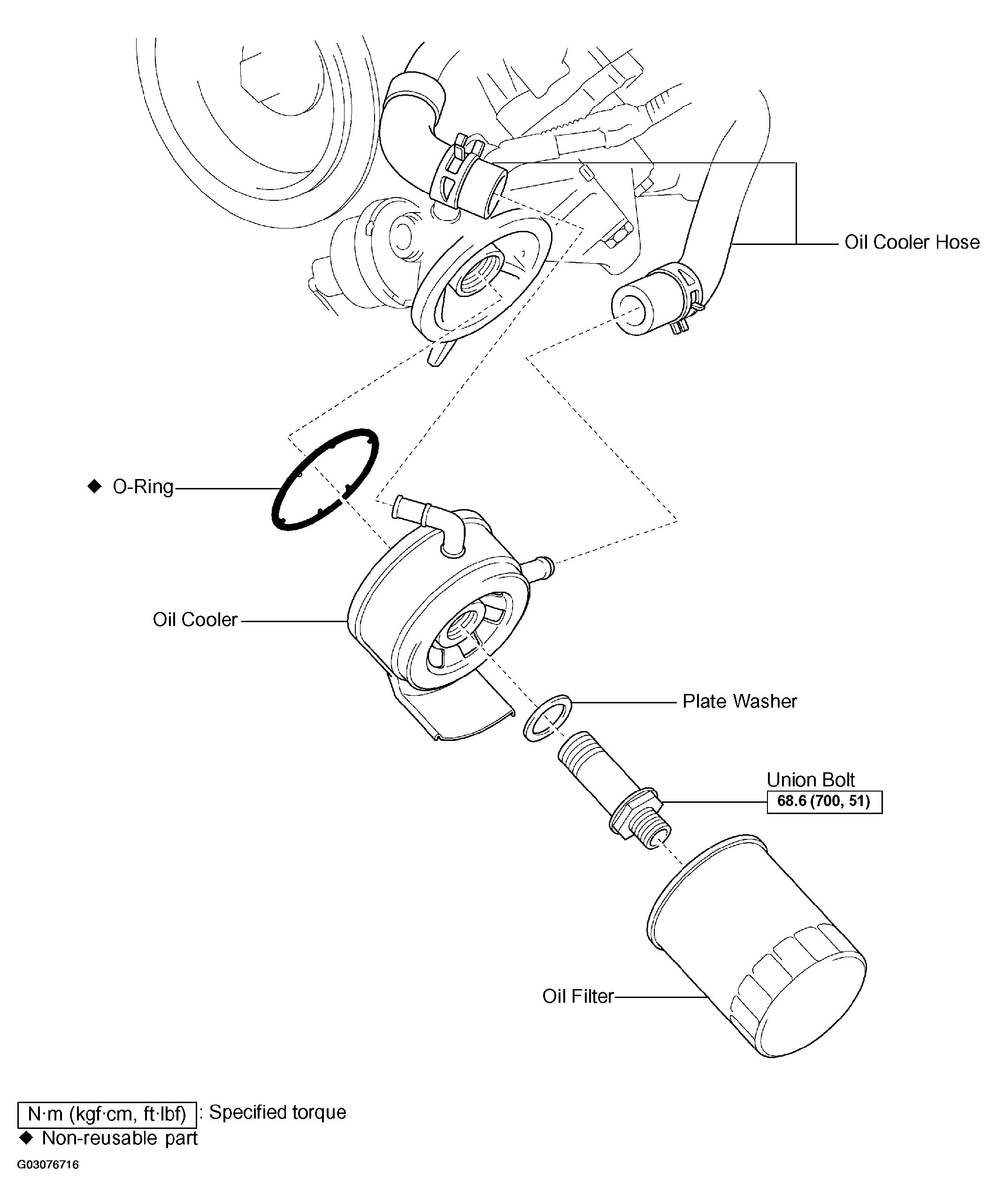

Fig 1: Oil Cooler Replacement Components With Torque Specifications

G03076716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
