Overhead Junction Block: Circuit

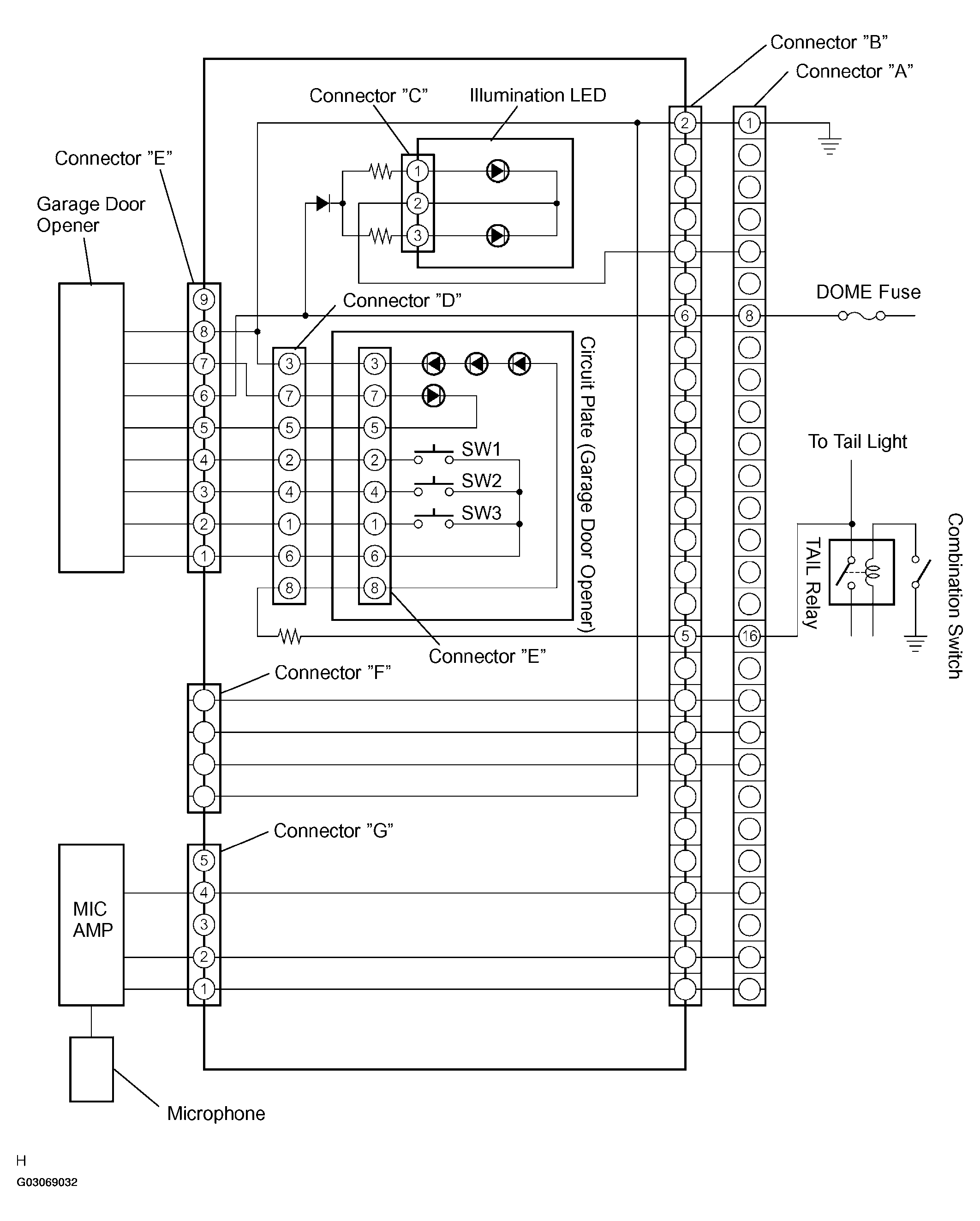

Fig 1: Overhead Junction Block Circuit

G03069032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
