Cruise Control System - Diagnostics
>>
Terminals Of ECM
Terminals Of ECM

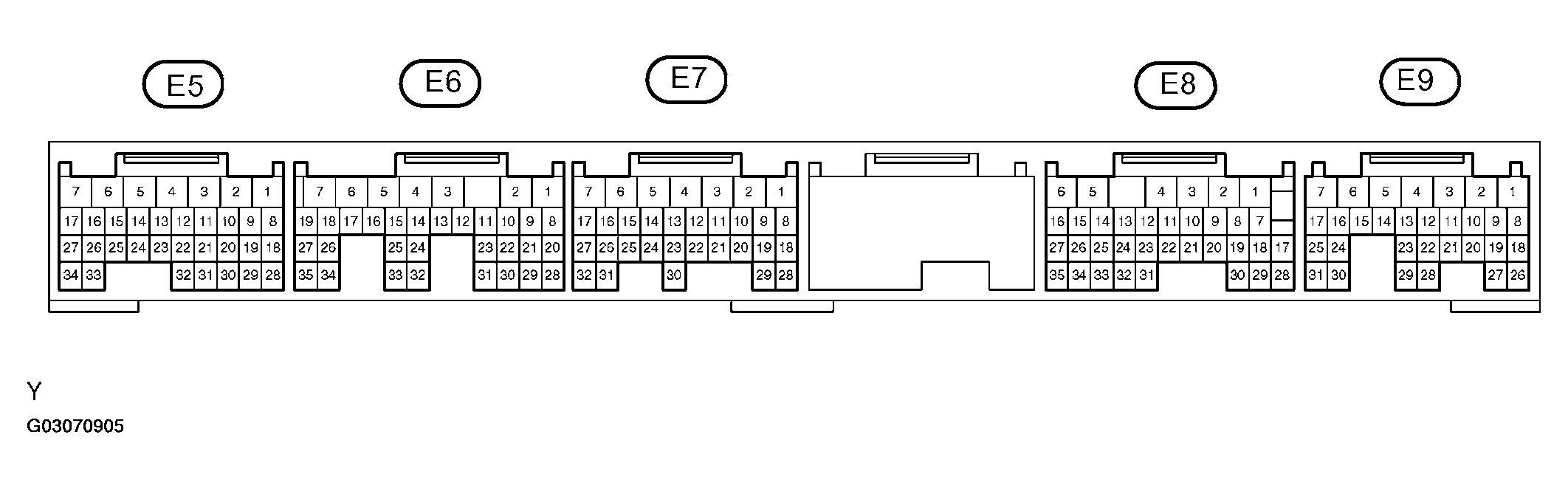

Fig 1: Terminals Of ECM Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

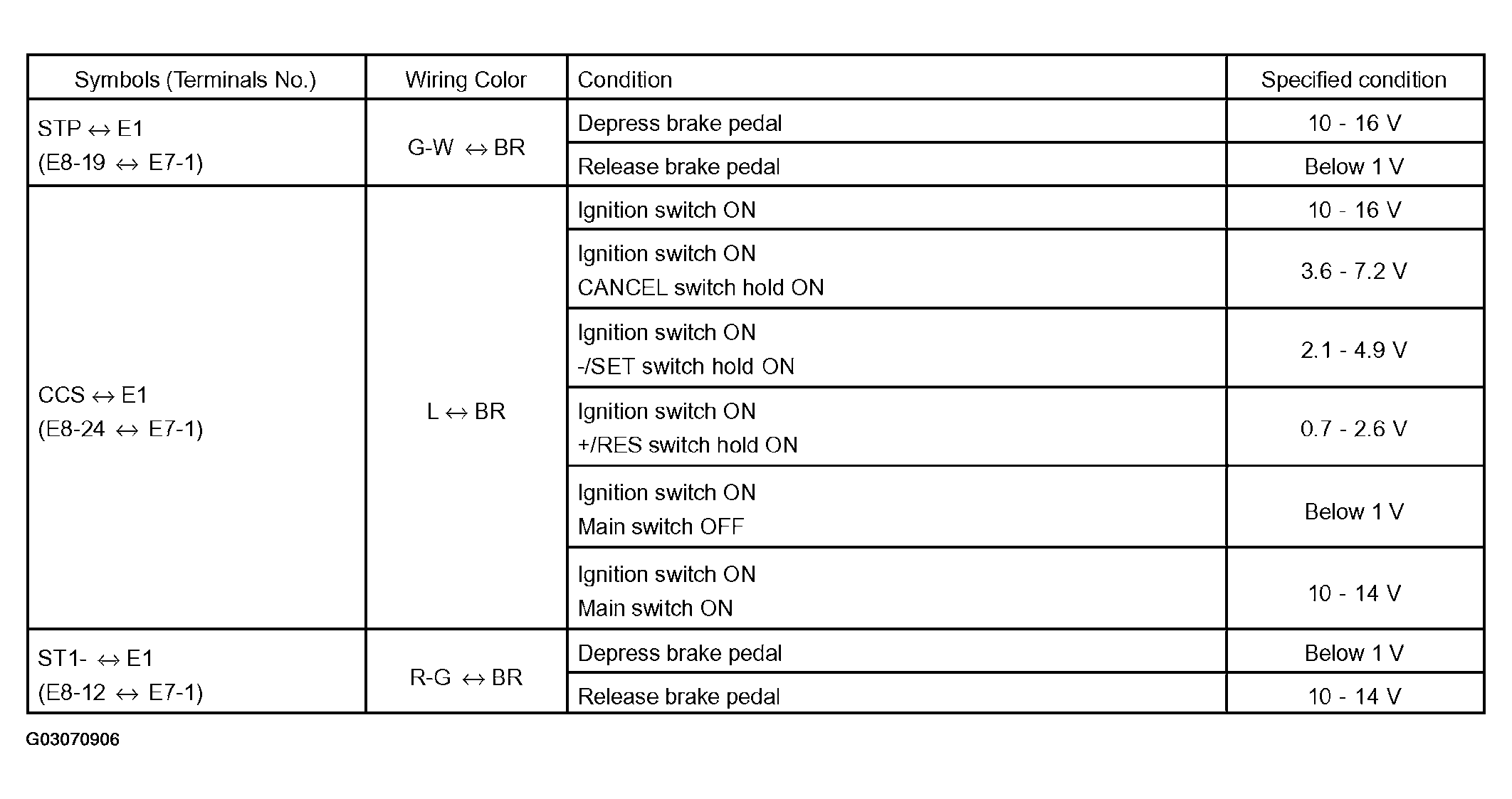

Fig 2: Terminal Wiring Color Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
