Generator ASSY (3MZ-FE): Components

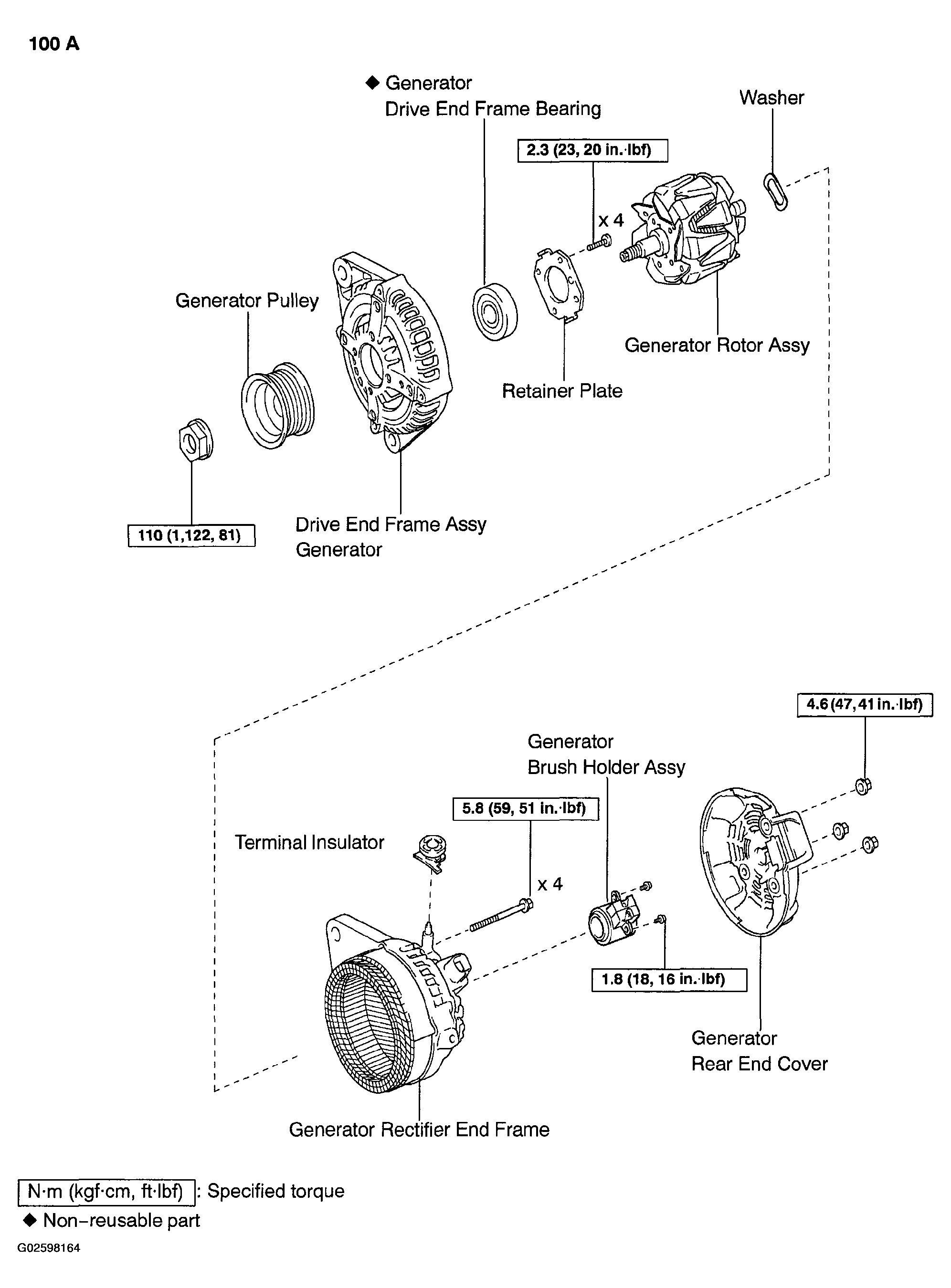

Fig 1: Generator Assy Replacement Components (3MZ-FE) And Torque Specifications (1 Of 2)
G02598164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

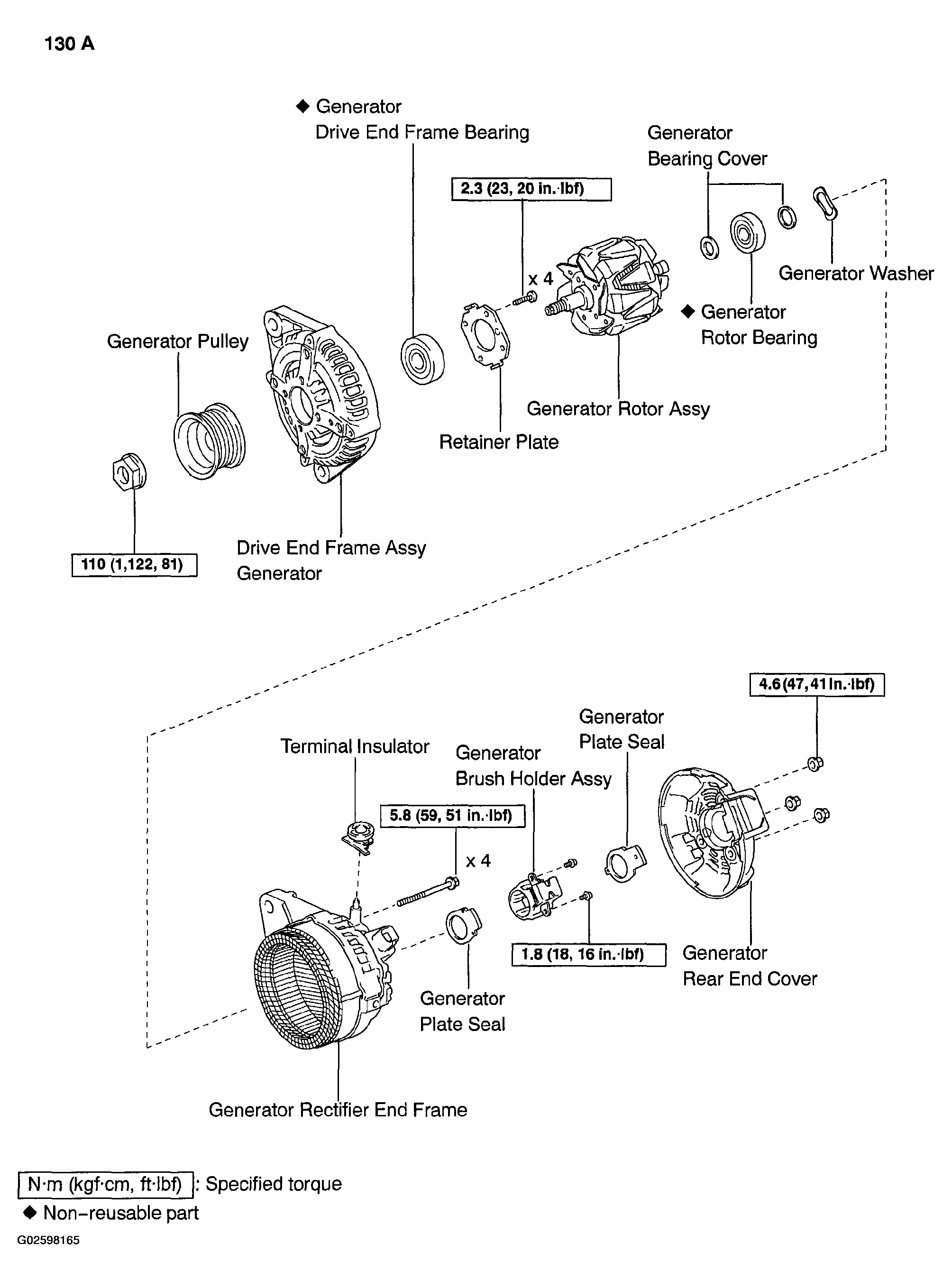

Fig 2: Generator Assy Replacement Components (3MZ-FE) And Torque Specifications (2 Of 2)
G02598165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
