Terminals Of ECM

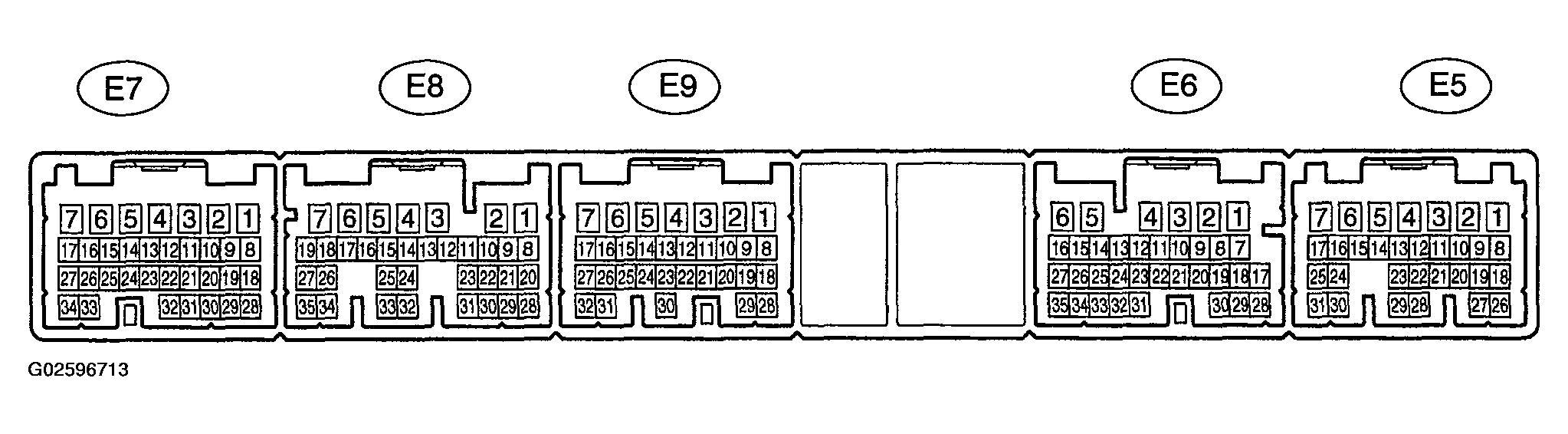

Fig 1: Identifying ECM Connector Terminals
G02596713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

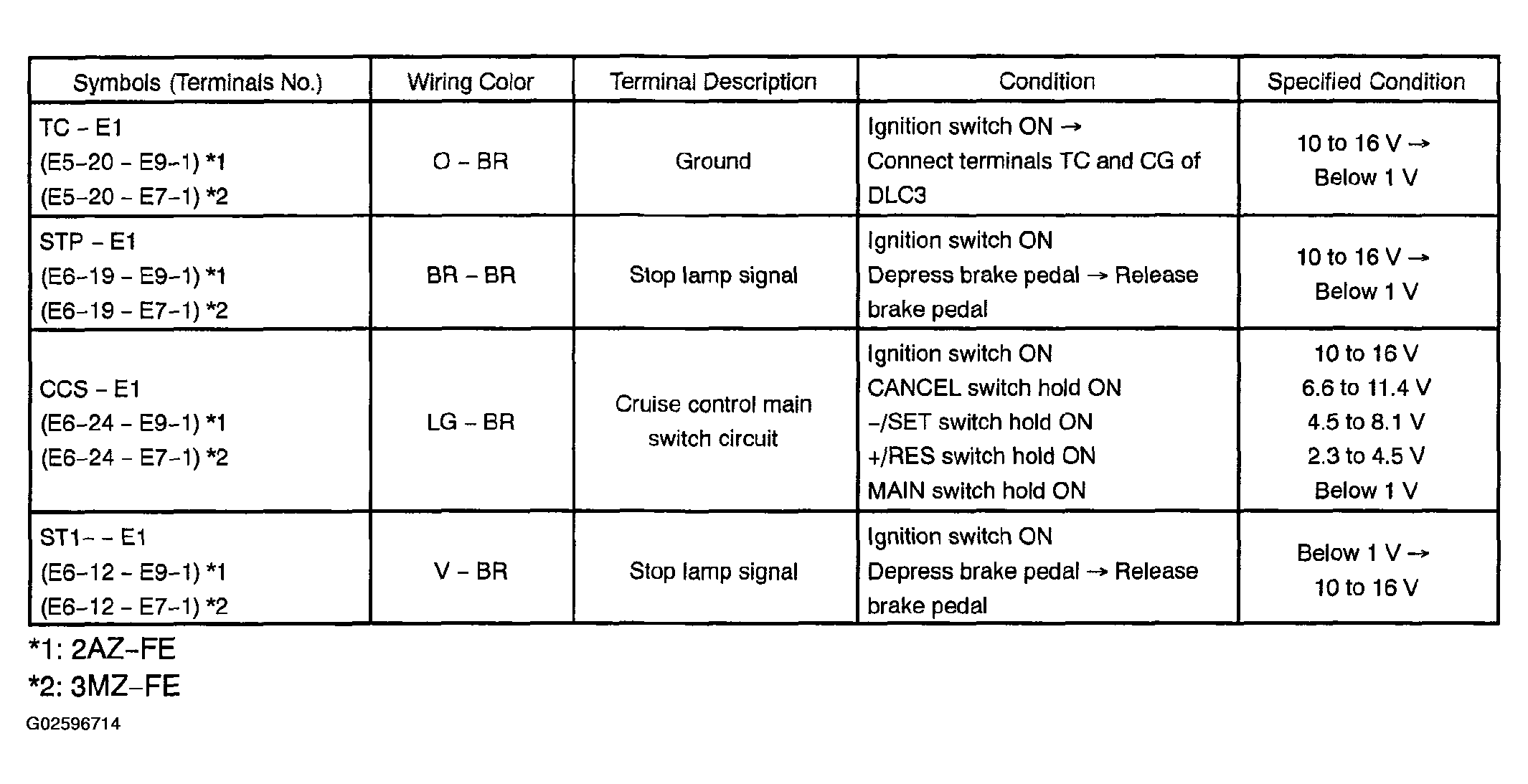

Fig 2: ECM Connector Terminals Reference Table
G02596714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
