Inspection Procedure
- READ VALUE OF HAND HELD TESTER
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch to the ON position.
- According to the display on the tester, read the "DATA LIST".
ECM:
HAND HELD TESTER READ VALUE CHARTItem Measurement Item/Display (Range) Normal Condition Diagnostic Note MAIN SW (MAIN) Main SW signal (Main CPU) / ON or OFF ON: Main SW ON (Pushed on) OFF Main SW OFF (Pushed off) - MAIN SW (SUB) Main SW signal (Sub CPU) / ON or OFF ON: Main SW ON (Pushed on) OFF Main SW OFF (Pushed off) - CANCEL SW CANCEL SW signal / ON or OFF ON: CANCEL SW ON OFF: CANCEL SW OFF - SET/COAST SW -/SET SW signal / ON or OFF ON: -/SET SW ON OFF: -/SET SW OFF - RES/ACC SW +/RES SW signal / ON or OFF ON: +/RES SW ON OFF: +/RES OFF - - OK: When cruise control main switch operation is performed, the standard values will be above.
RESULTOK A NG (All items are defective.) B NG (One to four items are defective.) C - B: Go to step 2
- C: REPLACE CRUISE CONTROL MAIN SWITCH (SEE CRUISE CONTROL MAIN SWITCH )
- A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )

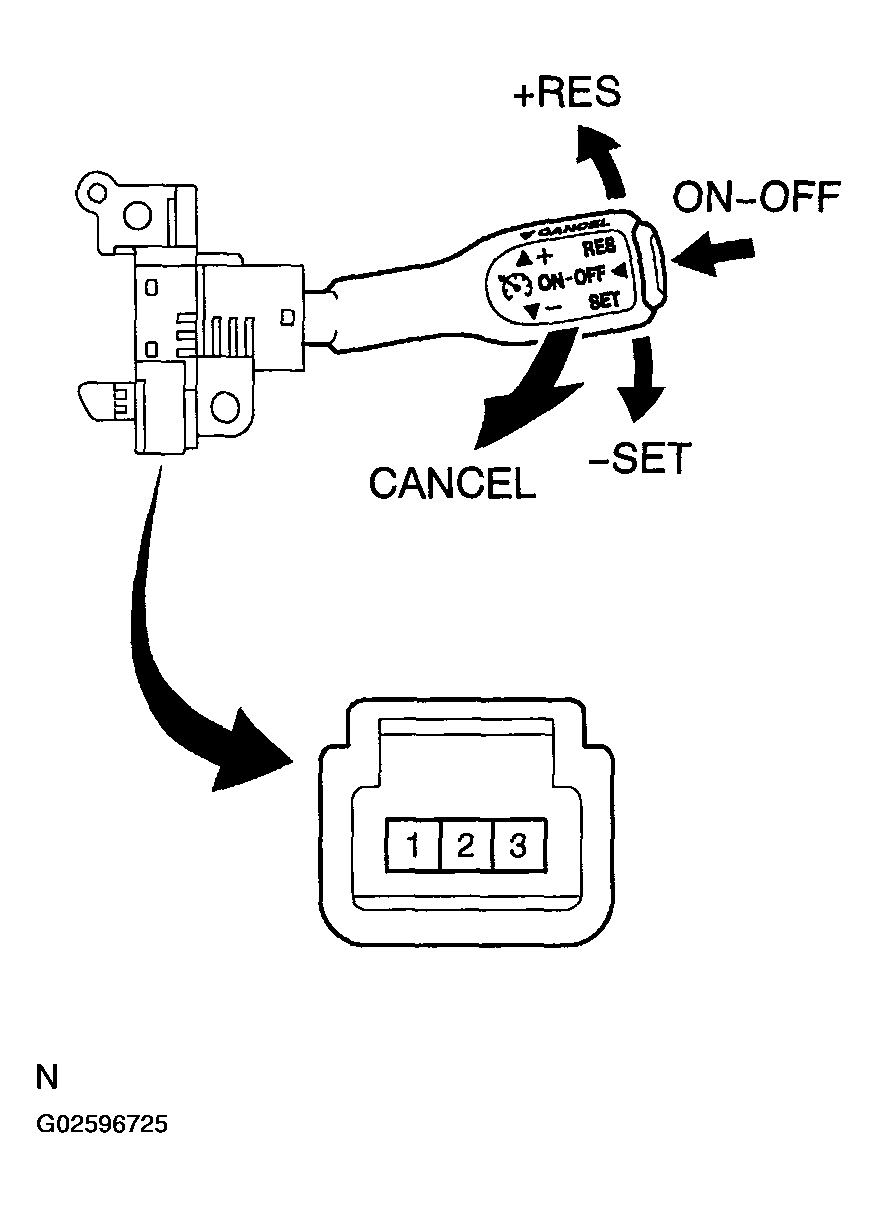

- INSPECT CRUISE CONTROL MAIN SWITCH
- Disconnect the cruise control main switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
RESISTANCE CHECK SPECIFIED CONDITIONSwitch condition Tester connection Resistance (Ω) Neutral 1 - 3 Ω (No continuity) +/RES 1 - 3 210 to 270 -/SET 1 - 3 560 to 700 CANCEL 1 - 3 1,380 to 1,700 Main Switch OFF 1 - 3 10 kΩ or higher Main Switch ON 1 - 3 1 Ω or less
- NG: REPLACE CRUISE CONTROL MAIN SWITCH (SEE CRUISE CONTROL MAIN SWITCH )
- OK: Go To Next Step

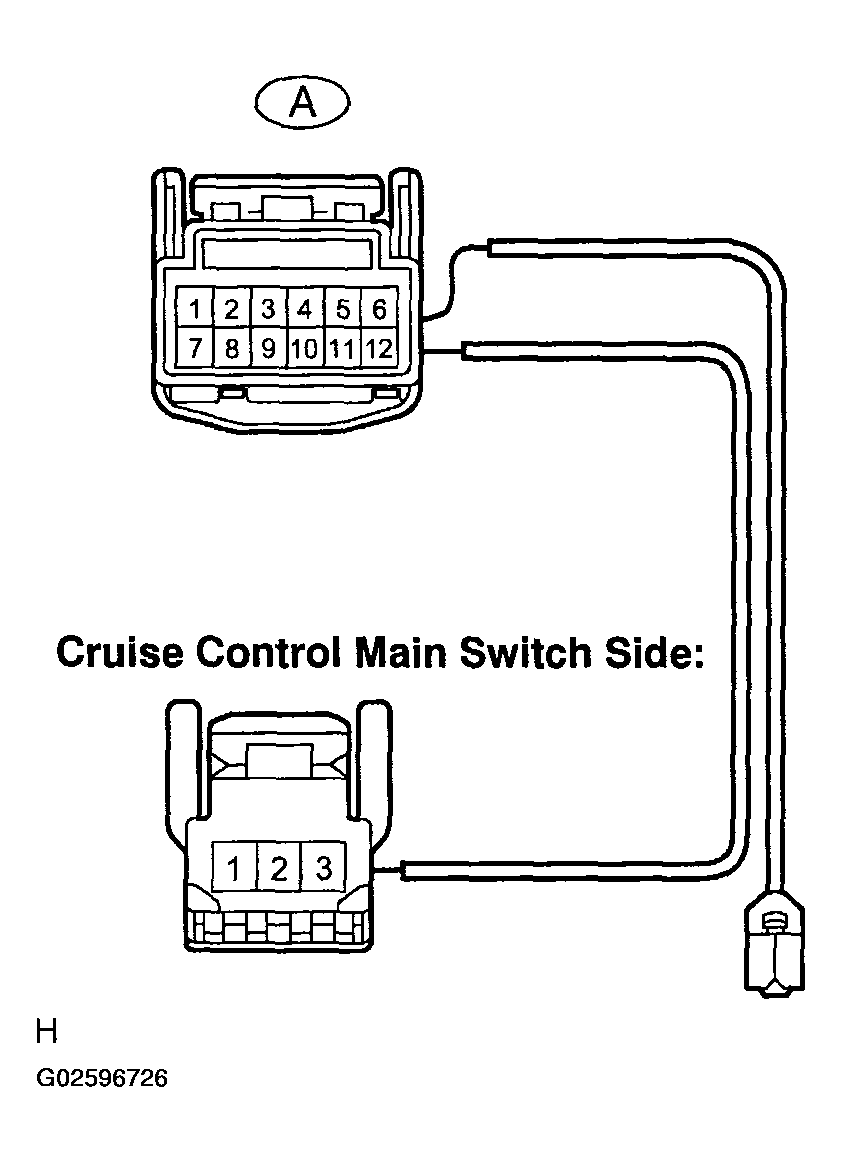

- CHECK HARNESS AND CONNECTOR (CRUISE CONTROL MAIN SWITCH - SPIRAL CABLE SUB-ASSY)
- Disconnect the spiral cable connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
RESISTANCE CHECK SPECIFIED CONDITIONTester connection Specification 1 - A-5 Below 1 Ω 3 - A-4 Below 1 Ω
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: Go To Next Step

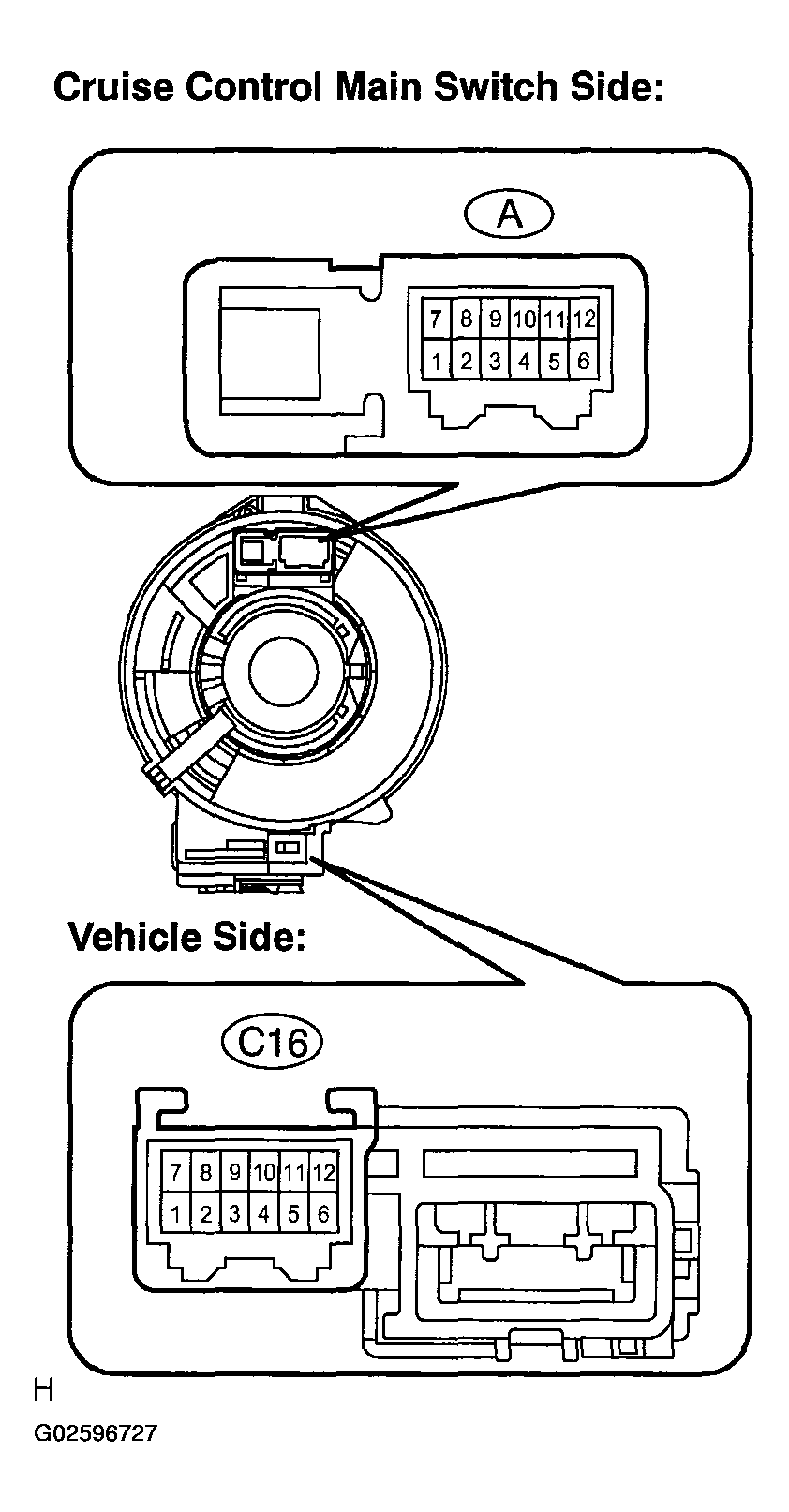

- INSPECT SPIRAL CABLE SUB-ASSY
- Disconnect the spiral cable vehicle side connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
RESISTANCE CHECK SPECIFIED CONDITIONTester connection Specification A-4 - C16-4 Below 1 Ω A-5 - C16-5 Below 1 Ω
- NG: REPLACE SPIRAL CABLE SUB-ASSY (SEE SPIRAL CABLE SUB-ASSY )
- OK: Go To Next Step

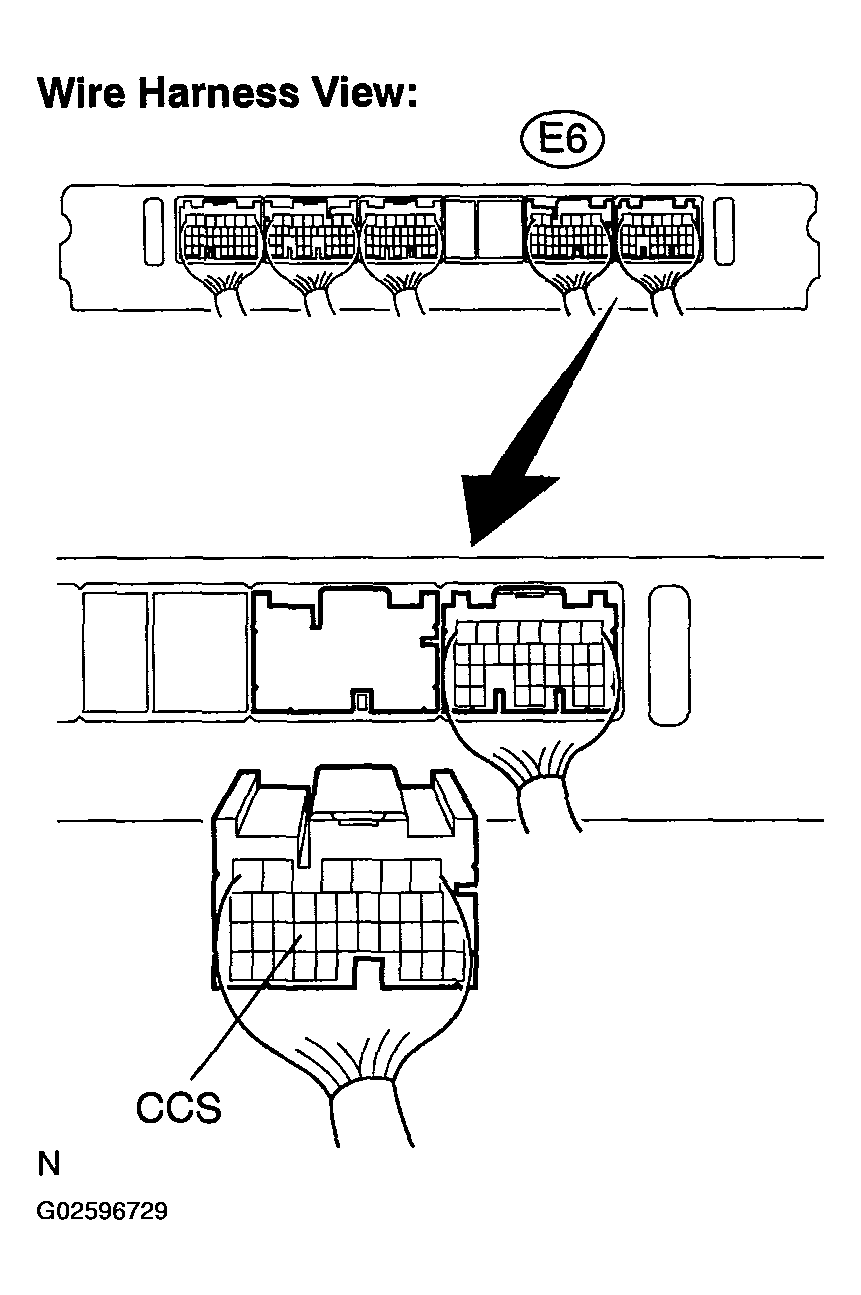

- CHECK HARNESS AND CONNECTOR
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
RESISTANCE CHECK SPECIFIED CONDITIONTester connection Condition Specification Spiral cable (C16-5) - CCS (E6-24) Always Below 1 Ω CCS (E6-24) - Body ground Always 10 kΩ or higher Spiral cable (C16-4) - Body ground Always Below 1 Ω
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: REPLACE ECM (SEE ECM (3MZ-FE) )
