Vehicle Lift And Support Locations

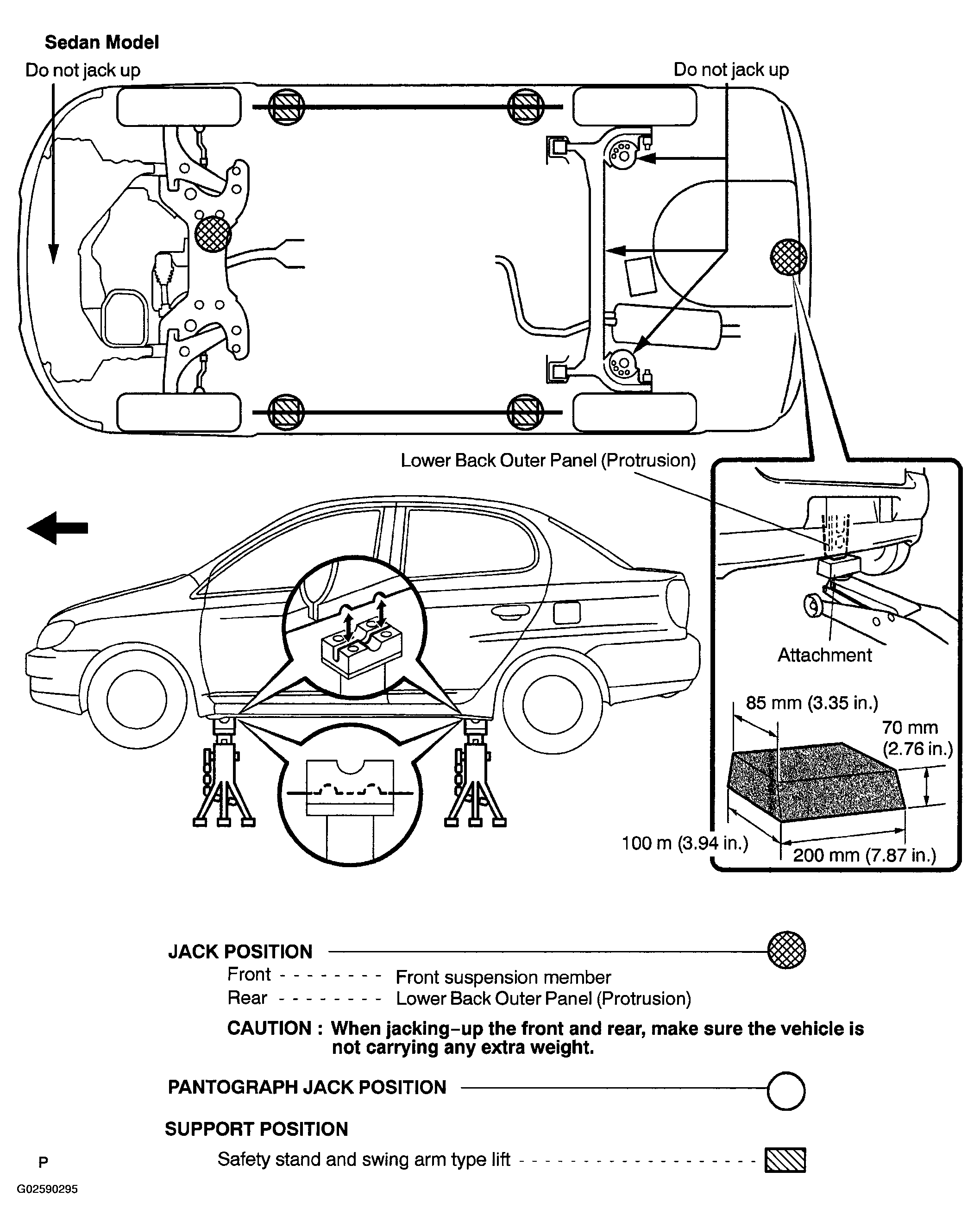

Fig 1: Identifying Vehicle Lift And Support Locations (1 Of 4)
G02590295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

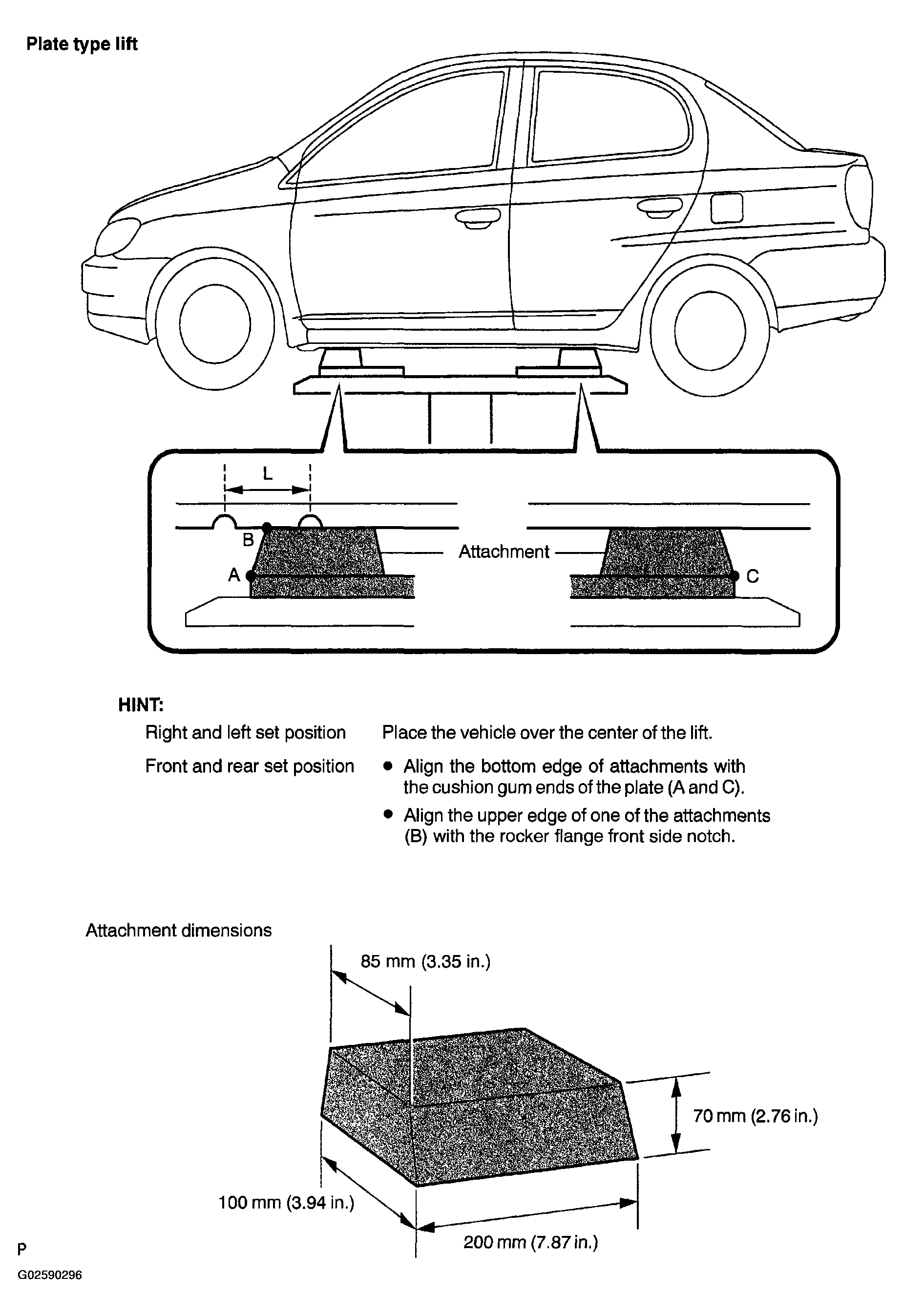

Fig 2: Identifying Vehicle Lift And Support Locations (2 Of 4)
G02590296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

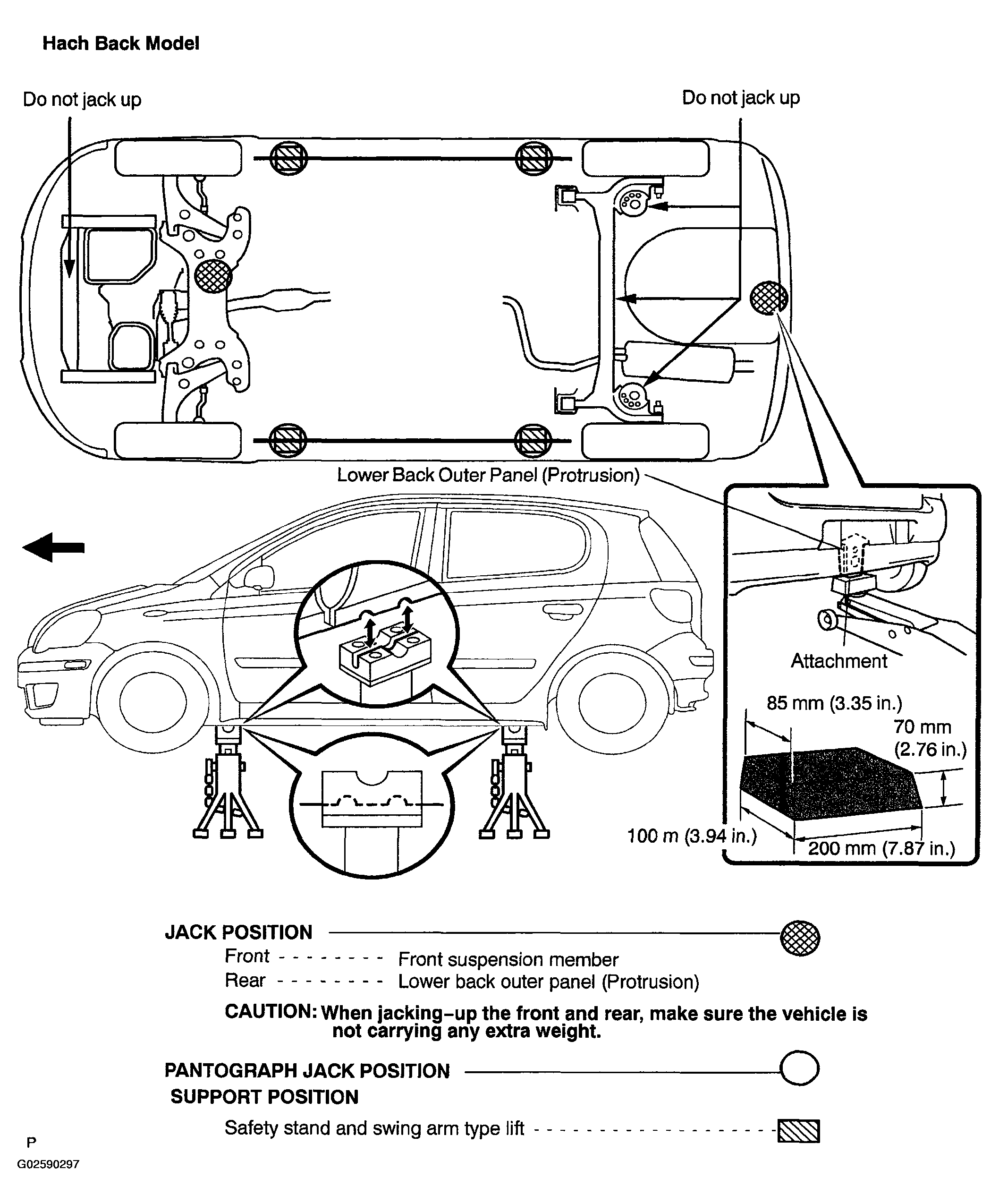

Fig 3: Identifying Vehicle Lift And Support Locations (3 Of 4)
G02590297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

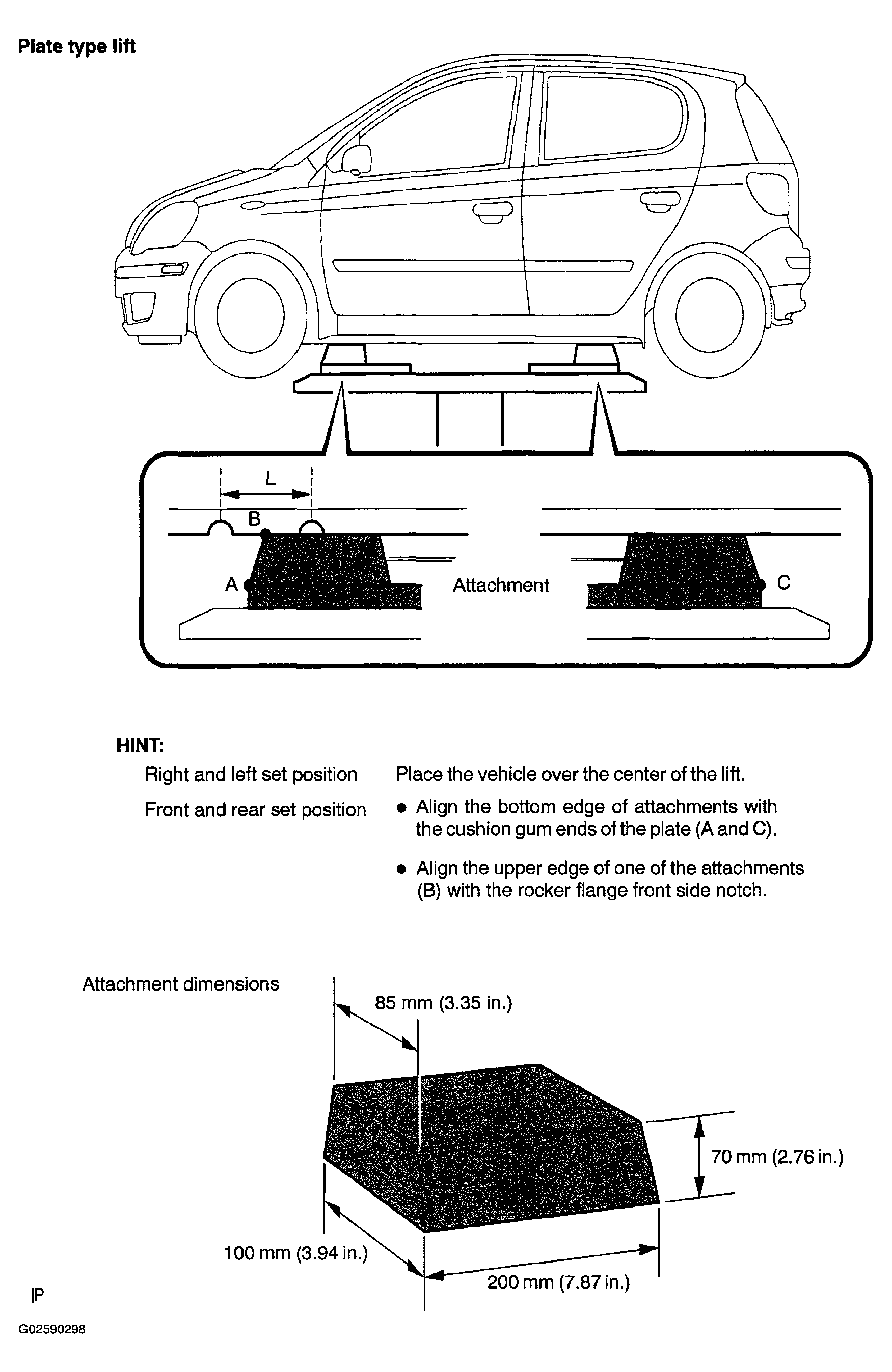

Fig 4: Identifying Vehicle Lift And Support Locations (4 Of 4)
G02590298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
