Stop Light Switch Circuit: Wiring Diagram

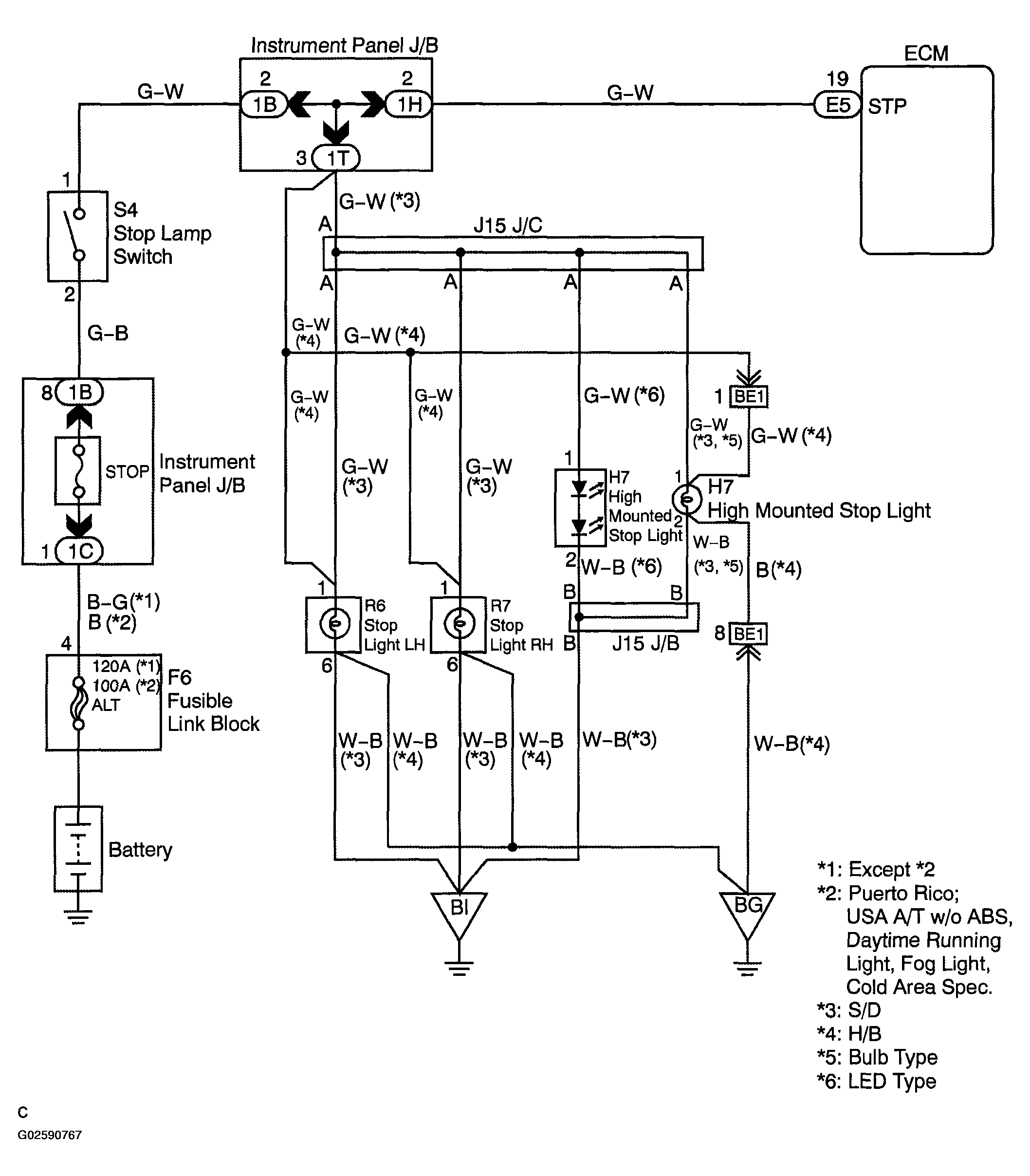

Fig 1: Stop Light Switch Wiring Diagram
G02590767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

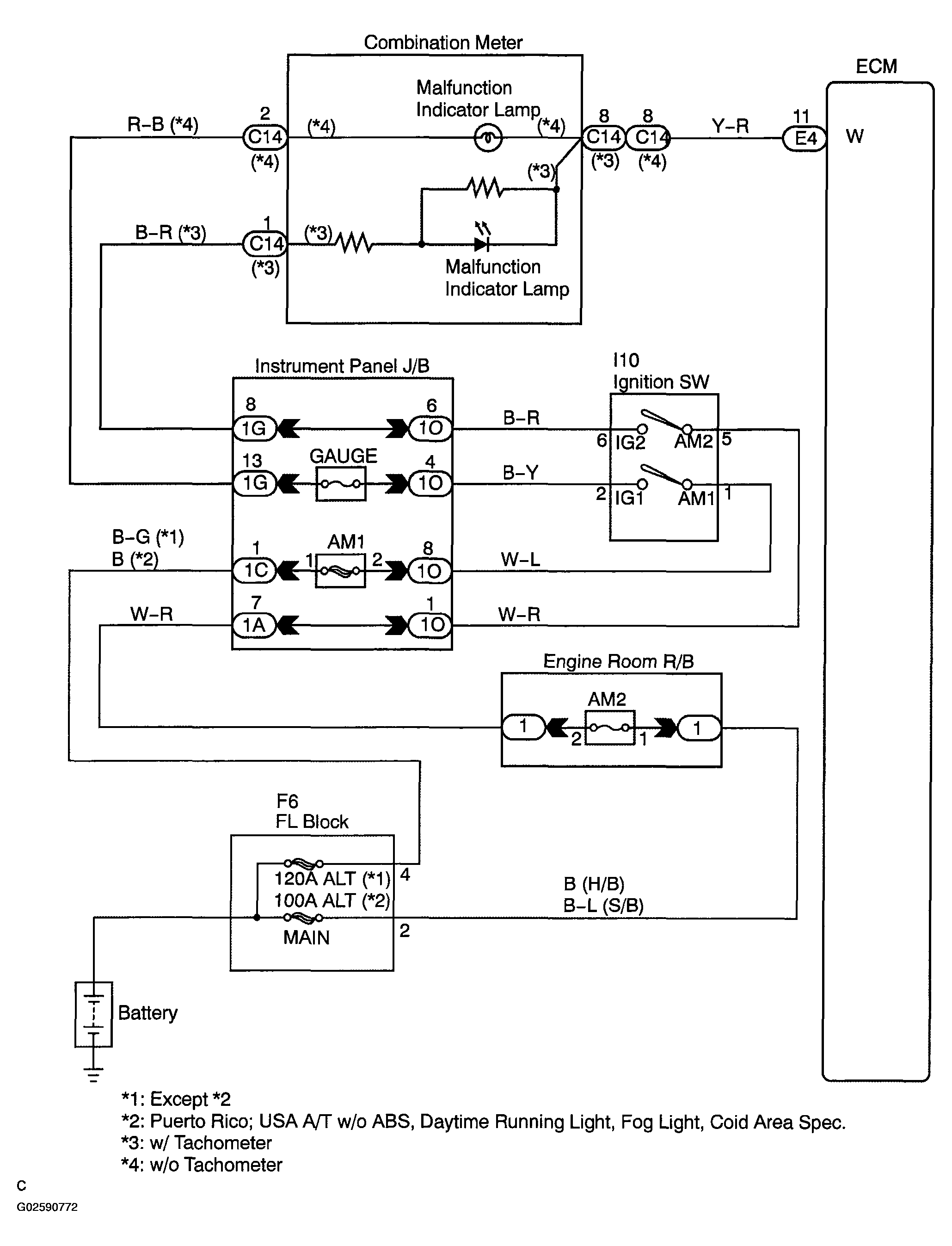

Fig 1: Malfunction Indicator Lamp Wiring Diagram
G02590772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
