Fuel Pump Control Circuit: Wiring Diagram

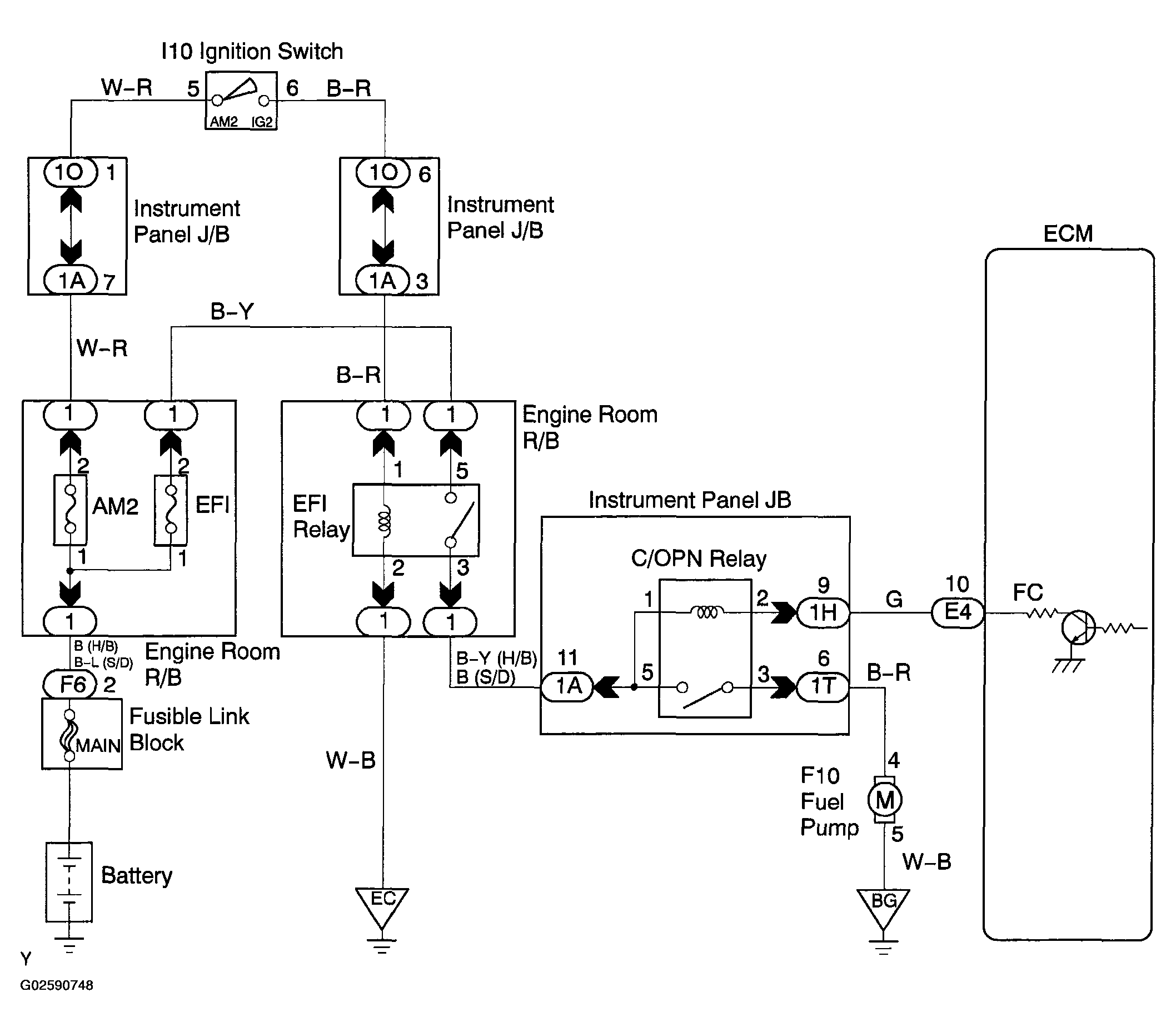

Fig 1: Fuel Pump Control Wiring Diagram

G02590748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
