Home
>>
Toyota
>>
2005
>>
ECHO 2D Sedan, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine - Diagnostics
>>
Circuit Inspection
>>
DTC P0101: Mass or Volume Air Flow Circuit Range/ Performance Problem
>>
Circuit Description
Circuit Description
Refer to
DTC P0100, P0102, P0103: Mass or Volume Air Flow Circuit Low/High Input
.

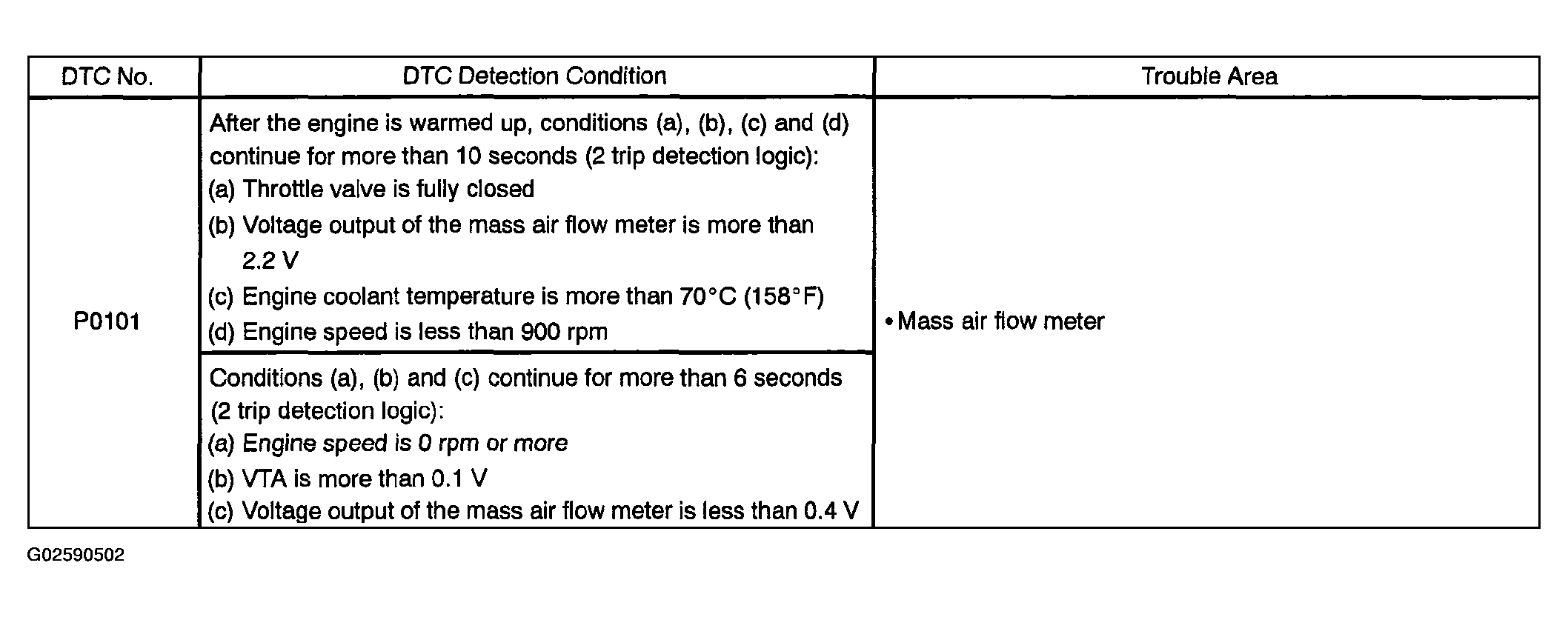

Fig 1: DTC Detecting Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
