Waveform 12

Terminal SIL of DLC3

OSCILLOSCOPE WAVEFORM SIGNAL

ECM Terminal Names Between SIL and E1
Tester Ranges 5 V/DIV, 1 msec./DIV
Conditions Connect hand-held tester or OBDII scan tool to DLC3

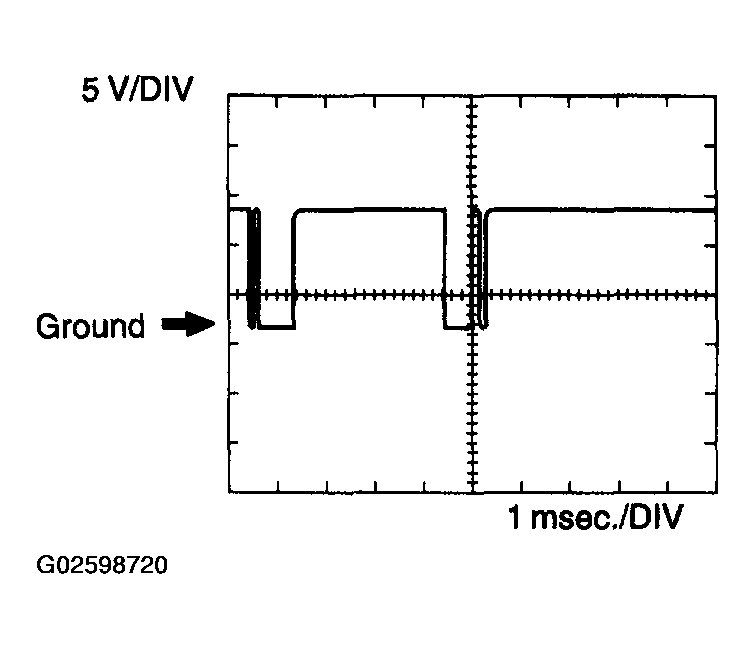

Fig 1: Airbag Sensor Assembly - Waveform Graph
G02598720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
