Inspection Procedure

  1. INSPECT FUSE (P/W NO. 2)
    1. Remove the P/W NO. 2 fuse from the instrument panel J/B.
    2. Measure the resistance of the fuse.

    Standard: Below 1 Ω

    NG: REPLACE FUSE

    OK: Go to next step.

  2. CHECK POWER WINDOW REGULATOR SWITCH ASSY (B VOLTAGE)
    1. Disconnect the P9 regulator switch connector.
    2. Measure the voltage of the wire harness side connector.
      Fig 1: Checking Power Window Regulator Switch Assy (B Voltage)
      G02595667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    VOLTAGE CHECK SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    P9-4 (B) - Body ground Ignition switch ON 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B ASSY - POWER WINDOW REGULATOR SWITCH)

    OK: Go to next step.

  3. INSPECT POWER WINDOW REGULATOR SWITCH ASSY (SWITCH OPERATION)
    1. Disconnect the P9 switch connector.
    2. Measure the resistance of the switch when the switch is operated.

    Standard:

    RESISTANCE CHECK SPECIFIED CONDITION

    Tester Connection Switch Condition Specified Condition
    1 (D) - 2 (SD) 3 (U) - 4 (B) UP Below 1 Ω
    1 (D) - 2 (SD) 3 (U) - 5 (SU) OFF Below 1 Ω
    1 (D) - 4 (B) 3 (U) - 5 (SU) DOWN Below 1 Ω
    Fig 2: Inspecting Power Window Regulator Switch Assy (Switch Operation)
    G02595668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY

    OK: Go to next step.

  4. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY - POWER WINDOW REGULATOR MASTER SWITCH ASSY)
    1. Disconnect the P9 switch connector.
    2. Disconnect the D8 master switch connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    P9-2 (SD)-D8-17 (D) Below 1 Ω
    P9-5 (SU)-D8-15 (U) Below 1 Ω
    P9-2 (SD) or D8-17 (D) - Body ground 10 kΩ or higher
    P9-5 (SU) or D8-15 (U) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK

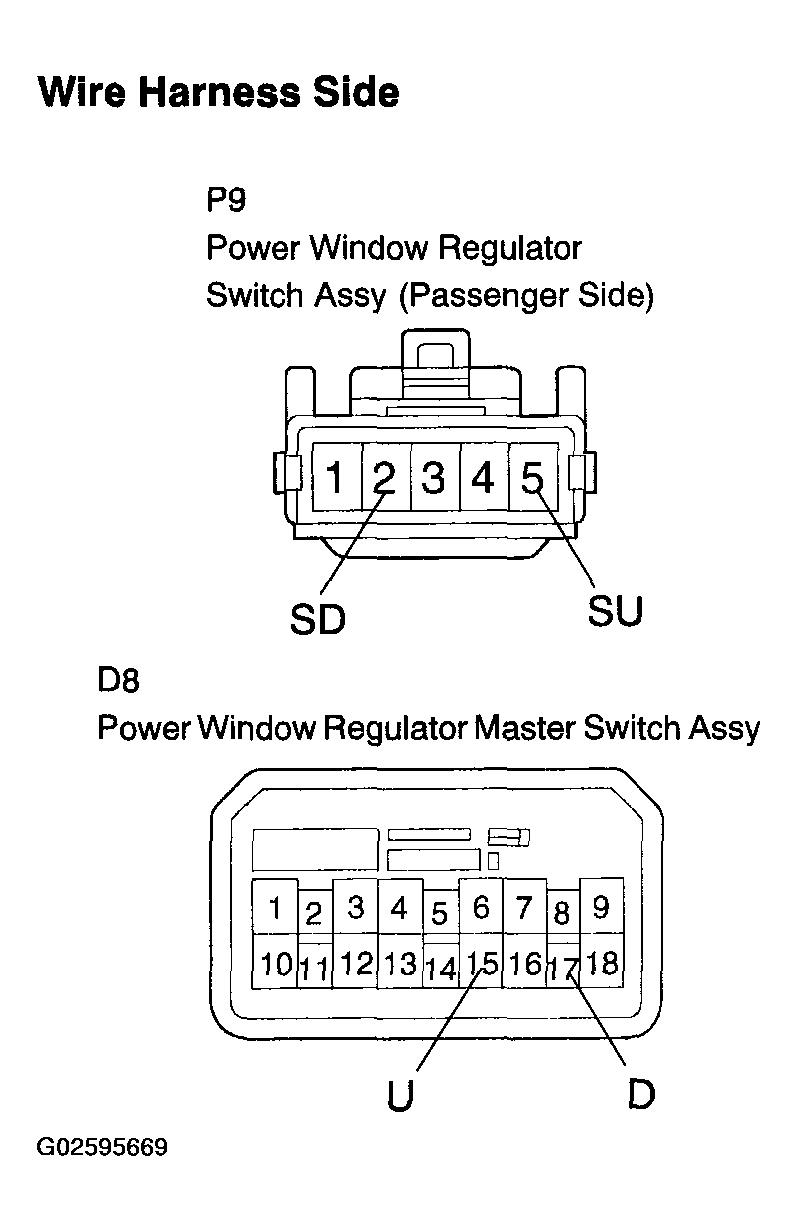

    Fig 3: Checking Wire Harness (Power Window Regulator Switch Assy - Power Window Regulator Master Switch Assy)
    G02595669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (PASSENGER SIDE)
    1. Disconnect the D8 master switch connector.
    2. Measure the resistance of the switch when the switch is operated.
      Fig 4: Inspecting Power Window Regulator Master Switch Assy (Passenger Side)
      G02595670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    RESISTANCE CHECK SPECIFIED CONDITION

    Window Look Switch Condition Power Window Switch Condition Tester Connection Specified Condition
    OFF UP 1 (E) - 17 (D) 7 (IG)-15 (U) Below 1 Ω
    OFF OFF 1 (E) - 17 (D) 1 (E)-15 (U) Below 1 Ω
    OFF DOWN 1 (E) - 15 (U) 7 (IG)-17 (D) Below 1 Ω
    ON UP 7 (IG) - 15 (U) Below 1 Ω
    ON OFF 15 (U) - 17 (D) Below 1 Ω
    ON DOWN 7 (IG) - 17 (D) Below 1 Ω

    NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

    OK: Go to next step.

  6. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY - CONVERTIBLE ROOF CONTROL ECU)
    1. Disconnect the P9 switch connector.
    2. Disconnect the C19 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    P9-1 (D)-C19-8 (PSM) Below 1 Ω
    P9-3 (U)-C19-7 (PPSU) Below 1 Ω
    P9-1 (D) or C19-8 (PSM) - Body ground 10 kΩ or higher
    P9-3 (U) or C19-7 (PPSU) - Body ground 10 kΩ or higher

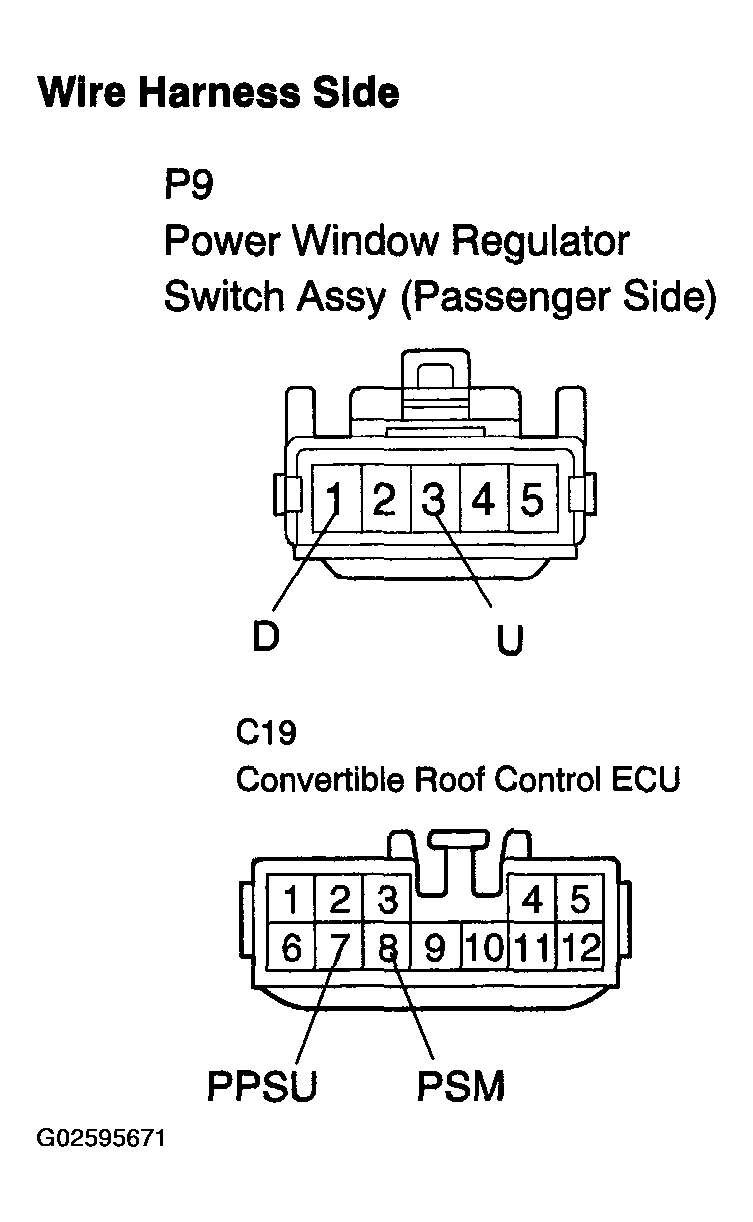

    Fig 5: Checking Wire Harness (Power Window Regulator Switch Assy - Convertible Roof Control ECU)
    G02595671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step.

  7. INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH FRONT
    1. Apply battery voltage to connector terminals 1 and 2.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
    2. Check that the motor smoothly rotates.

    OK:

    POWER WINDOW REGULATOR MOTOR OPERATION CHECK

    Measurement Condition Specified Condition
    Battery positive (+) --> Terminal 1 Battery negative (-) --> Terminal 2 Motor gear rotates clockwise
    Battery positive (+) --> Terminal 1 Battery negative (-) --> Terminal 2 Motor gear rotates counterclockwise

    NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH FRONT

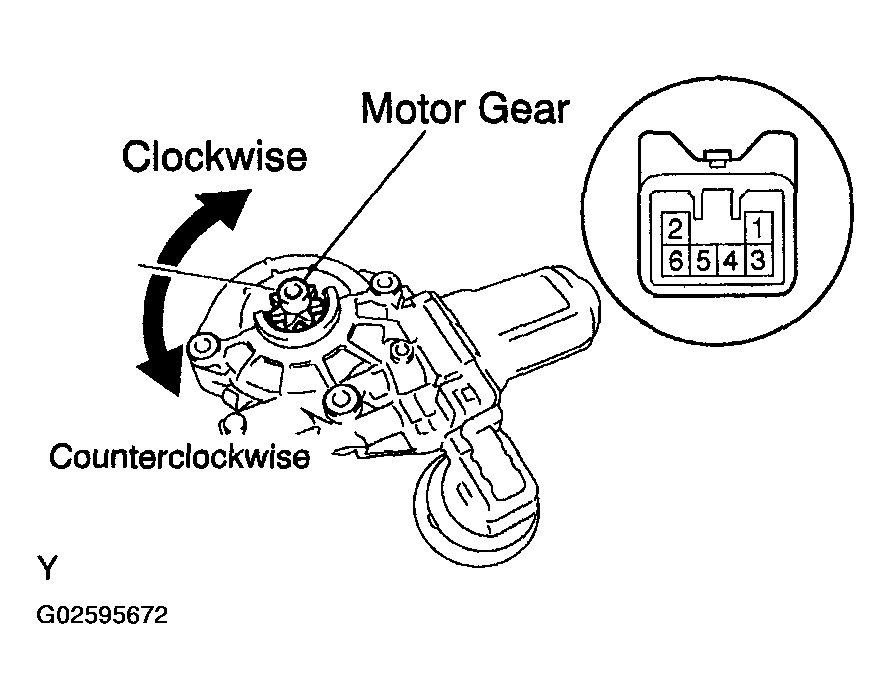

    Fig 6: Inspecting Power Window Regulator Motor Assy RH Front
    G02595672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step.

  8. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MOTOR ASSY RH - CONVERTIBLE ROOF CONTROL ECU)
    1. Disconnect the P8 motor connector.
    2. Disconnect the C19 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard:

    RESISTANCE CHECK SPECIFIED CONDITION

    Tester Connection Specified Condition
    P8-1-C19-6 (PSU) Below 1 Ω
    P9-2-C19-1 (PPSD) Below 1 Ω
    P8-1 or C19-6 (PSU) - Body ground 10 kΩ or higher
    P9-2 or C19-1 (PPSD) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK

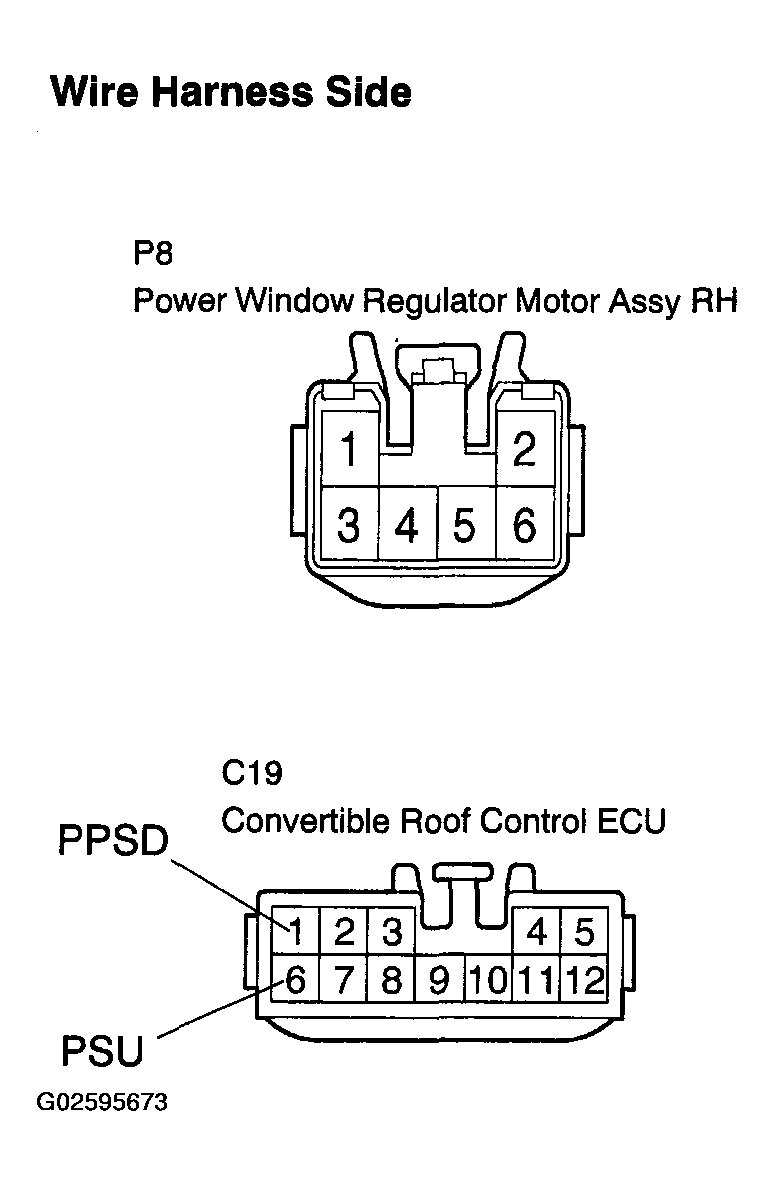

    Fig 7: Checking Wire Harness (Power Window Regulator Motor Assy RH - Convertible Roof Control ECU)
    G02595673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    REPLACE CONVERTIBLE ROOF CONTROL ECU
