Inspection Procedure

1. INSPECT FUSE (P/W NO. 2)
   1. Remove the P/W NO. 2 fuse from the instrument panel J/B.
   2. Measure the resistance of the fuse.

   Standard: Below 1 Ω

   NG: REPLACE FUSE

   OK: Go to next step.

2. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - BATTERY AND BODY GROUND)
   1. Disconnect the D8 master switch connector.
   2. Measure the voltage and resistance of the wire harness side connector.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D8-6 (BW) - Body ground	Ignition switch ON	10 to 14 V
   D8-7 (IG) - Body ground	Ignition switch ON	10 to 14 V
   D8-1 (E) - Body ground	Always	Below 1 Ω

   NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

   Fig 1: Checking Wire Harness (Power Window Regulator Master Switch Assy - Battery And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step.

3. CHECK POWER WINDOW REGULATOR MOTOR ASSY LH
   1. Disconnect the D8 master switch connector.
   2. Check operation of the power window regulator motor assy LH.

   OK:

   POWER WINDOW REGULATOR MOTOR OPERATION CHECK



   Wire Connection	Specified Condition
   D8-10 (U) - D8-6 (BW) D8-13 (D) - Body ground	Power window moves UP
   D8-10 (U) - Body ground D8-6 (BW) - D8-13 (D)	Power window moves DOWN

   NG: Go to step 4

   OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

   Fig 2: Checking Power Window Regulator Motor Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY (SWITCH OPERATION)
   1. Disconnect the D8 master switch connector.
   2. Measure the resistance of the switch when the switch is operated.

   Standard:

   RESISTANCE CHECK SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   D8-1 (E) - D8-13 (D) D8-10 (U) - D8-6 (BW)	UP	Below 1 Ω
   D8-1 (E) - D8-10 (U) D8-1 (E) - D8-13 (D)	OFF	Below 1 Ω
   D8-1 (E) - D8-10 (U) D8-6 (BW) - D8-13 (D)	DOWN	Below 1 Ω

   NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

   Fig 3: Identifying Power Window Regulator Master Switch Assy Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step.

5. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - POWER WINDOW REGULATOR MOTOR ASSY LH)

1. Disconnect the D8 master switch connector.
2. Disconnect the P7 motor connector.
3. Measure the resistance of the wire harness side connectors.

Standard:

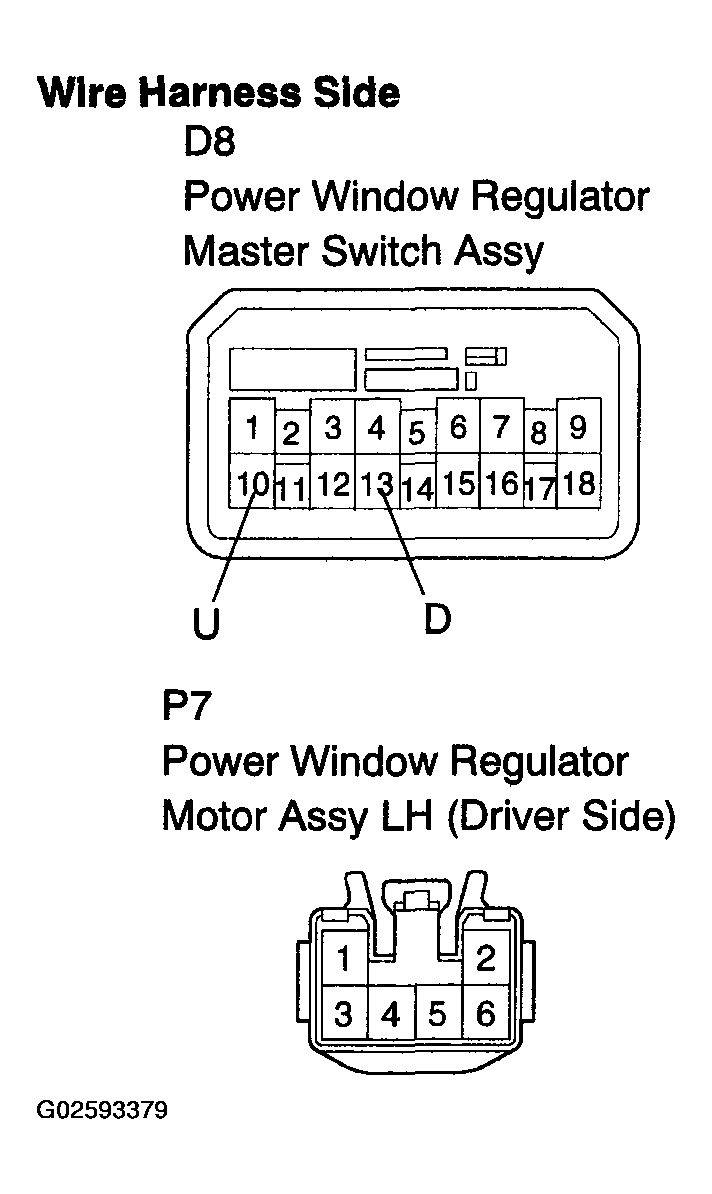

Fig 4: Checking Wire Harness (Power Window Regulator Master Switch Assy - Power Window Regulator Motor Assy LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH
