Clutch Switch ASSY: Replacement

HINT:

Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
2. REMOVE COWL SIDE TRIM SUB-ASSY LH (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PNL INSERT SUB-ASSY LWR LH (SEE  REPLACEMENT  )
5. REMOVE CLUTCH SWITCH ASSY
   1. Disconnect the connector.
   2. Loosen the nut and remove the clutch switch assy.

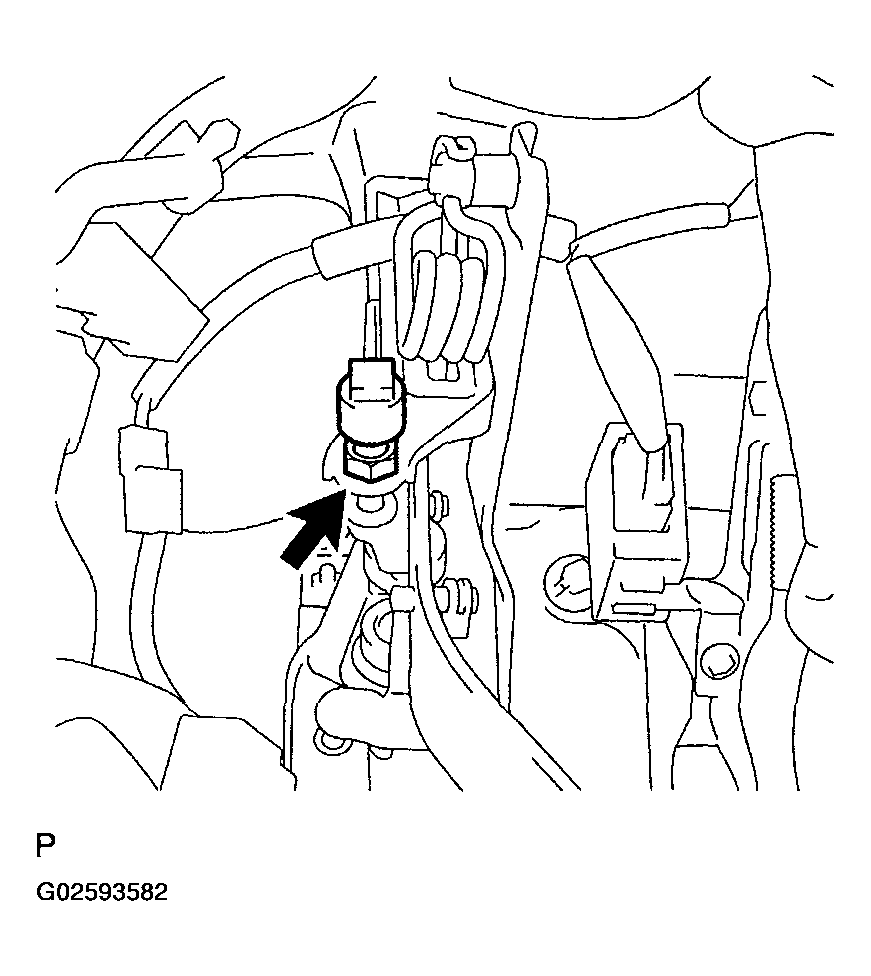

      Fig 1: Removing Nut And Clutch Switch Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
