Cruise Control Switch Circuit: Wiring Diagram

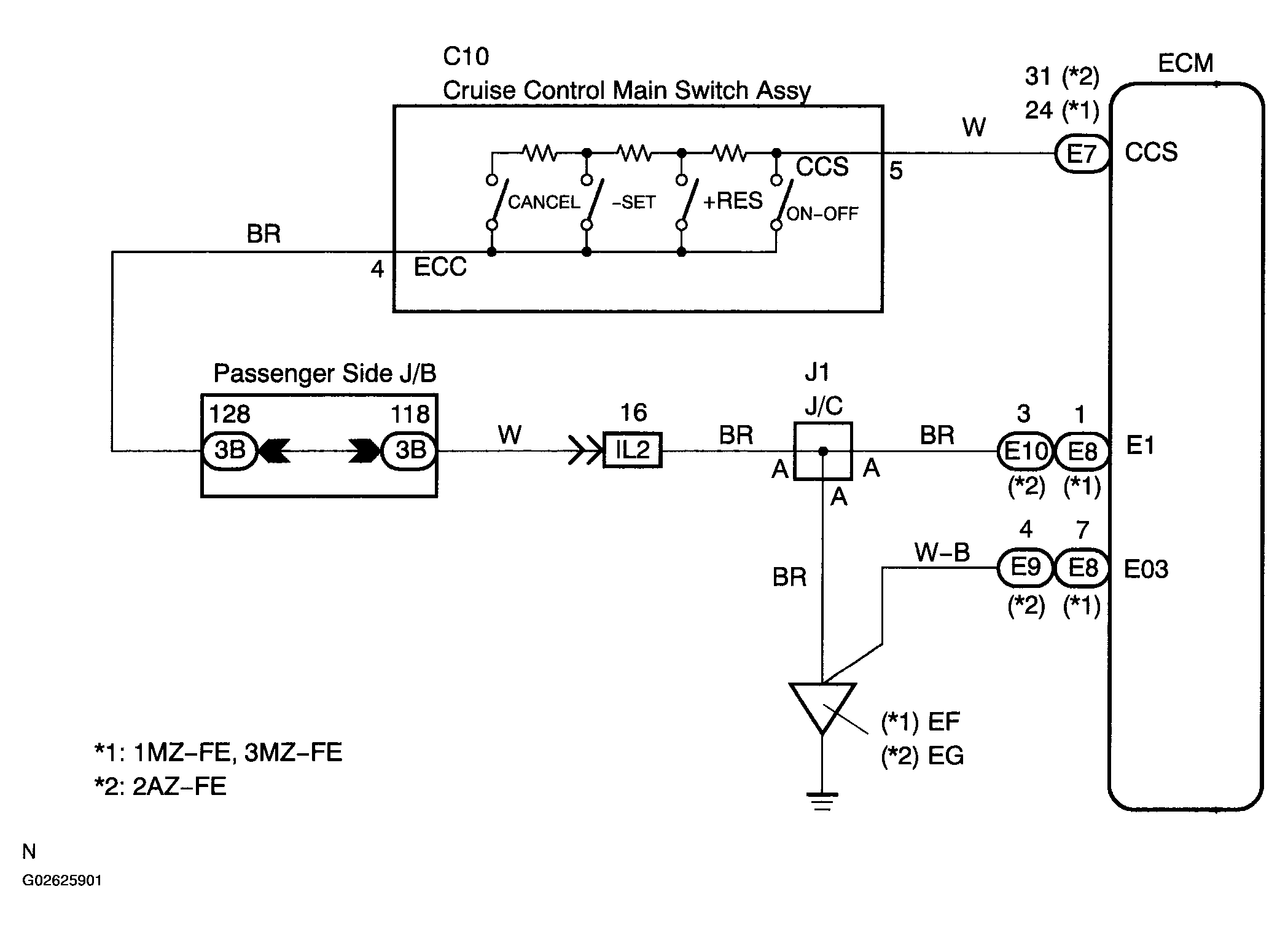

Fig 1: Cruise Control Switch Circuit Diagram

G02625901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
