Inspection Procedure

HINT:

Read freeze frame data. Freeze frame data records engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0441, P0442, P0446 AND/OR P0456)

    Result

    RESULT CHART (1 OF 14)

    Display (DTC output) Proceed to
    Only P0441, P0442, P0446 and /or P0456 are output A
    P0451, P0452 and P453 are output B

    HINT:

    If any other DTCs besides P0441, P0442, P0446 and/or P0456 are output, perform the troubleshooting for those DTCs first (reference: P0451, P0452, P0453 are vapor pressure sensor malfunctions).

    1. B: Go to RELEVANT DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART   )

    A: Go to Next Step

  2. CHECK CURRENT AND PENDING DTC
    1. Check current DTCs. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBDII, DTC INFO and CURRENT DTCS.
    2. Check pending DTCs. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBDII, DTC INFO and PENDING DTCS.

    Result

    RESULT CHART (2 OF 14)

    Current DTC Pending DTC Conclusion
    Set Set System has been malfunctioning. Problem can be specified.
    Set - System was malfunctioning in previous driving cycle. Problem may be specified.
    - Set System is malfunctioning. This is intermittent problem and caused by fuel tank cap loosing. Otherwise, this problem may be difficult to eliminate.

    HINT:

    The ECM stores the current DTC and illuminates the MIL when an emission-related component is malfunctioning in 2 consecutive driving cycles (2 trips). The MIL is turned OFF, if the component is functioning normally in 3 consecutive driving cycles. The ECM erases the current DTC, if the component is functioning normally in 40 consecutive driving cycles.

    The ECM stores the pending DTC when If the component is malfunctioning in present driving cycle (1 trip). The ECM erases the pending DTC, if the component is functioning normally in the next driving cycle.

    NEXT: Go to Next Step

  3. PREDICT POSSIBLE MALFUNCTION AREA

    Predict possible malfunction area using the matrix below.

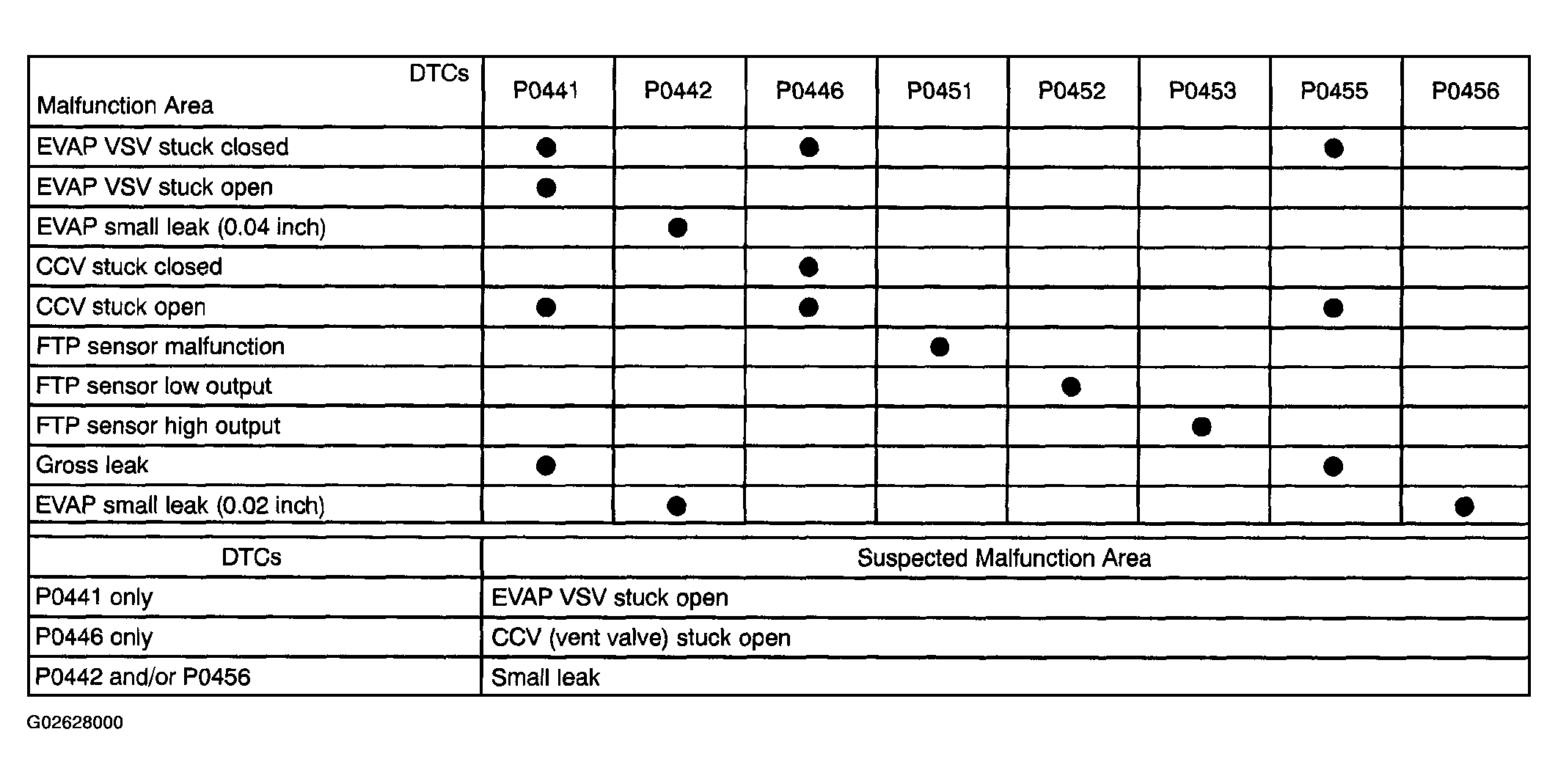

    EVAP DTC Matrix

    Fig 1: EVAP DTC Matrix Chart
    G02628000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NEXT: Go to Next Step

  4. PERFORM EVAP SYSTEM CHECK
    NOTE: The EVAP system check can be used for confirmation after the EVAP system repair. Check DTCs after performing the EVAP system check. If no pending DTC is set, the EVAP system is functioning normally and the repair is completed.
    1. Select the "mmHg" unit. Select the hand-held tester menus: DIAGNOSIS, SETUP, UNIT CONVERSION and VAPOR PRESS.
    2. Allow the engine to idle.
    3. Perform the EVAP system check to find a malfunction area. Select the hand- held tester menus: DIAGNOSIS, ENHANCED OBD II, SYSTEM CHECK and LEV II SYS CHECK.
    4. Read NOTICE and press ENTER.

    HINT:

    The EVAP system check is most accurate when the following conditions are being set:

    • Atmospheric pressure is 762 mmHg (sea level).
    • The engine coolant and intake air temperatures are 4 to 35°C (40 to 90°F).
    • The fuel tank level is 1/4 to 3/4.

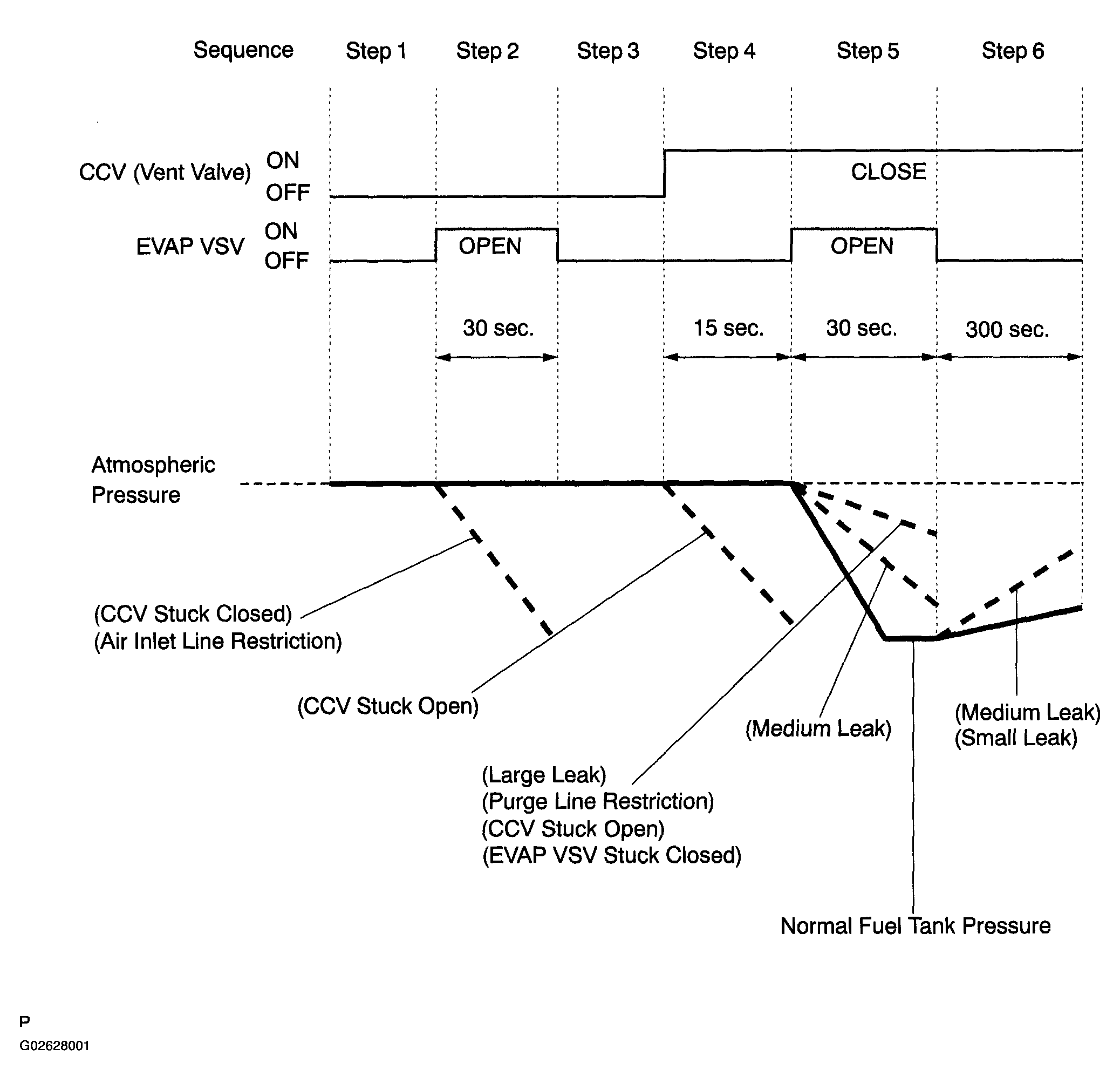

    Diagram of LEVII EVAP System Check

    Fig 2: LEVII EVAP System Check Diagram
    G02628001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NEXT: Go to Next Step

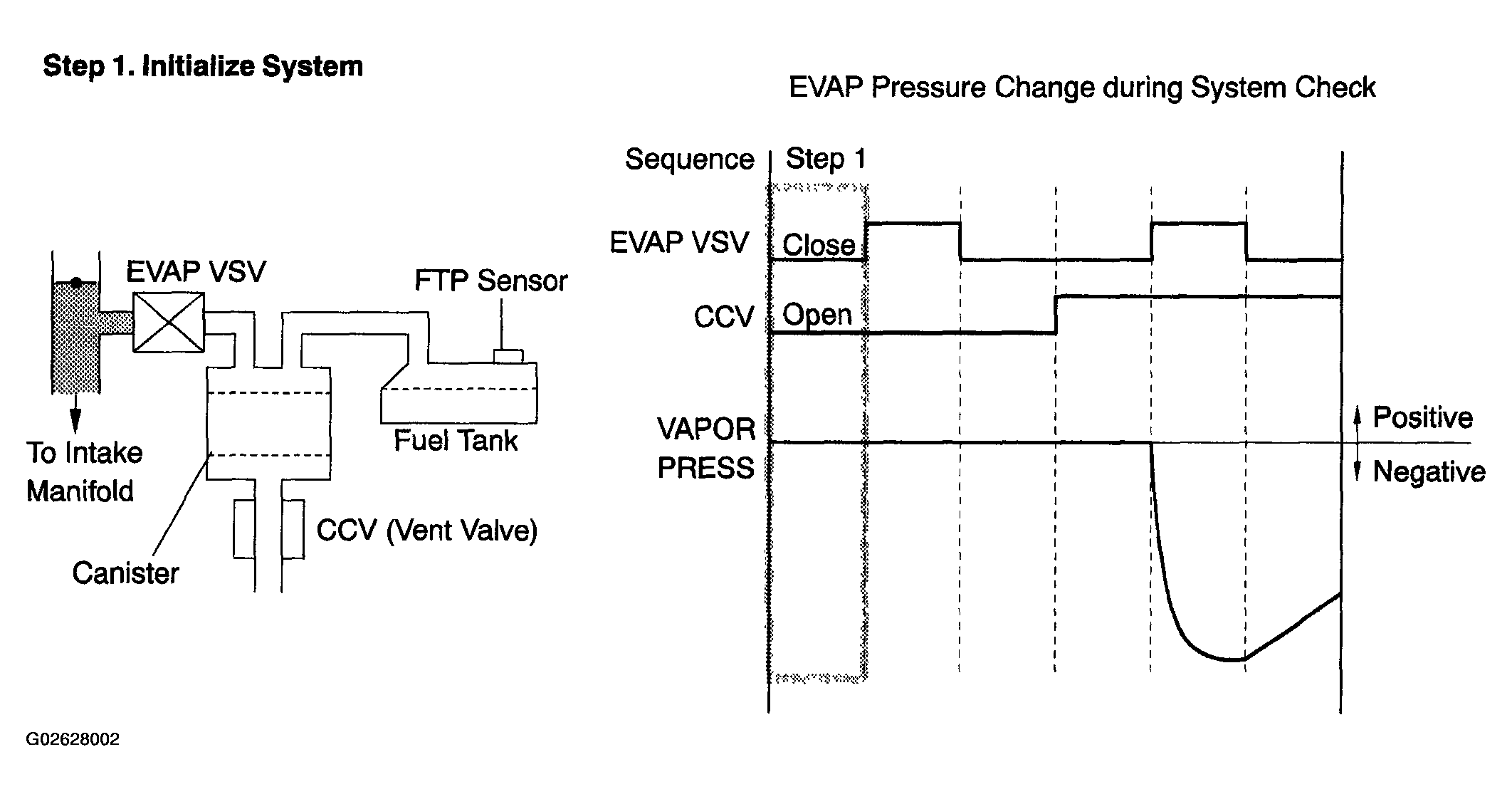

  5. EVAP SYSTEM CHECK STEP 1 (INITIALIZE SYSTEM)
    Fig 3: EVAP System Check Step 1 Diagram (Initialize System)
    G02628002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Wait for 30 seconds.

    Fig 4: LEV11 System Check - Display
    G02628003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

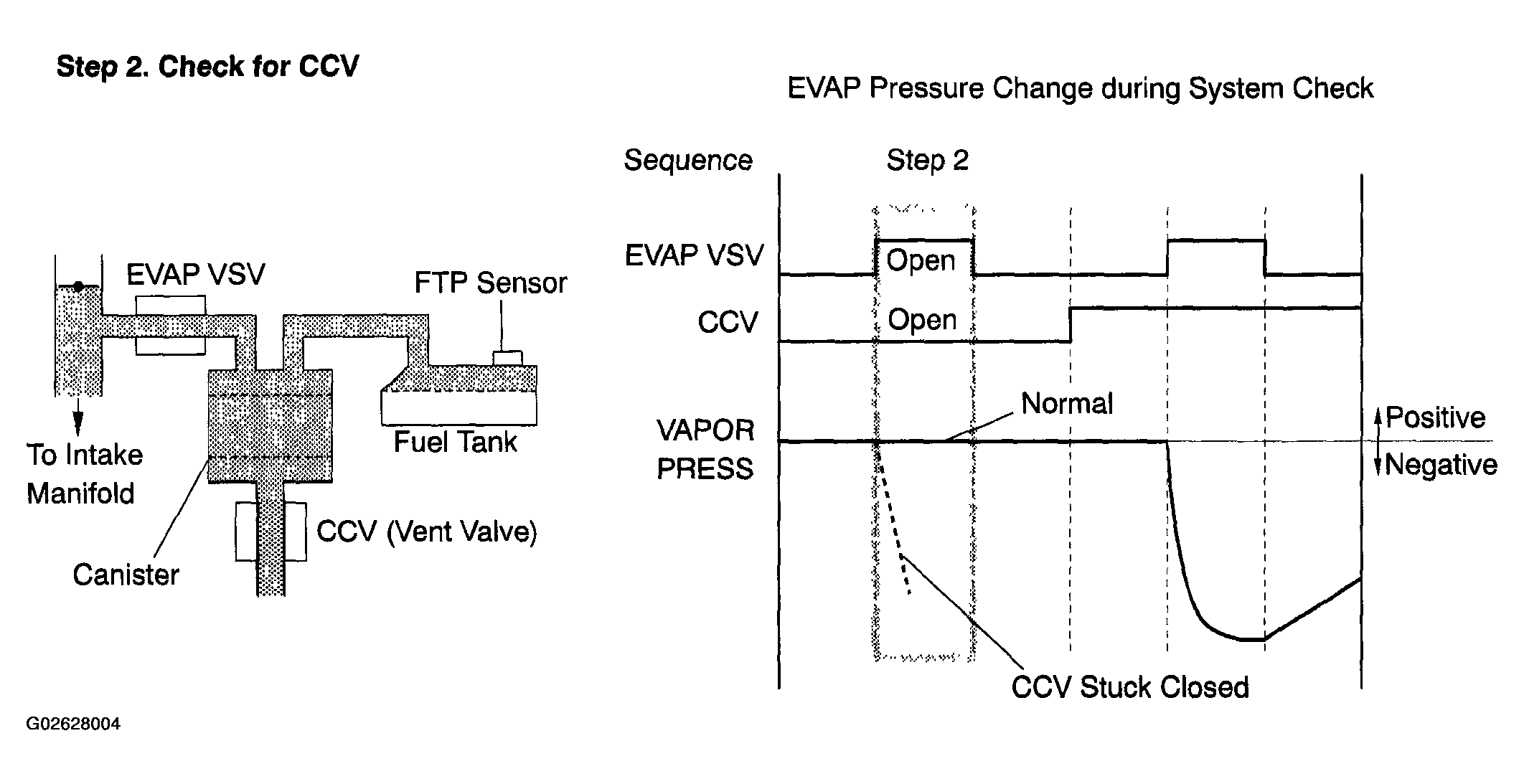

  6. EVAP SYSTEM CHECK STEP 2 (CHECK FOR CCV)
    Fig 5: EVAP Pressure Change Diagram
    G02628004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Press RIGHT to go to step  2.
    2. Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
      Fig 6: LEV11 System Check - Display
      G02628005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

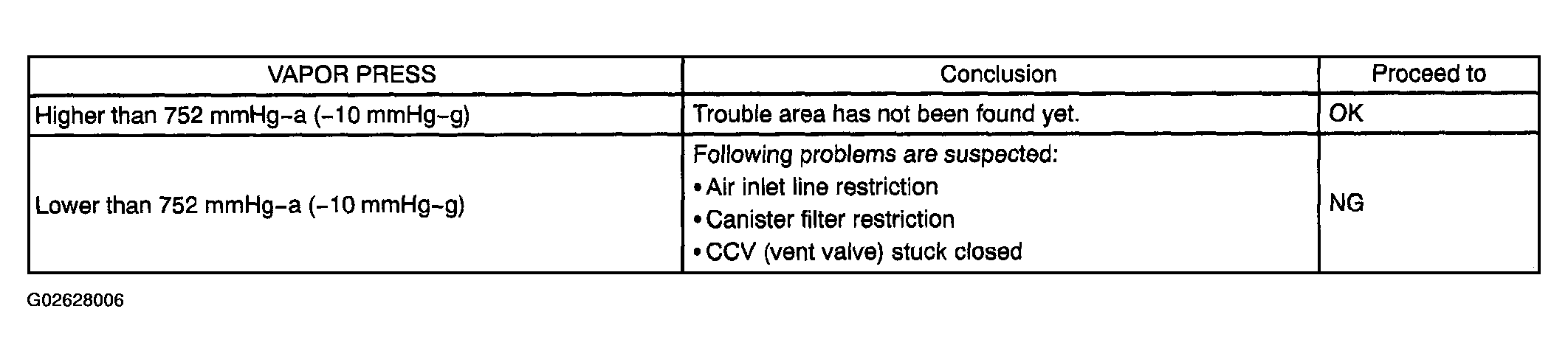

    Result

    Fig 7: Result Chart
    G02628006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    In this step, the intake manifold pressure (vacuum) is applied to the EVAP system. However, the fuel tank pressure does not drop due to the CCV (vent valve) open.

    1. NG: Go to step   11

    OK: Go to Next Step

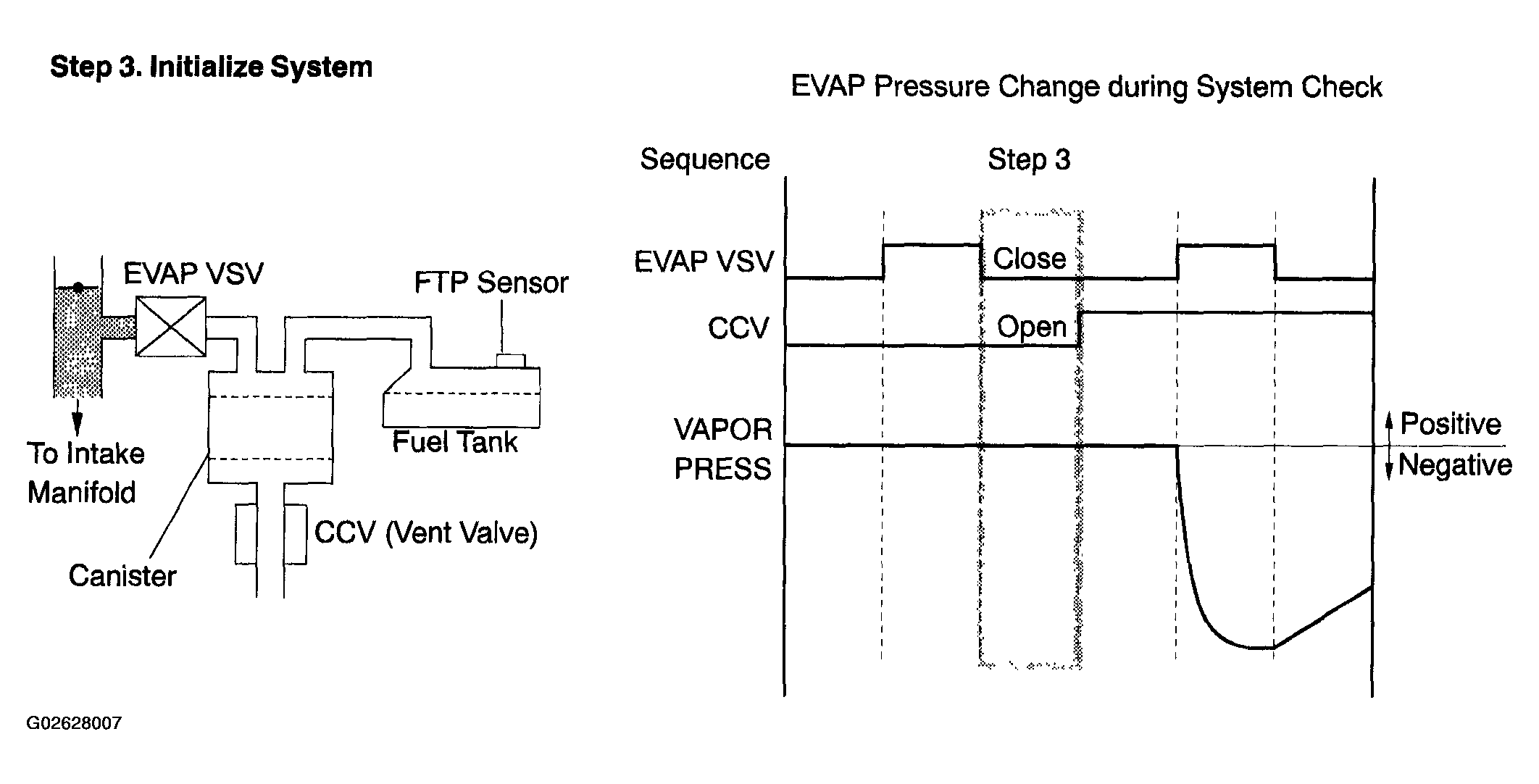

  7. EVAP SYSTEM CHECK STEP 3 (INITIALIZE SYSTEM)
    Fig 8: EVAP Pressure Change Diagram
    G02628007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Press RIGHT to go to step  3.
    2. Wait for 30 seconds.
      Fig 9: LEV11 System Check - Display
      G02628008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NEXT: Go to Next Step

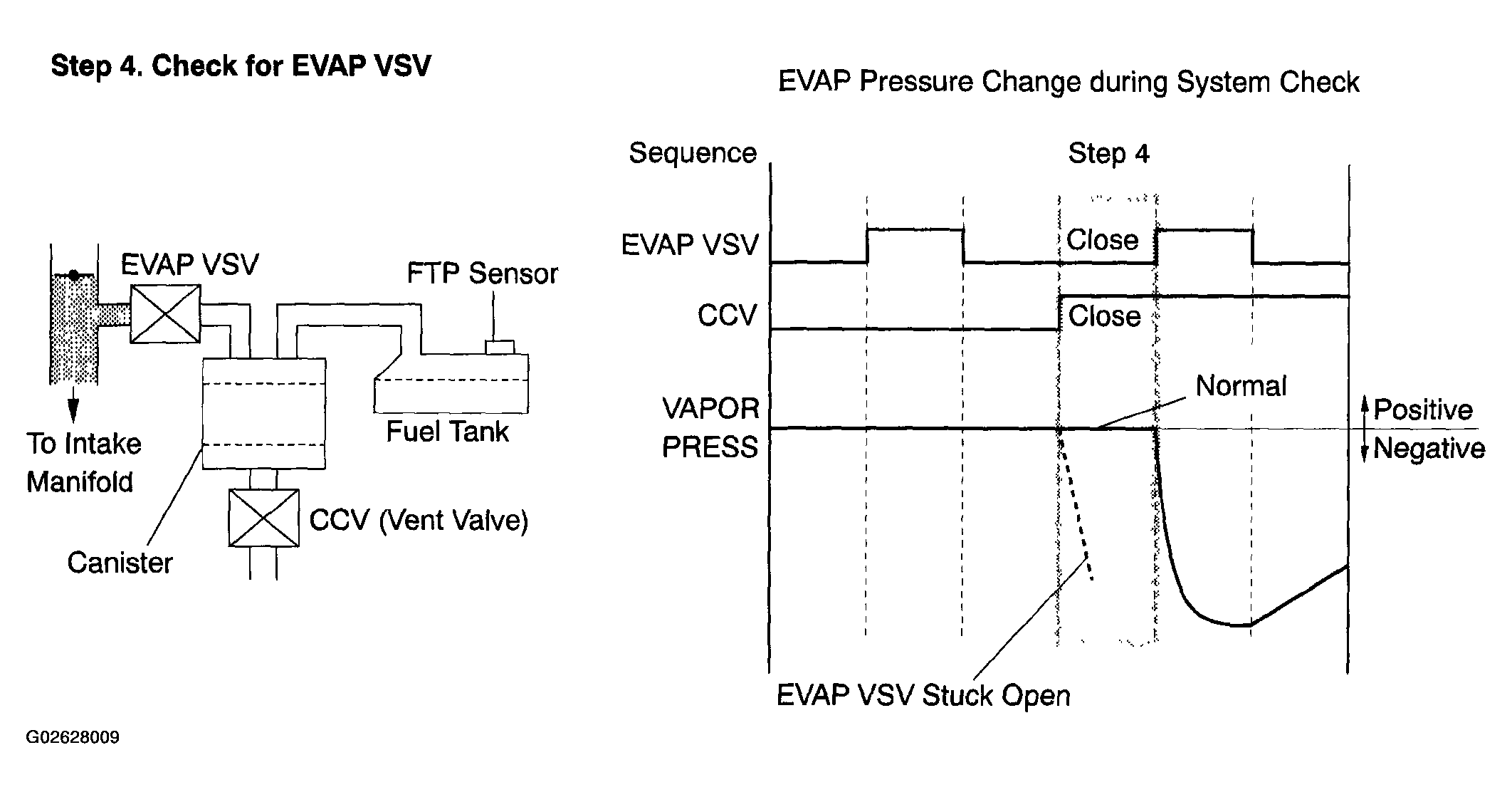

  8. EVAP SYSTEM CHECK STEP 4 (CHECK FOR EVAP VSV STUCK OPEN)
    Fig 10: EVAP Pressure Change Diagram
    G02628009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Press RIGHT to go to step  4.
    2. Wait for 15 seconds and check VAPOR PRESS (EVAP pressure).
      Fig 11: LEV11 System Check - Display
      G02628010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (3 OF 14)

    VAPOR PRESS Conclusion Proceed to
    Higher than 758 mmHg-a (-4 mmHg-g) Trouble area has not been found yet. OK
    Lower than 758 mmHg-a (-4 mmHg-g) EVAP VSV stuck open NG
    1. NG: Go to step   14

    OK: Go to Next Step

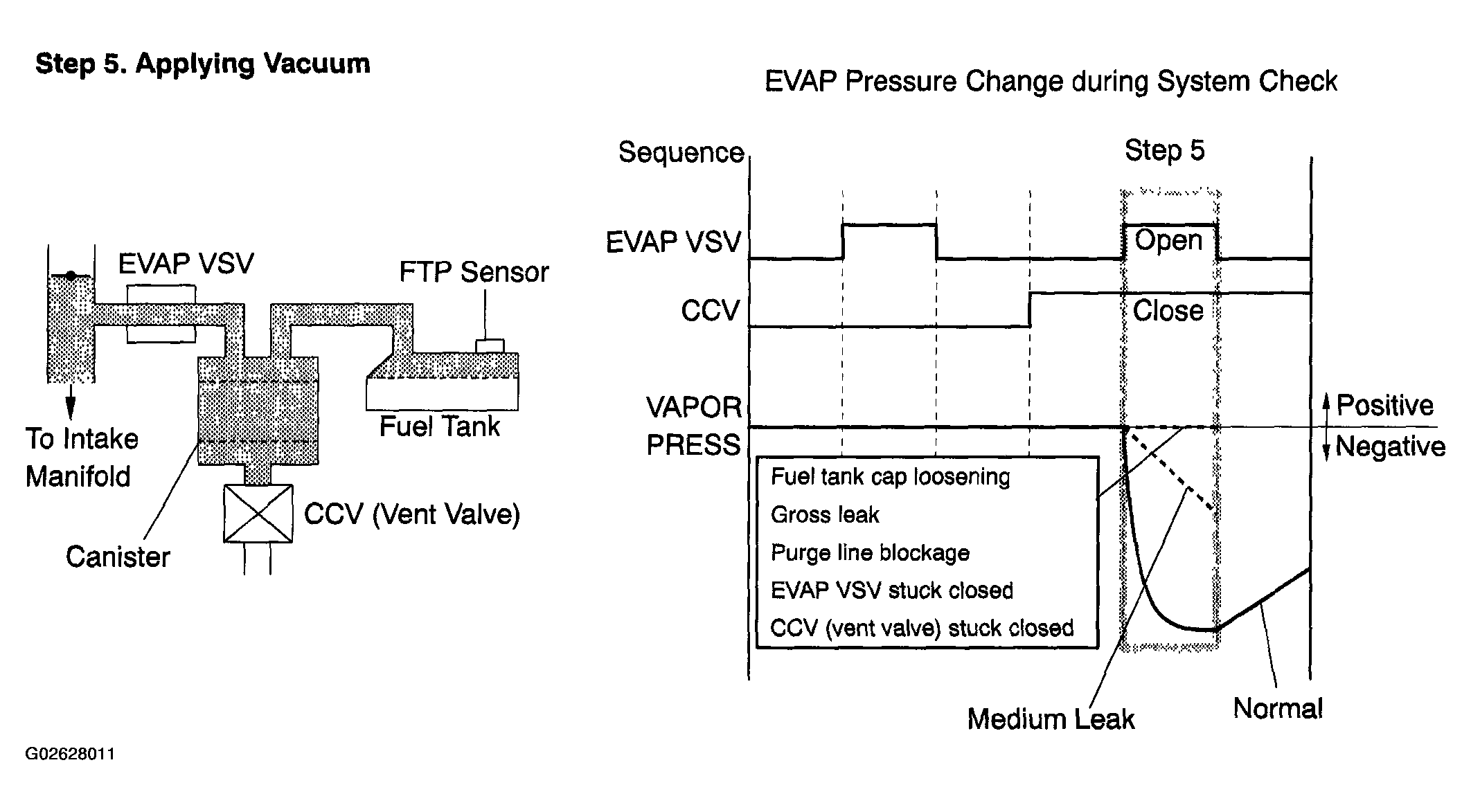

  9. EVAP SYSTEM CHECK STEP 5 (APPLYING VACUUM)
    Fig 12: EVAP Pressure Change Diagram
    G02628011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Press RIGHT to go to step  5.
    2. Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
      Fig 13: LEV11 System Check - Display
      G02628012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

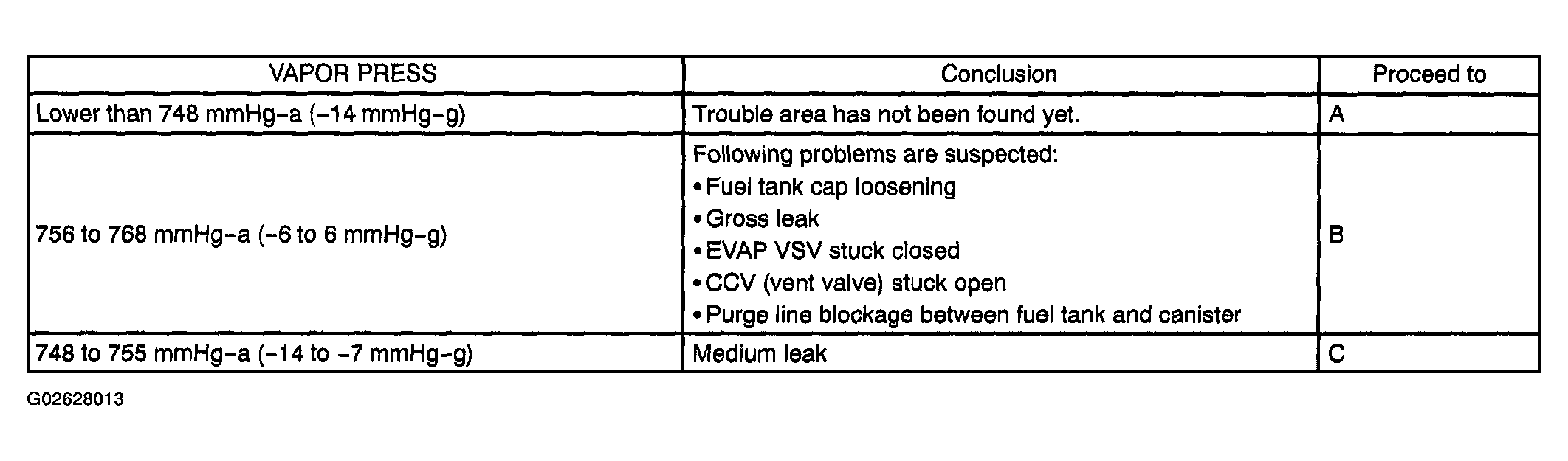

    Result

    Fig 14: Result Chart
    G02628013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • If the pressure is lower than 740 mmHg-a (-22 mmHg-g), the hand-held tester closes the EVAP VSV.
      Fig 15: LEV11 System Check - Display
      G02628014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If the pressure is lower than 735 mmHg-a (-27 mmHg-g), the hand-held tester cancels the EVAP system check.
    Fig 16: ERROR - Display
    G02628015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   15
    2. C: Go to step   18

    A: Go to Next Step

  10. EVAP SYSTEM CHECK STEP 6 (LEAK CHECK FOR EVAP SYSTEM)

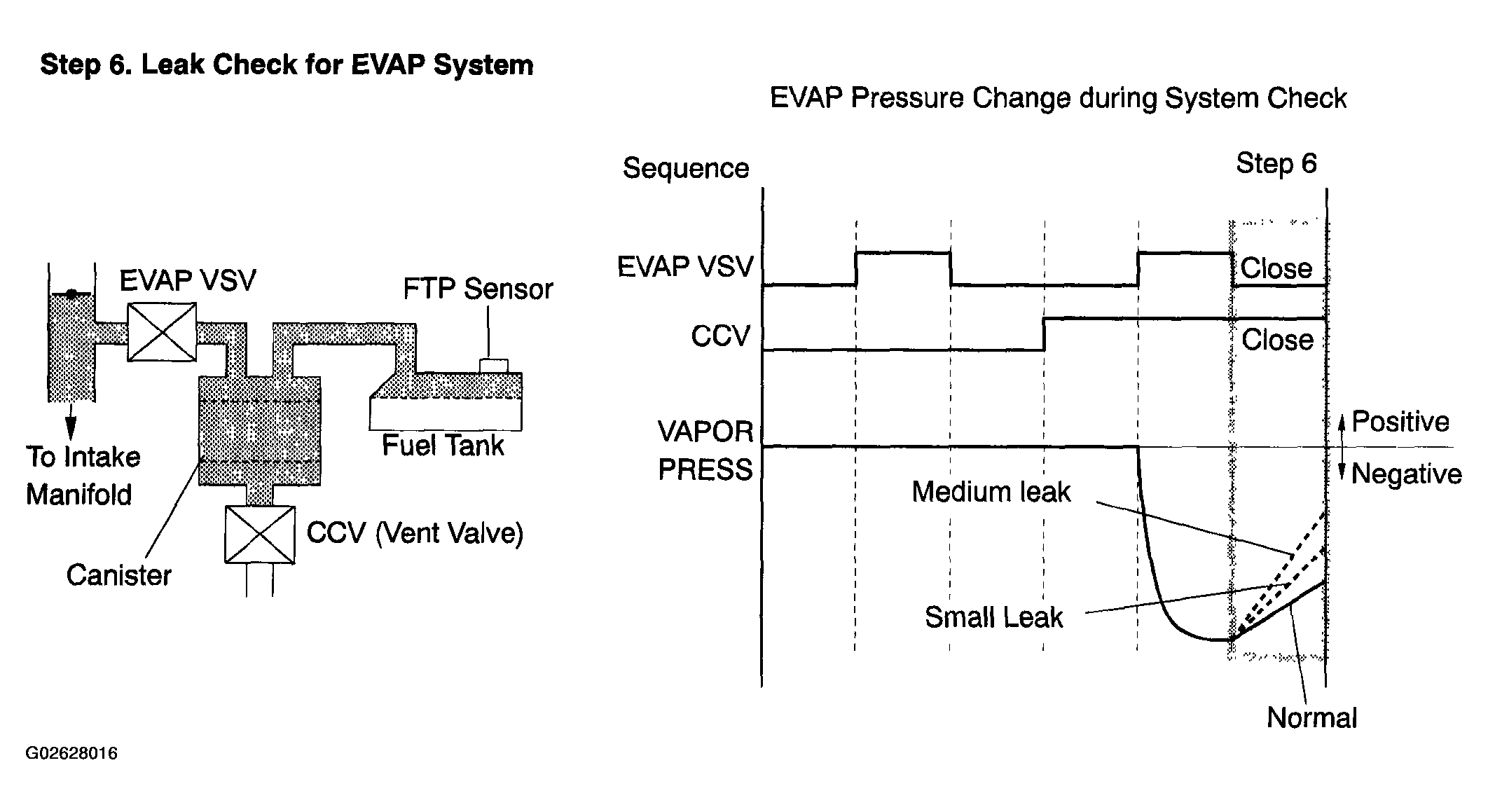

    Fig 17: EVAP Pressure Change Diagram
    G02628016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Press RIGHT to go to step  6 when the VAPOR PRESS (EVAP pressure) is lower than 742 mmHg-a (-20 mmHg-g).
    2. Wait for 300 seconds and check VAPOR PRESS (EVAP pressure).
      Fig 18: LEV11 System Check - Display
      G02628017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (4 OF 14)

    VAPOR PRESS Conclusion Proceed to
    Less than 758 mmHg-a (-4 mmHg-g) EVAP system is functioning normally. OK
    Higher than 758 mmHg-a (-4 mmHg-g) Leakage NG
    1. NG: Go to step   18
    2. OK: Go to step   40
  11. CHECK CCV
    1. Turn the ignition switch to OFF
    2. Turn the ignition switch ON
    3. Switch the CCV (vent valve) using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
    4. Touch the CCV and check the operation during switching the CCV.

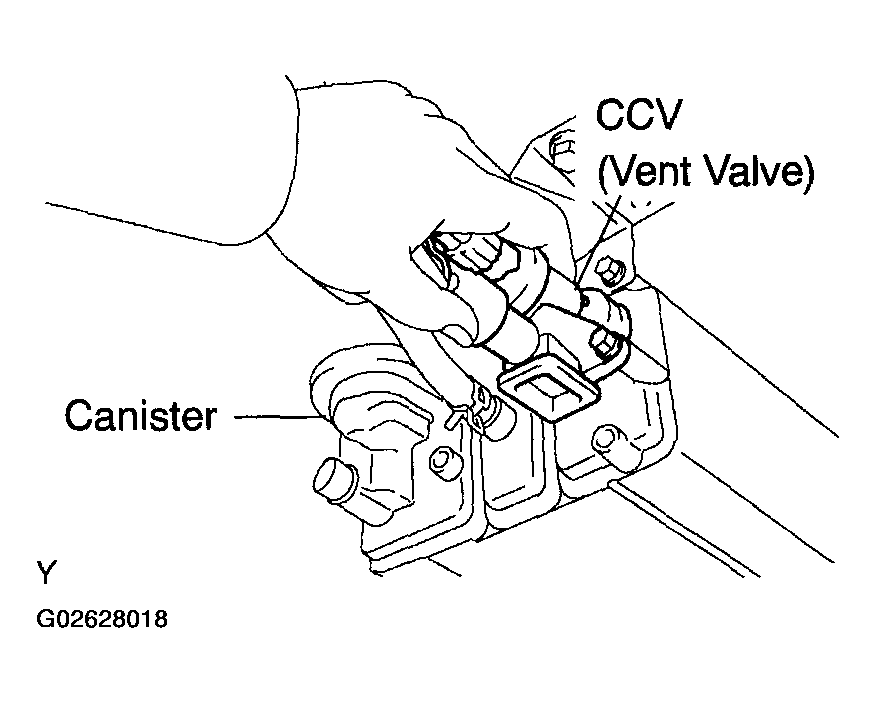

      Fig 19: Checking CCV
      G02628018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (5 OF 14)

    CCV (Vent Valve) Conclusion Proceed to
    CCV is operated CCV is functioning normally. OK
    CCV is not operated CCV is malfunctioning. NG
    1. NG: Go to step   25

    OK: Go to Next Step

  12. CHECK AIR INLET LINE RESTRICTION
    1. Disconnect the air inlet line from the CCV.
    2. Remove and reinstall the fuel tank cap to release the fuel tank pressure.
    3. Allow the engine to idle.
      Fig 20: Checking Air Inlet Line Restriction
      G02628019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Perform step  6 of the EVAP system check.
    5. Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
      Fig 21: LEV11 System Check - Display
      G02628020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART (6 OF 14)

      VAPOR PRESS Conclusion Proceed to
      Higher than 752 mmHg-a (-10 mmHg-g) Blockage in canister filter A
      Lower than 752 mmHg-a (-10 mmHg-g) Blockage in CCV (vent valve) or canister B
    6. Reconnect the air inlet line to the CCV.
    1. B: Go to step 13

    A: REPLACE CANISTER FILTER

  13. CHECK CANISTER BLOCKAGE
    1. Turn the ignition switch to OFF.
    2. Remove the CCV from the canister.
    3. Remove and reinstall the fuel tank cap to release the fuel tank pressure.
    4. Allow the engine to idle.
      Fig 22: Checking Canister Blockage
      G02628021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Perform step  6 of the EVAP system check.
    6. Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
      Fig 23: LEV11 System Check - Display
      G02628022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (7 OF 14)

    VAPOR PRESS Conclusion Proceed to
    Higher than 752 mmHg-a (-10 mmHg-g) CCV (vent valve) stuck closed A
    Lower than 752 mmHg-a (-10 mmHg-g) Blockage in canister B
    1. B: CHECK AND REPLACE CHARCOAL CANISTER (See  CHARCOAL CANISTER ASSY (2AZ-FE) (FROM JULY, 2003)  )

    A: REPLACE CCV (VENT VALVE)

  14. CHECK EVAP VSV (FOR EVAP VSV STUCK OPEN)
    1. Turn the ignition switch to OFF.
    2. Disconnect the purge hose of the canister from the EVAP VSV.
    3. Disconnect the EVAP VSV connector.
    4. Allow the engine to idle.
    5. Touch the EVAP VSV port to check the vacuum.
      Fig 24: Checking EVAP VSV (For EVAP VSV Stuck Open)
      G02628023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (8 OF 14)

    EVAP VSV Conclusion Proceed to
    Vacuum is applied. EVAP VSV is malfunctioning. A
    No vacuum is applied. Electrical circuit of EVAP VSV is malfunctioning. B
    1. B: Go to step   29

    A: REPLACE EVAP VSV

  15. CHECK FUEL TANK CAP
    1. Remove the fuel tank cap and reinstall it until a few click sound is heard.
    2. Clear the DTCs.
    3. Check pending DTCs after the EVAP system check. If no pending DTC is set, the DTC(s) was set due to the fuel cap loosening.

    If necessary, replace the fuel cap.

    1. NG: Go to step 16

    OK: REPAIR IS COMPLETE

  16. CHECK EVAP VSV (FOR EVAP VSV STUCK CLOSED)
    1. Disconnect the purge hose of the canister from the EVAP VSV.
    2. Allow the engine to idle.
    3. Switch the EVAP VSV using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV.
    4. Touch the EVAP VSV port to check the vacuum.

    HINT:

    The EVAP VSV can be tested with the EVAP Test Equipment (go to step  39).

    Fig 25: Checking EVAP VSV (For EVAP VSV Stuck Closed)
    G02628024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (9 OF 14)

    EVAP VSV Conclusion Proceed to
    1. Vacuum is applied when EVAP VSV is ON.
    2. No vacuum is applied when EVAP VSV is OFF.
    		 EVAP VSV is functioning normally. OK
    No vacuum is applied when EVAP VSV is ON. Electrical circuit of EVAP VSV is malfunctioning. NG
    1. NG: Go to step   31

    OK: Go to Next Step

  17. CHECK CCV (FOR CCV STUCK OPEN)
    1. Turn the ignition switch to OFF.
    2. Remove the CCV (vent valve) and plug the canister.
    3. Allow the engine to idle.
      Fig 26: Checking CCV (For CCV Stuck Open)
      G02628025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply vacuum to the EVAP system with the EVAP system check. Perform step  9 "Applying Vacuum".
    5. Wait for 30 seconds and check the VAPOR PRESS (EVAP pressure).
      Fig 27: LEV11 System Check - Display
      G02628026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (10 OF 14)

    VAPOR PRESS Conclusion Proceed to
    Lower than 747 mmHg-a (-15 mmHg-g) CCV (vent valve) stuck open A
    Higher than 747 mmHg-a (-15 mmHg-g)
    1. Blockage in canister
    2. Blockage in purge line (Fuel tank - Canister)
    3. Blockage in purge line (Fuel tank - EVAP VSV)
    		 B
    1. B: Go to step   20
    2. A: Go to step   24
  18. CHECK FUEL TANK CAP
    1. Remove the fuel tank cap and reinstall it until a few click sound is heard.
    2. Clear the DTCs.
    3. Check pending DTCs after the EVAP system check. If no pending DTC is set, the DTC(s) was set due to the fuel cap loosening.

    If necessary, replace the fuel cap.

    1. NG: Go to step 19

    OK: REPAIR IS COMPLETE

  19. CHECK FILLER NECK DAMAGE
    1. Remove the fuel tank cap.
    2. Visually inspect the filler neck for damage.
    3. Reinstall the fuel tank cap.

    HINT:

    A leak point may be found with the EVAP Test Equipment (go to step  36).

    1. NG: REPLACE FUEL TANK INLET PIPE
    Fig 28: Checking Filler Neck
    G02628027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  20. CHECK PURGE LINE (CANISTER - FUEL TANK)
    1. Check that the pipes and hoses are connected correctly.
    2. Check that the pipes and hoses are not loose or disconnected.
    3. Check the pipes and hoses have no damage or blockage.
      Fig 29: Checking Purge Line (Canister - Fuel Tank)
      G02628028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE PURGE HOSE

    OK: Go to Next Step

  21. CHECK PURGE LINE (CANISTER - EVAP VSV)
    1. Check that the pipes and hoses are connected correctly.
    2. Check that the pipes and hoses are not loose or disconnected.
    3. Check the pipes and hoses have no damage or blockage.
    1. NG: REPLACE PURGE HOSE

    OK: Go to Next Step

  22. INSPECT CANISTER (See  INSPECTION  )
    1. NG: REPLACE CANISTER

    OK: Go to Next Step

  23. INSPECT FUEL TANK
    1. Check that the fuel tank has no damage.
    2. Check the fuel inlet pipe has no damage.
    3. Check leakage from the fuel pump unit.
    1. NG: REPAIR OR REPLACE DEFECTIVE OR DAMAGED PARTS
    2. OK: Go to step   40
  24. CHECK CCV
    1. Stop the engine and turn the ignition switch ON.
    2. Switch the CCV (vent valve) using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
    3. Touch the CCV and check the operation during switching the CCV.

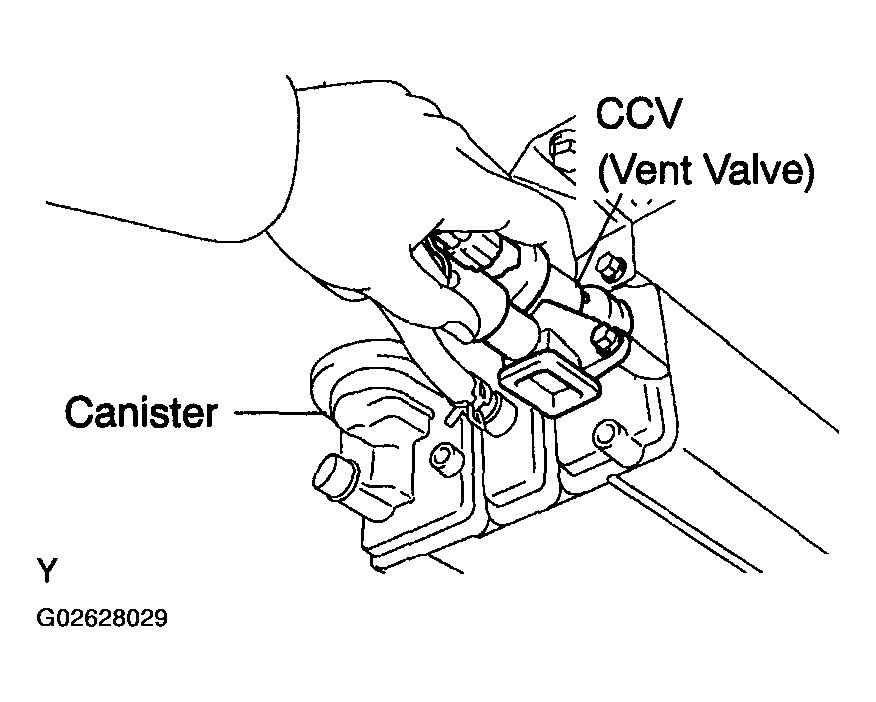

      Fig 30: Checking CCV
      G02628029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (11 OF 14)

    CCV (Vent Valve) Conclusion Proceed to
    CCV is operated Electrical circuit of CCV is functioning normally. A
    CCV is not operated Electrical circuit of CCV is malfunctioning. B
    1. B: Go to step   26

    A: Go to Next Step

  25. CHECK CCV
    1. Turn the ignition switch OFF.
    2. Remove the CCV (vent valve).
    3. Connect the CCV connector,
    4. Turn the ignition switch ON.
    5. Switch the CCV using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
    6. Apply air to the CCV port using an air gun and check the airflow.

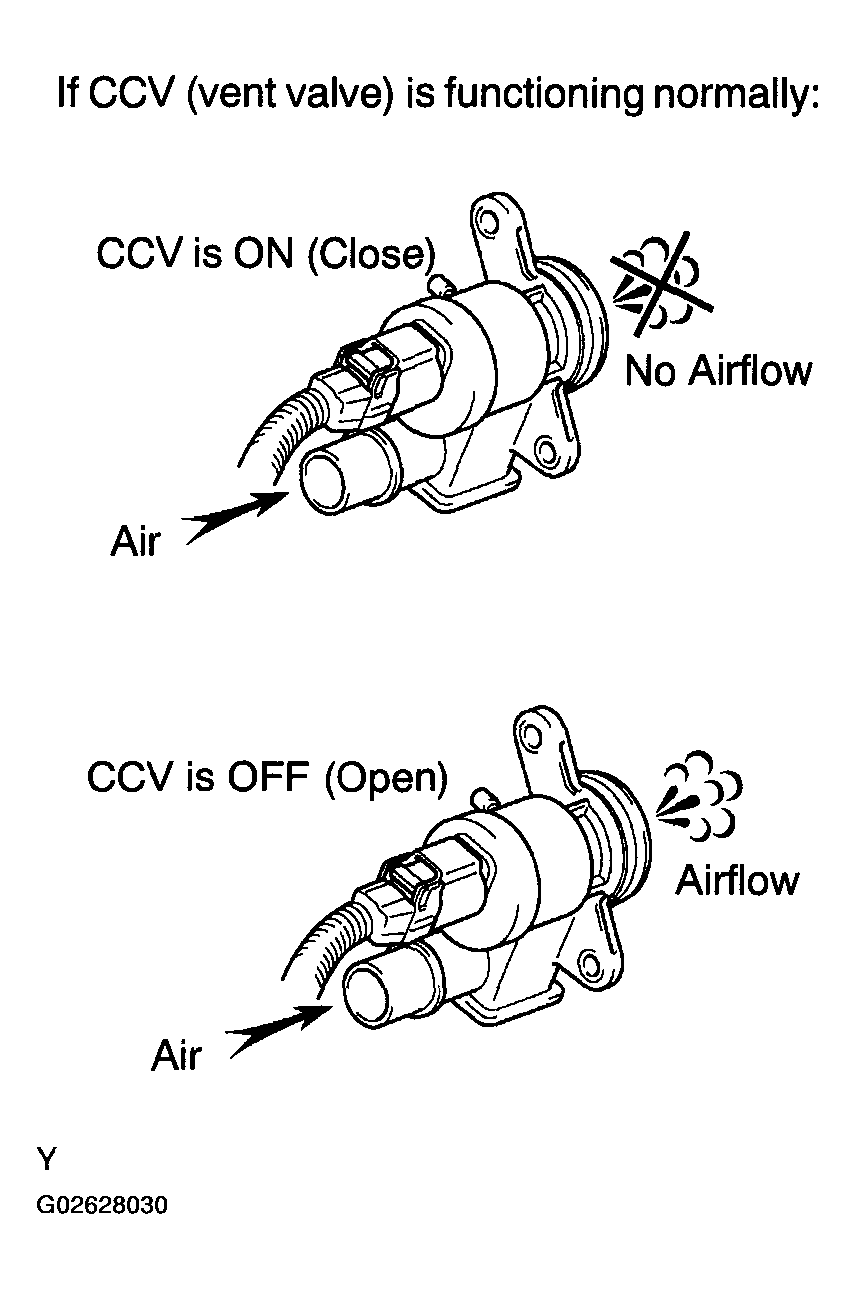

      Fig 31: Checking CCV
      G02628030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (12 OF 14)

    CCV (Vent Valve) Conclusion Proceed to
    1. Air flows when CCV is OFF (open).
    2. Air does not flows when CCV is ON (close).
    1. CCV is functioning normally.
    2. Electrical circuit of CCV is malfunctioning.
    		 A
    1. Air flows when CCV is ON (close).
    2. Air does not flows when CCV is OFF (open).
    		 CCV is malfunctioning. B
    1. B: REPLACE CCV (See  VENTILATION VALVE SUB-ASSY (2AZ-FE) (FROM JULY, 2003)  )

    A: Go to Next Step

  26. CHECK WIRE HARNESS AND CONNECTOR (CCV - POWER SOURCE)
    1. Turn the ignition switch OFF.
    2. Disconnect the CCV connector.
    3. Turn the ignition switch ON.
    4. Measure the voltage between terminal 2 of the wire harness side connector and body ground.
      Fig 32: Measuring Voltage Between Terminal 2 Of Wire Harness Side Connector And Body Ground
      G02628031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (13 OF 14)

    Voltage Conclusion Proceed to
    Battery voltage Wire harness (CCV - Power source) is OK. OK
    0 to 3 V Wire harness (CCV - Power source) is short circuit. NG
    1. NG: REPAIR OR REPLACE WIRE HARNESS

    OK: Go to Next Step

  27. CHECK WIRE HARNESS AND CONNECTOR (CCV - ECM)
    1. Switch the CCV using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
    2. Measure the resistance between terminal 1 of the wire harness side connector and body ground.
      Fig 33: Measuring Resistance Between Terminal 1 Of Wire Harness Side Connector And Body Ground
      G02628032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (14 OF 14)

    Resistance Conclusion Proceed to
    1. More than 10 kQ when CCV is OFF.
    2. Less than 10 Q when CCV is ON.
    1. ECM and wire harness (CCV - ECM) are OK.
    2. CCV is malfunctioning.
    		 OK
    No change Either of wire harness (CCV - ECM) or ECM is malfunctioning. NG
    1. NG: Go to step 28

    OK: REPLACE CCV

  28. CHECK WIRE HARNESS AND CONNECTOR (CCV - ECM)
    1. Check the wire harness between the ECM and CCV.
      1. Disconnect the E8 ECM connector.
      2. Disconnect the V15 VSV connector for CCV.
      3. Measure the resistance between the wire harness side connectors.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E8-27(CCV)-V15-1 Below 1 Ω
    V15-1 -Body ground 10 kΩ or higher

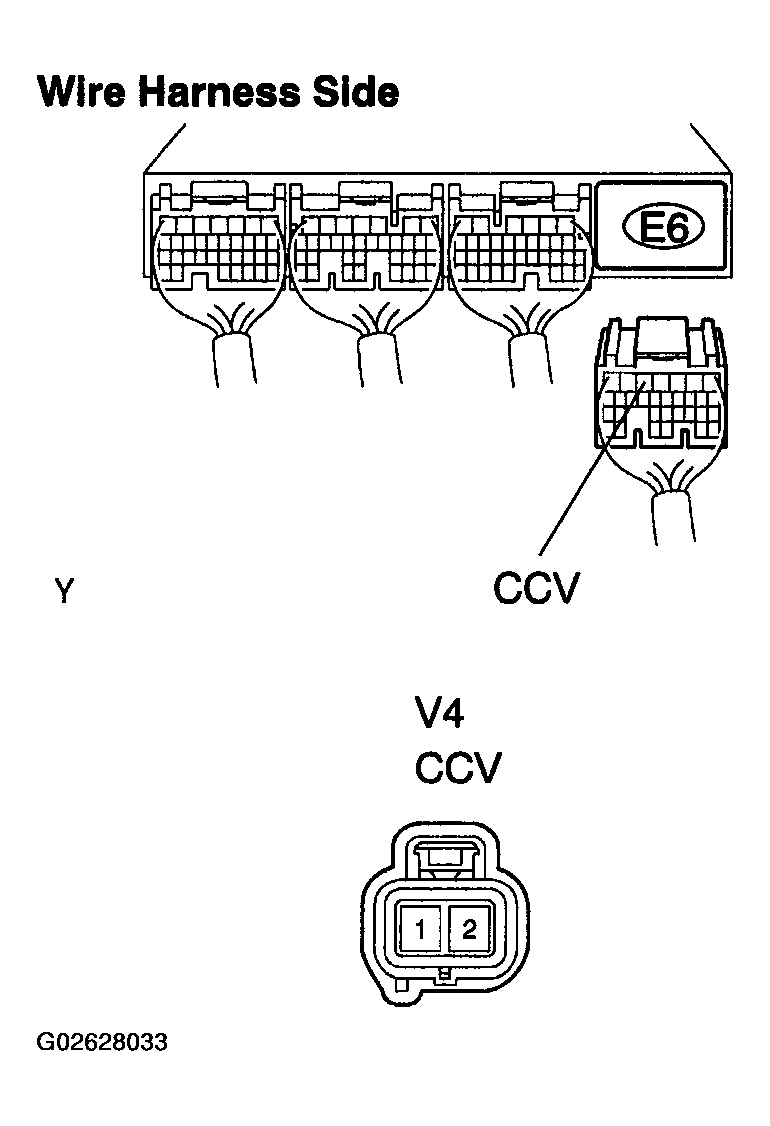

    Fig 34: Disconnecting E6 ECM Connector
    G02628033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: CHECK AND REPLACE ECM

  29. CHECK EVAP VSV
    1. Turn the ignition switch ON.
    2. Switch the EVAP VSV using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV (Alone).
    3. Listen to click sounds to check the EVAP VSV operation.
      Fig 35: Checking EVAP VSV
      G02628034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART

    EVAP VSV Conclusion Proceed to
    Operated Electrical circuit of EVAP VSV is functioning normally. OK
    Not operated Electrical circuit of EVAP VSV is malfunctioning. NG
    1. NG: Go to step   32

    OK: Go to Next Step

  30. CHECK EVAP VSV
    1. Disconnect the purge hose of the canister from the EVAP VSV.
    2. Start the engine.
    3. Switch the EVAP VSV using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV.
    4. Touch the EVAP VSV port to check the vacuum.
    Fig 36: Checking EVAP VSV
    G02628035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The EVAP VSV can be tested with the EVAP Test Equipment (go to step  39).

    Result

    RESULT CHART

    EVAP VSV Conclusion Proceed to
    1. Vacuum is applied when EVAP VSV is ON.
    2. No vacuum is applied when EVAP VSV is OFF.
    		 EVAP VSV is functioning normally. OK
    No vacuum is applied when EVAP VSV is ON. Electrical circuit of EVAP VSV is malfunctioning. NG
    1. NG: Go to step   32

    OK: Go to Next Step

  31. CHECK PURGE LINE (EVAP VSV - THROTTLE BODY)
    1. Check that the vacuum hoses are connected correctly.
    2. Check that the vacuum hoses are not loose or disconnected.
    3. Check the vacuum hoses and tubes for cracks, holes, damage, or blockage.
      Fig 37: Checking Purge Line (EVAP VSV - Throttle Body)
      G02628036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE PURGE HOSE

    OK: REPLACE EVAP VSV

  32. INSPECT EVAP VSV
    1. Turn the ignition switch OFF.
    2. Disconnect the EVAP VSV connector.
    3. Measure the resistance of the EVAP VSV.

    Standard

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    Between terminals 26 to 30 Ω at 20°C (68°F)
    Each terminal - Body ground 10 kΩ or more

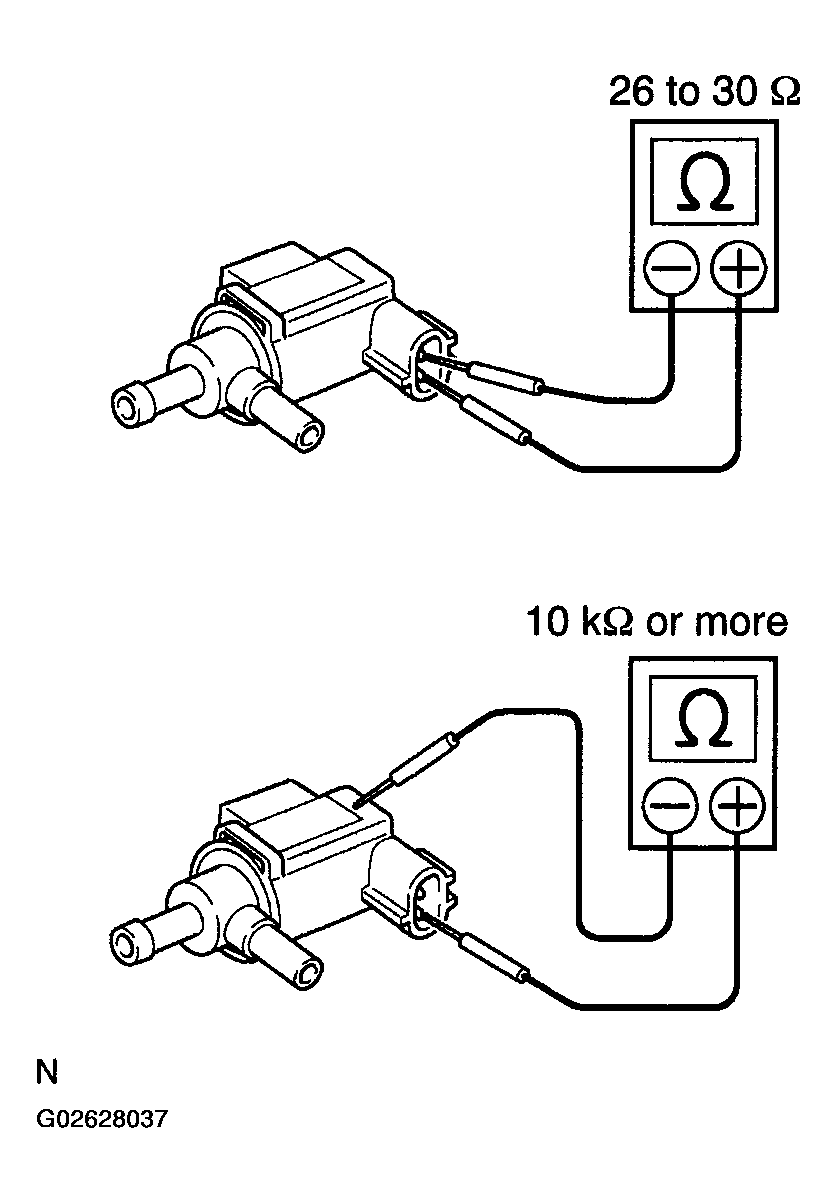

    Fig 38: Measuring Resistance Of EVAP VSV
    G02628037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE EVAP VSV

    OK: Go to Next Step

  33. INSPECT EVAP VSV
    1. Remove the EVAP VSV.
    2. Apply air to the EVAP VSV using an air gun, check the airflow.
      Fig 39: Inspecting EVAP VSV
      G02628038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply battery positive voltage across the terminals.
    4. Apply air to the EVAP VSV using an air gun, check the airflow.
      Fig 40: Inspecting EVAP VSV
      G02628039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (1 OF 2)

    EVAP VSV Conclusion Proceed to
    1. Air does not flow when EVAP VSV is OFF
    2. Air flows when EVAP VSV is ON.
    		 EVAP VSV is functioning normally. OK
    1. Air flows when EVAP VSV is OFF.
    2. Air does not flow when EVAP VSV is ON.
    		 EVAP VSV is malfunctioning. NG
    1. NG: REPLACE EVAP VSV

    OK: Go to Next Step

  34. CHECK WIRE HARNESS AND CONNECTOR (EVAP VSV - POWER SOURCE)
    1. Turn the ignition switch ON.
    2. Measure the voltage between the terminal 1 of the wire harness side and body ground.
      Fig 41: Identifying Connector Terminals
      G02628040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result

    RESULT CHART (2 OF 2)

    Voltage Conclusion Proceed to
    Battery voltage Wire harness (EVAP VSV - Power source) is OK. OK
    0 to 3 V Wire harness (EVAP VSV - Power source) is short circuit. NG
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to Next Step

  35. CHECK WIRE HARNESS AND CONNECTOR (EVAP VSV - ECM)
    1. Disconnect the ECM connector.
    2. Measure the voltage of ECM connector and body ground.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    E8-34 (PRG) - Body ground 9 to 14 V
    Fig 42: Disconnecting ECM Connector
    G02628041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: CHECK AND REPLACE ECM

  36. CHECK FUEL TANK CAP
    1. Connect the fuel tank cap to the gas cap adaptor.
    2. Connect the pressure hose from the pump to the gas cap adaptor.
    3. Plug the gas cap adaptor port.
    4. Turn the pump ON and pressurize the gas cap adaptor by 24 - 28 mmHg. If the pressure does not reach to 24 mmHg within 45 seconds, stop the pump. The fuel tank cap is malfunctioning.
    5. Turn the pump OFF and seal the pressure line to maintain the pressure.
    6. Measure the pressure change for 2 minutes. If the pressure drops to lower than 15 mmHg, the fuel tank cap is malfunctioning.

      Standard: The fuel tank cap keeps the pressure that is 15 mmHg or higher.

    1. NG: REPLACE FUEL TANK CAP

    OK: Go to Next Step

  37. CHECK LEAK
    NOTE: DO NOT apply the EVAP system to the pressure that is higher than 35 mmHg. The EVAP system will be damaged.
    1. Connect the pressure line from the pump to the EVAP service port.
    2. Turn the ignition switch ON but the engine is not running.
    3. Turn the CCV (vent valve) is ON (close) using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
    4. Turn the pump ON and pressurize the EVAP system by 24 - 28 mmHg.
    5. Turn the pump OFF and seal the pressure line to maintain the pressure. If the pressure does not reach to 24 mmHg within 45 seconds, stop the pump. A leakage is in the EVAP system. If the system has a small leak, a whistling sound may be heard.
    6. Measure the pressure change for 2 minutes. If the pressure drops to lower than 15 mmHg, a leakage is in the EVAP system.

      Standard: The EVAP system keeps the pressure that is 15 mmHg or higher.

    1. NG: Go to step 38

    OK: NO LEAKAGE IN EVAP SYSTEM

  38. LOCK FOR LEAK POINT
    1. Apply the soapy water on suspected components.
    2. Turn the CCV (vent valve) is ON (close) using the hand held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
    3. Turn the pump ON and pressurize the EVAP system by 24 - 28 mmHg.
    4. Turn the pump OFF and seal the pressure line to maintain the pressure. If the pressure does not reach to 24 mmHg within 45 seconds, stop the pump.
      Fig 43: Identifying Lock For Leak Point
      G02628042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check bubbles to find the leak points:
      • EVAP service port
      • Canister
      • Hose connections/Lines
      • Fuel cap
      • Fuel filler neck
      • Purge line
      • EVAP VSV
      • CCV (vent valve)
      • Fuel pump sending unit
    6. Repair or replace the leak component.
    7. Perform the EVAP system check to confirm no leak.
    1. NEXT: Go to step   4
  39. CHECK EVAP VSV
    1. Connect the vacuum gauge to the EVAP service port.
      1. Start the engine.
      2. Switch the EVAP VSV using the hand-held tester. Select the hand-held tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV.
      3. Check the vacuum when switching the EVAP VSV. If the vacuum gauge indicates negative value when the EVAP VSV is ON, the EVAP VSV is functioning normally.
        Fig 44: Connecting Vacuum Gauge To EVAP Service Port
        G02628043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK: The vacuum gauge indicates negative value when the EVAP VSV is ON.

    1. NG: Go to step   31
    2. OK: Go to step   17
  40. CHECK MONITOR STATUS AND DTC
    1. Clear DTCs.
    2. Perform a drive pattern test (see READINESS MONITOR DRIVE PATTERN  ).
    3. Check that the monitor result is PASS.
    4. Confirm no pending DTC.
    1. NEXT: REPAIR IS COMPLETE
scientia non olet · About Mike's Workshop Manuals
