Monitor Strategy

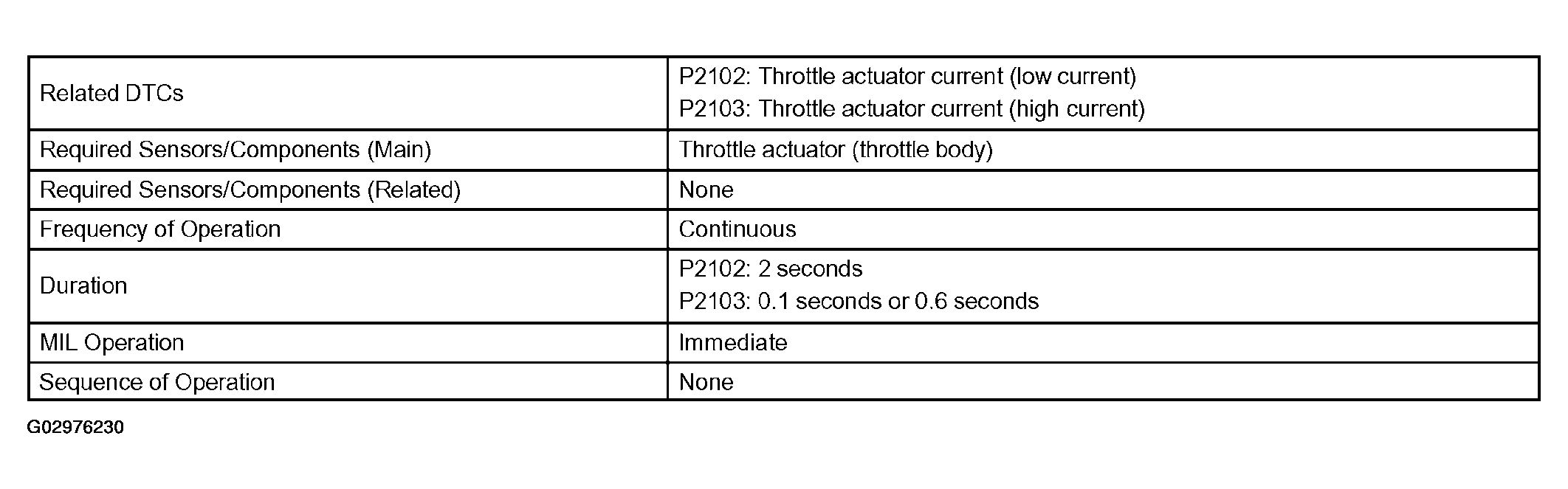

Fig 1: Monitor Strategy Chart

G02976230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
