Home >> Toyota >> 2005 >> Avalon XLS >> Repair and Diagnosis >> Engine Performance >> Engine Control System (SFI) >> DTC P0441: Evaporative Emission Control System Incorrect Purge Flow >> DTC Summary

DTC Summary

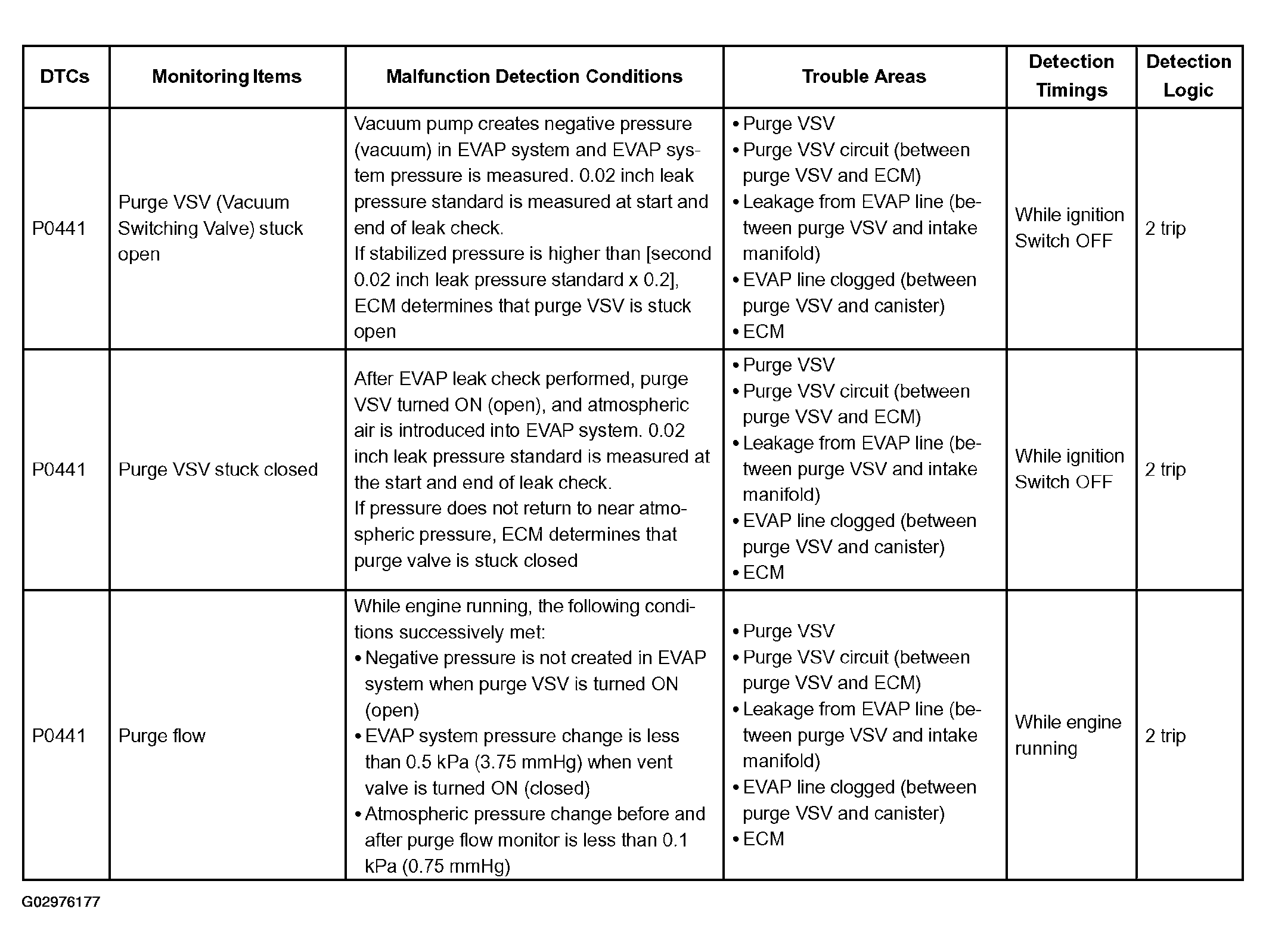

Fig 1: DTC Malfunction Detection Condition

G02976177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
