Windshield System, WINDOWGLASS System & Mirror System: Location

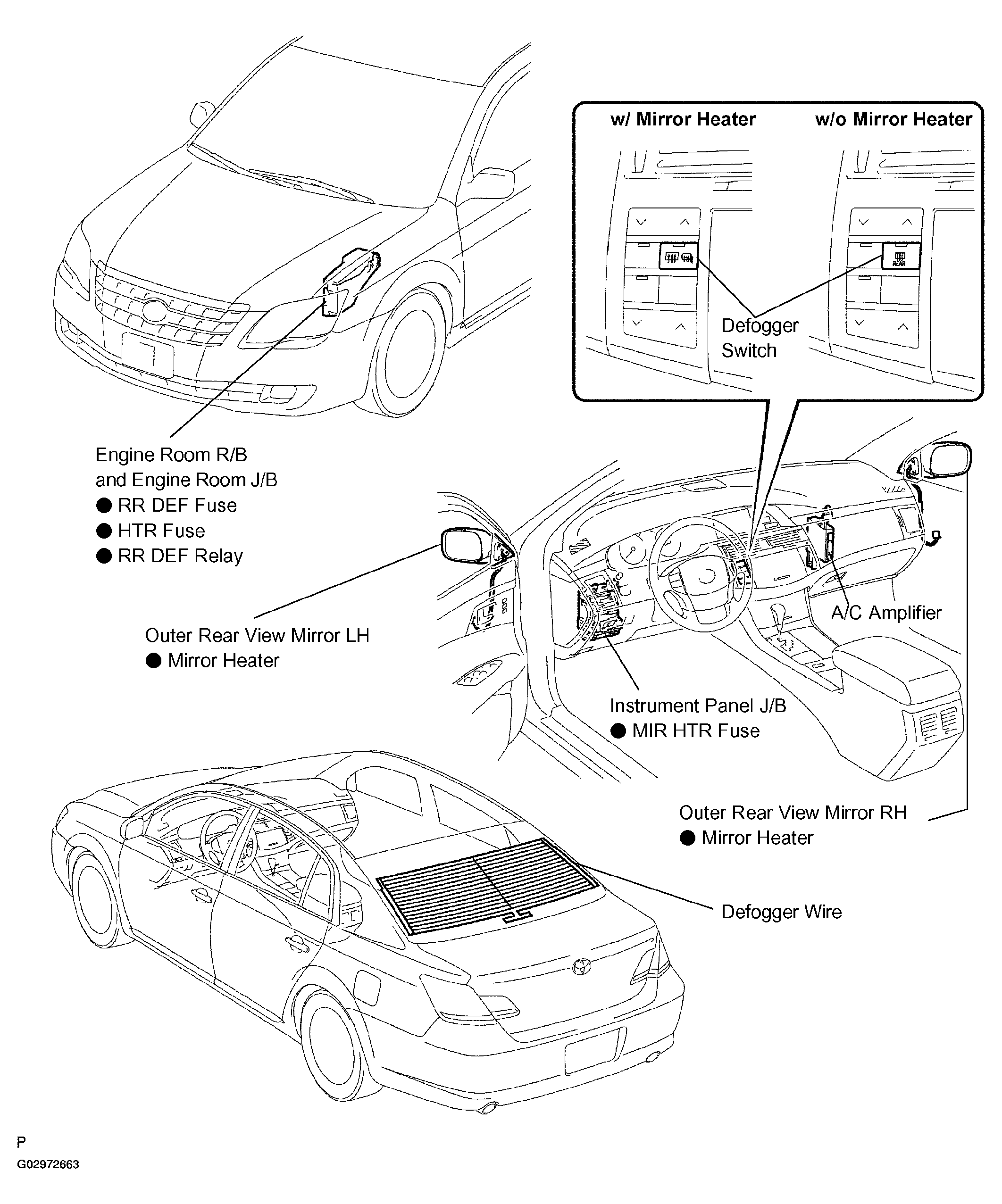

Fig 1: Identifying Window Defogger System Component Location

G02972663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
