Power Window Regulator Switch Circuit (Rear RH): Wiring Diagram

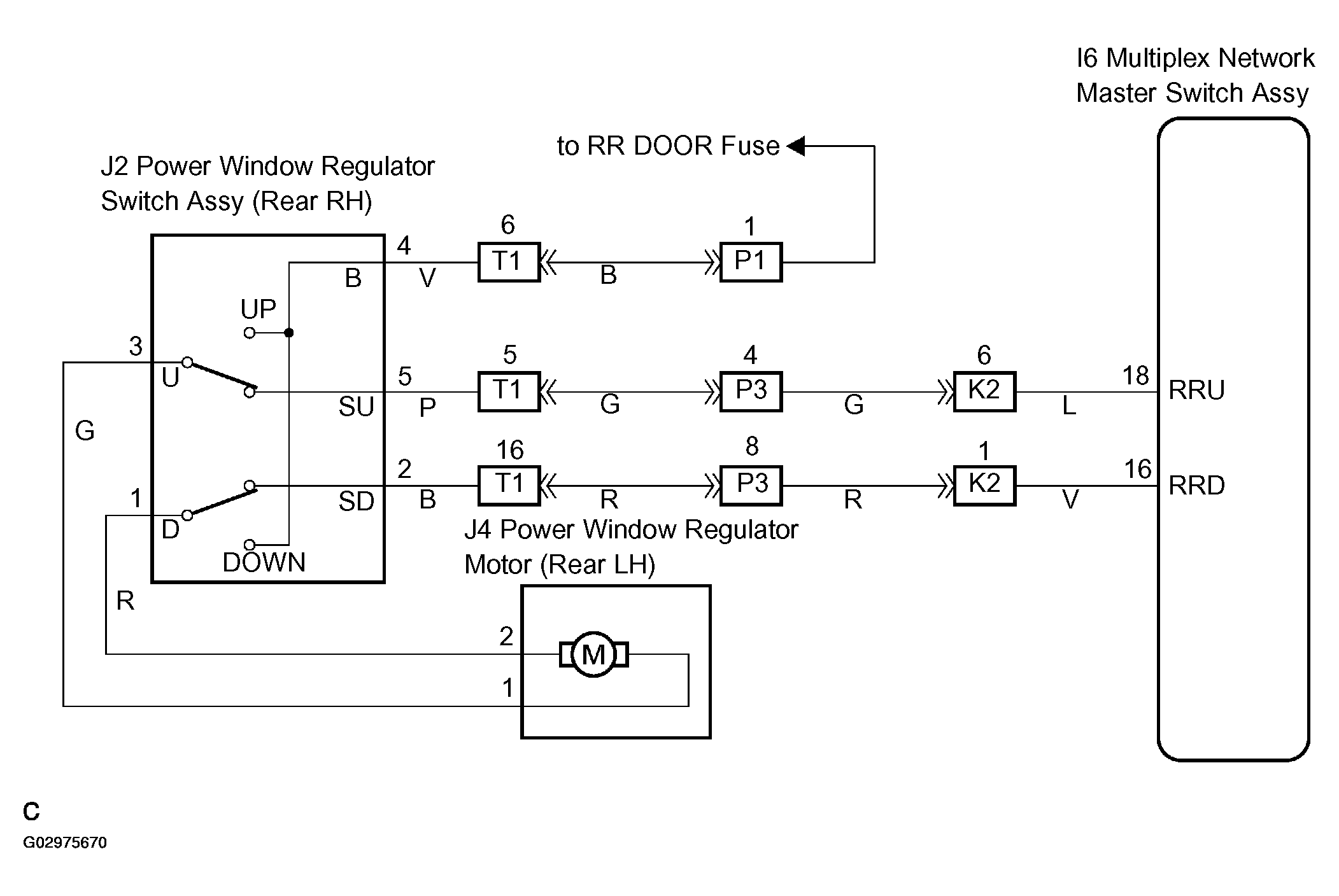

Fig 1: Power Window Regulator Switch Wiring Diagram - Rear RH

G02975670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
