Power Window Regulator Switch Circuit (Rear LH): Wiring Diagram

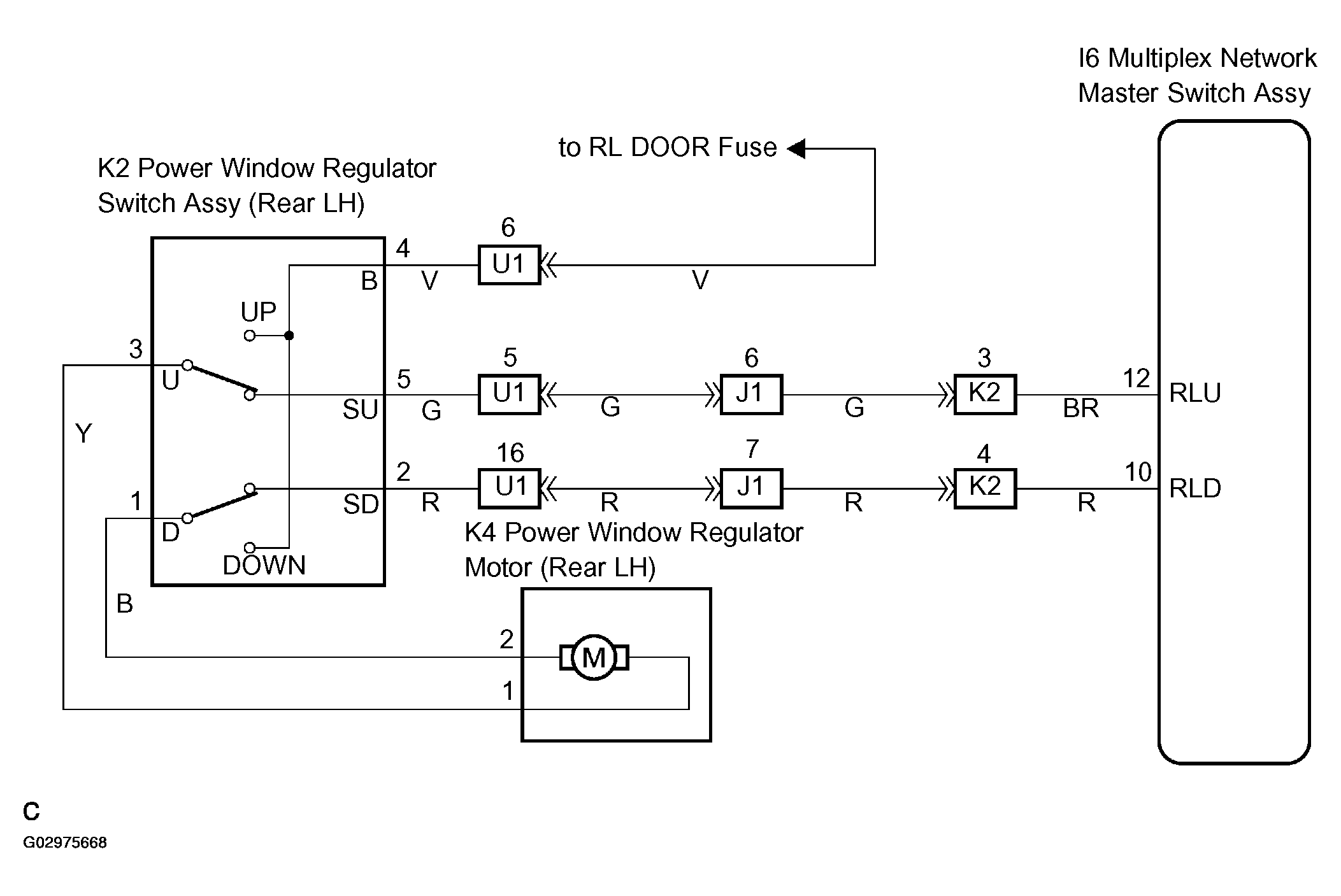

Fig 1: Power Window Regulator Switch Wiring Diagram - Rear LH

G02975668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
