Engine Switch Indicator Light Circuit: Wiring Diagram

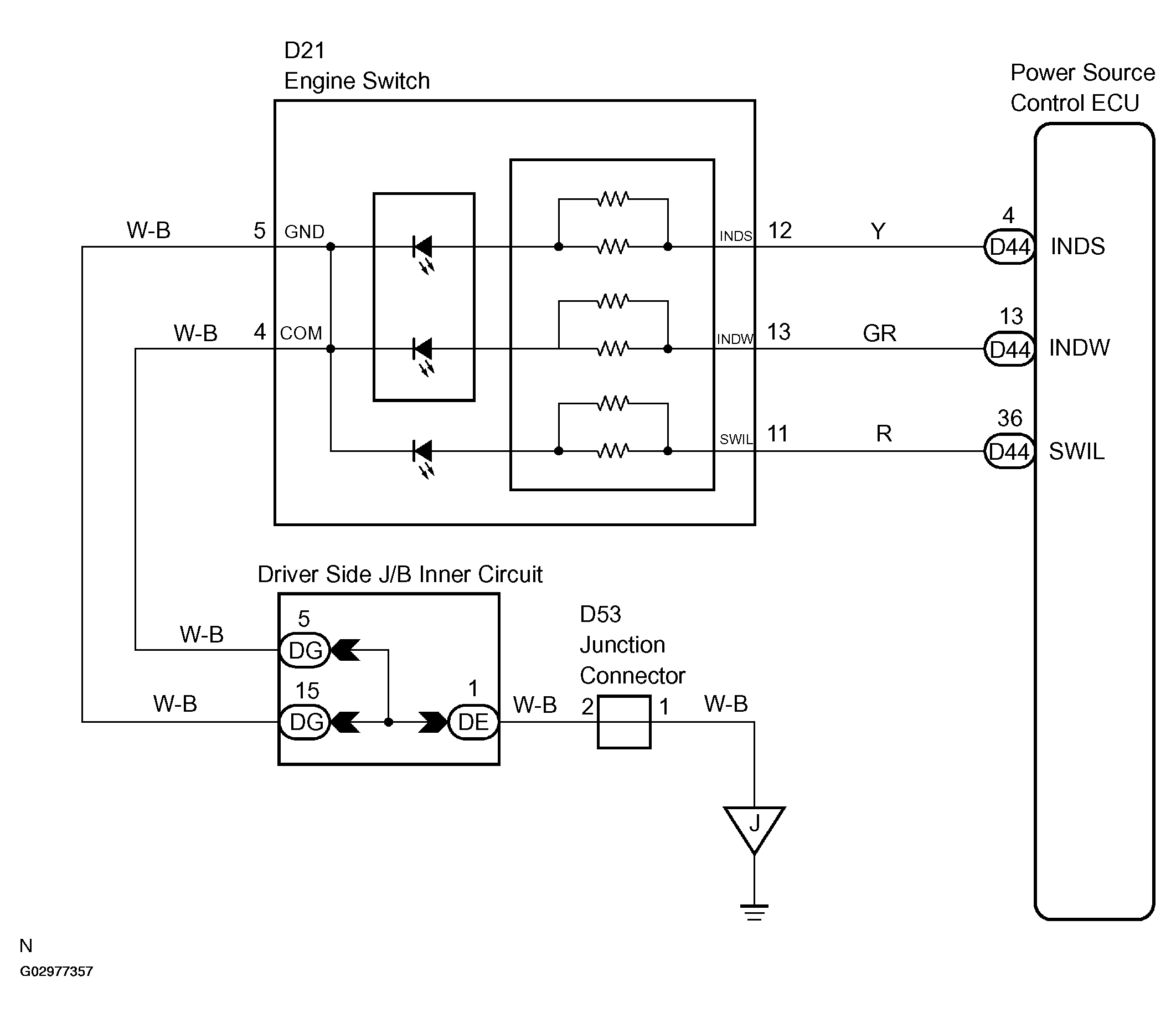

Fig 1: Engine Switch Indicator Light Circuit Wiring Diagram

G02977357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
