System Diagram

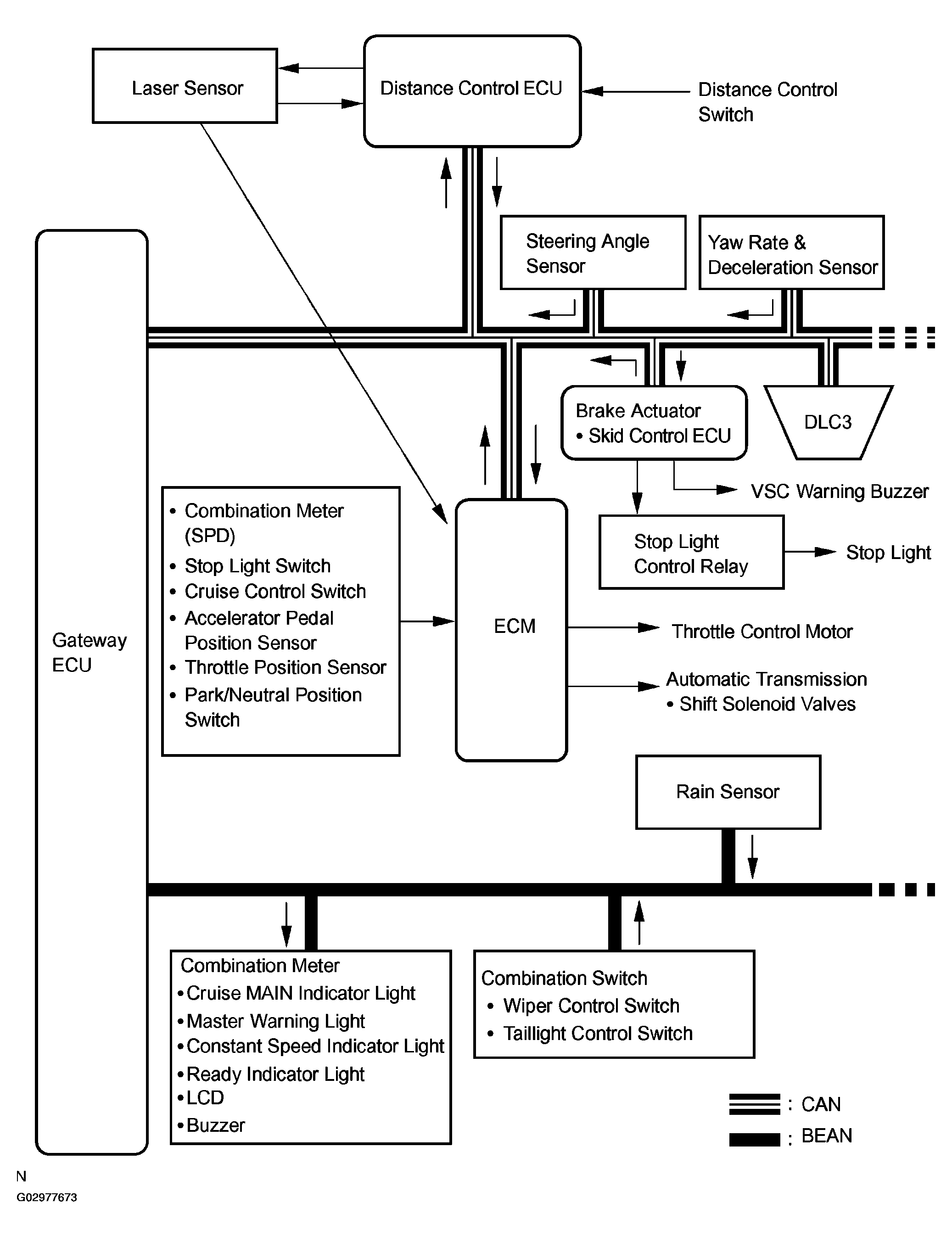

Fig 1: System Diagram Of Dynamic Laser Cruise Control System
G02977673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Input and output signals of each ECU

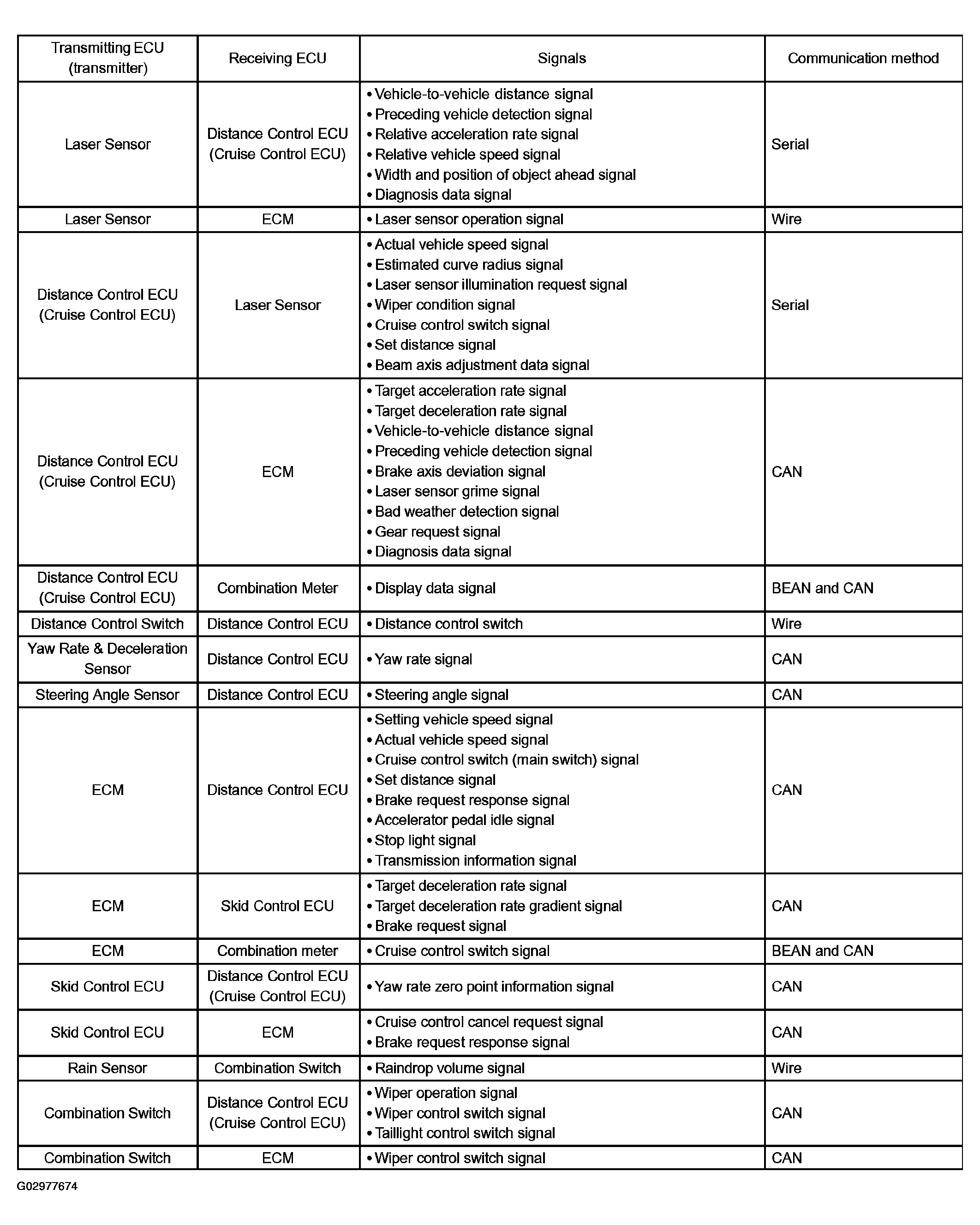

Fig 2: Input And Output Signals Of Each ECU Chart (1 Of 2)
G02977674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

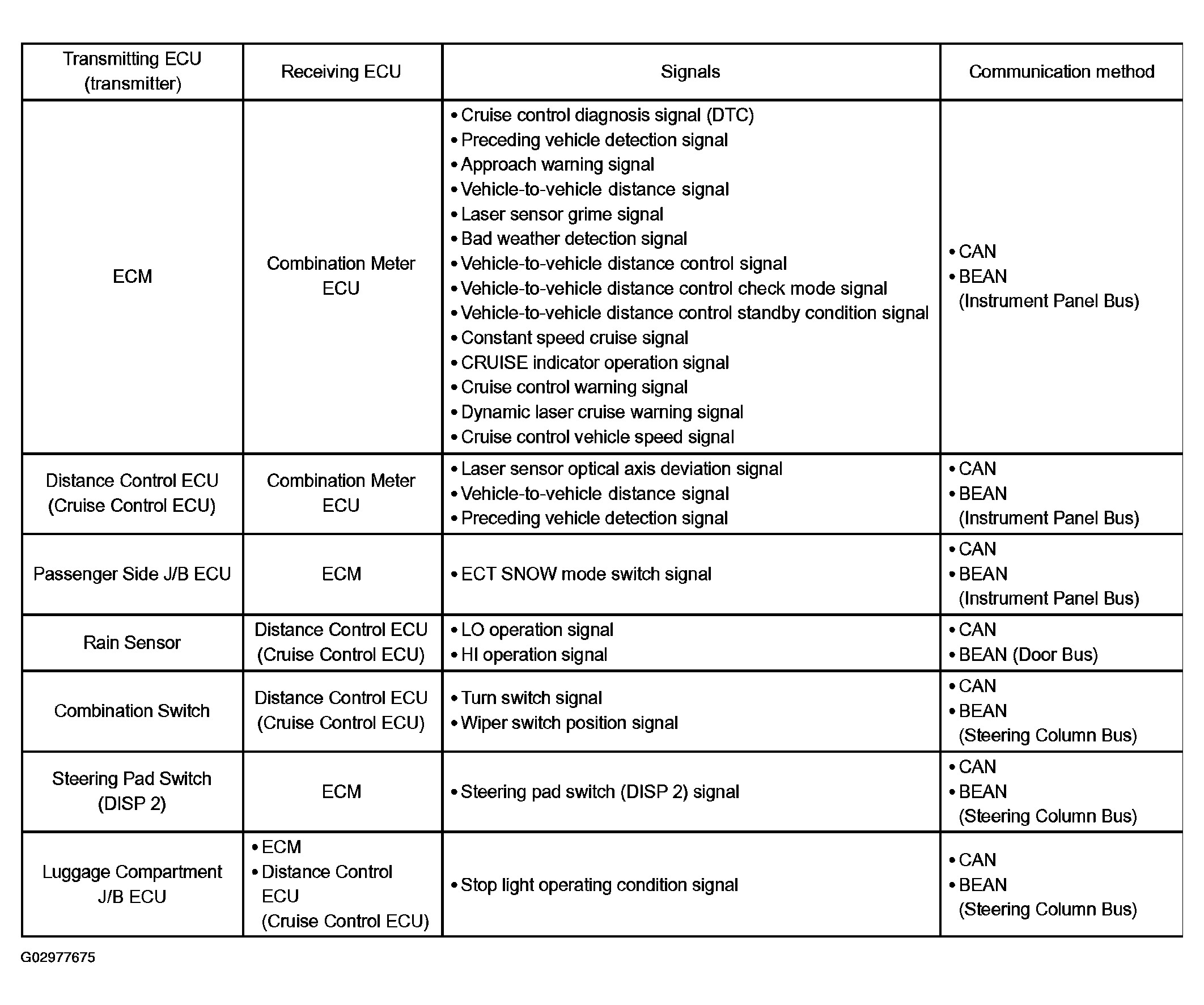

Fig 3: Input And Output Signals Of Each ECU Chart (2 Of 2)
G02977675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
