Operation Check

INPUT SIGNAL CHECK (Using hand-held tester)
1. Connect the hand-held tester to the DLC3.
2. Check the cruise control main switch using the DATA LIST function in the hand-held tester (ON-OFF, CANCEL, -/SET, +/RES, and MODE).

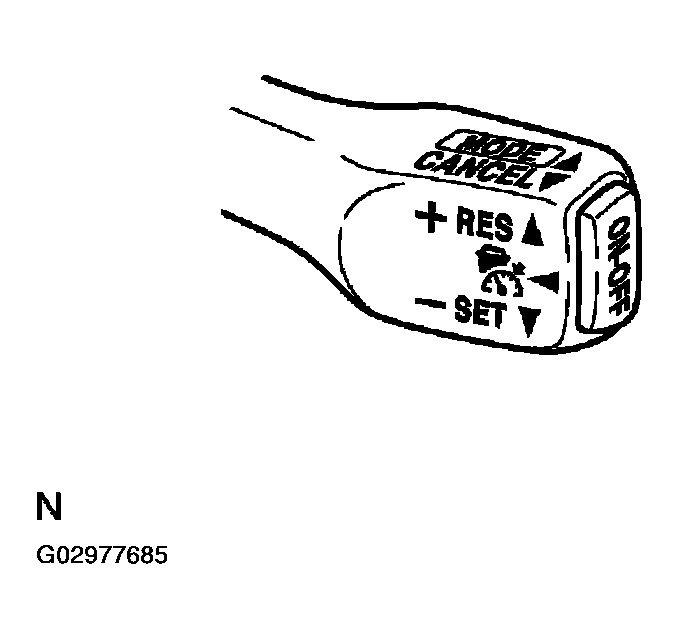

  Fig 1: Input Signal Check
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT MODE SWITCH
1. Turn the ignition switch on (IG).
  HINT:

  Dynamic laser cruise system is in the default mode.

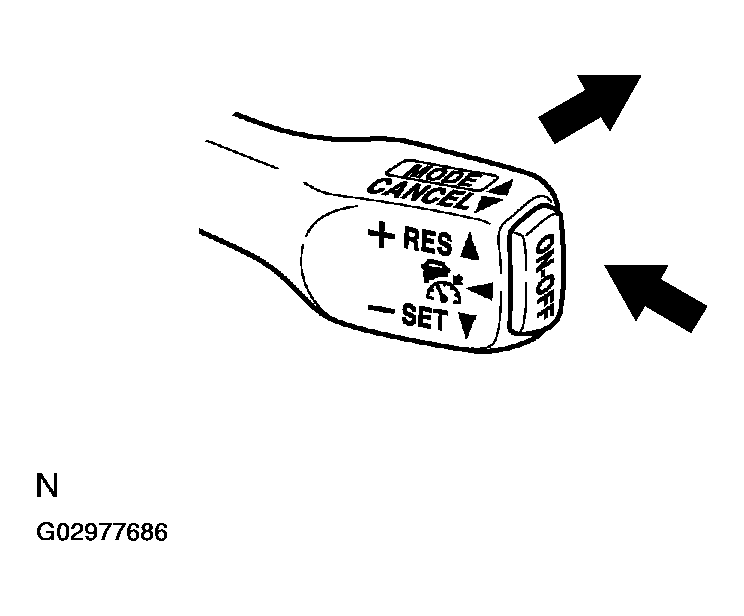

  Fig 2: Turning Ignition Switch On (IG)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. After pushing the ON-OFF button on, push the cruise control main switch to MODE for at least 1 second without performing any other control. Make sure that only "NORM" and nothing else is indicated on the display.
  NOTE: When performing other operations (setting) after pushing the ON-OFF button on, the system cancels the constant speed control mode and cannot return to the mode again.

  HINT:

  If the system cannot switch to the constant speed control mode, push the ON-OFF button off once, and perform the same procedures as shown above. If a malfunction is still detected in the system, start the engine again and perform the above procedure.

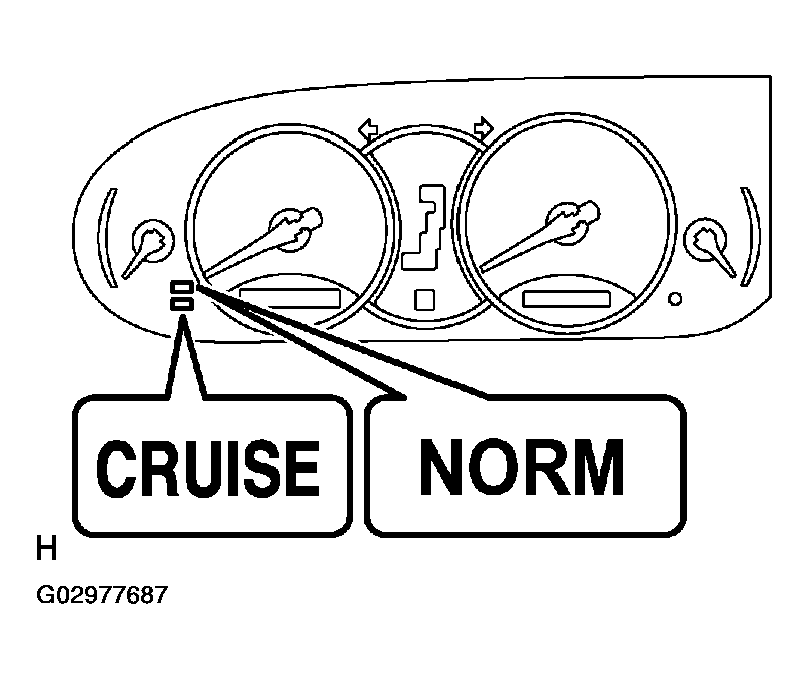

  Fig 3: Identifying CRUISE And NORM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEERING PAD SWITCH ASSY
1. Turn the ignition switch on (IG).
2. Push on the ON-OFF button of the cruise control main switch.
3. Push on the distance control switch of the steering pad switch.
4. Check that the indication of distance between vehicles, which are shown on the multi-information display of the combination meter, changes from "LONG", "MIDDLE" to "SHORT" in order.
  HINT:

  The indication is immediately set to "LONG" each time the engine is started.

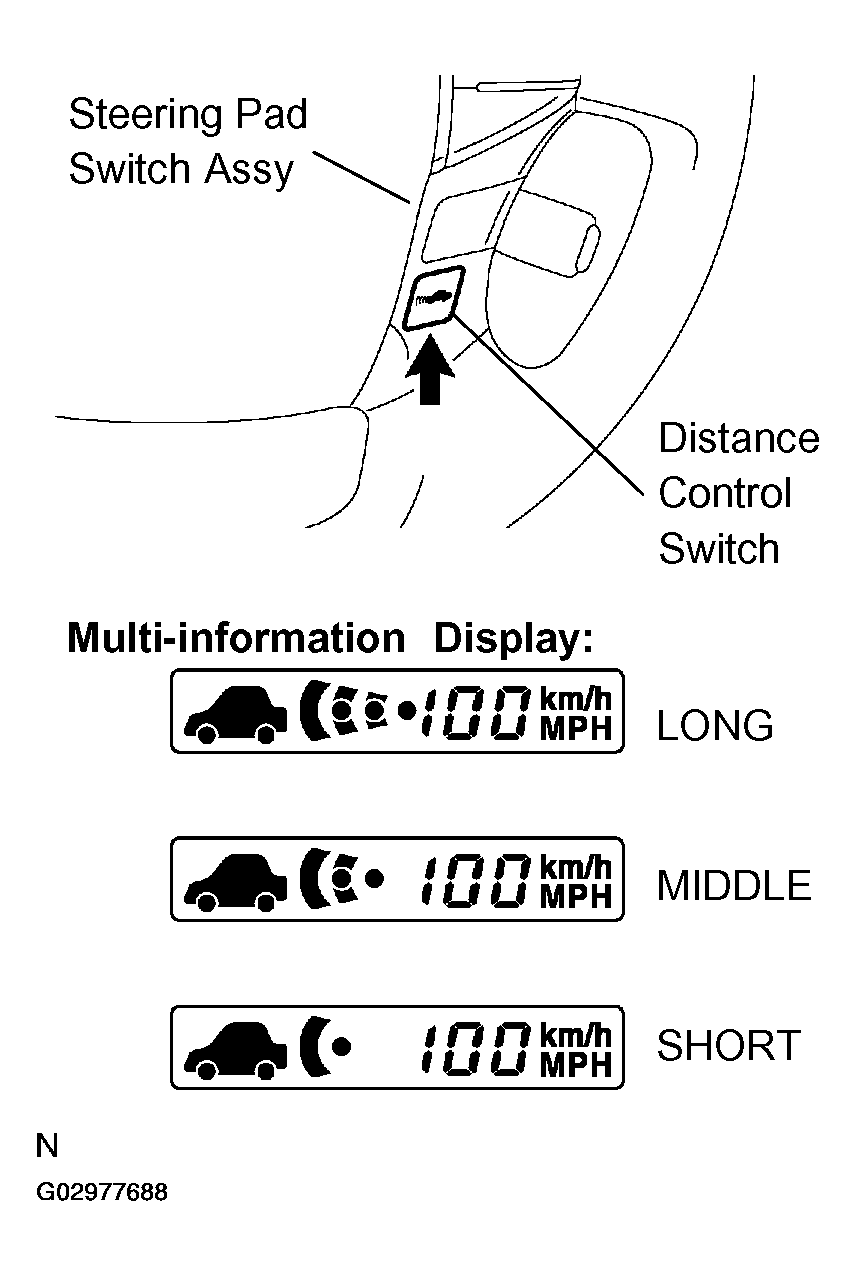

  Fig 4: Inspecting Steering Pad Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
