Inspection Procedure

  1. INSPECT LASER SENSOR
    1. Disconnect the laser sensor connector.
    2. Measure the voltage according to the value(s) in LASER SENSOR  .

      Standard:

      LASER SENSOR

      Tester connection Condition Specified value
      A36-5 (IGB) - Body ground Ignition SW ON (IG) 10 to 14 V

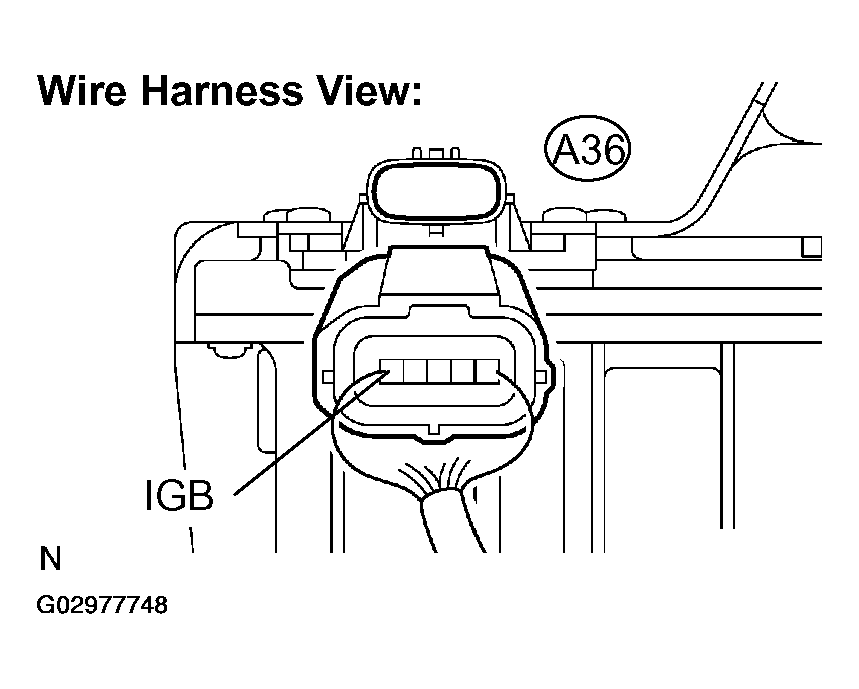

      Fig 1: Inspecting Laser Sensor
      G02977748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step   3
    2. OK: Go to next step.
  2. CHECK WIRE HARNESS AND CONNECTOR (LASER SENSOR - ECM)
    1. Disconnect the ECM A24 connector.
    2. Measure the resistance according to the value(s) in LASER SENSOR - ECM  .

      Standard:

      LASER SENSOR - ECM

      Tester connection Condition Specified value
      A36-1 (LGND) -A24-31 (LGND) Always Below 1 Ω
      A36-1 (LGND) -Body ground Always 10 kΩ or higher
      A36-2(SGND) - Body ground Always Below 1 Ω

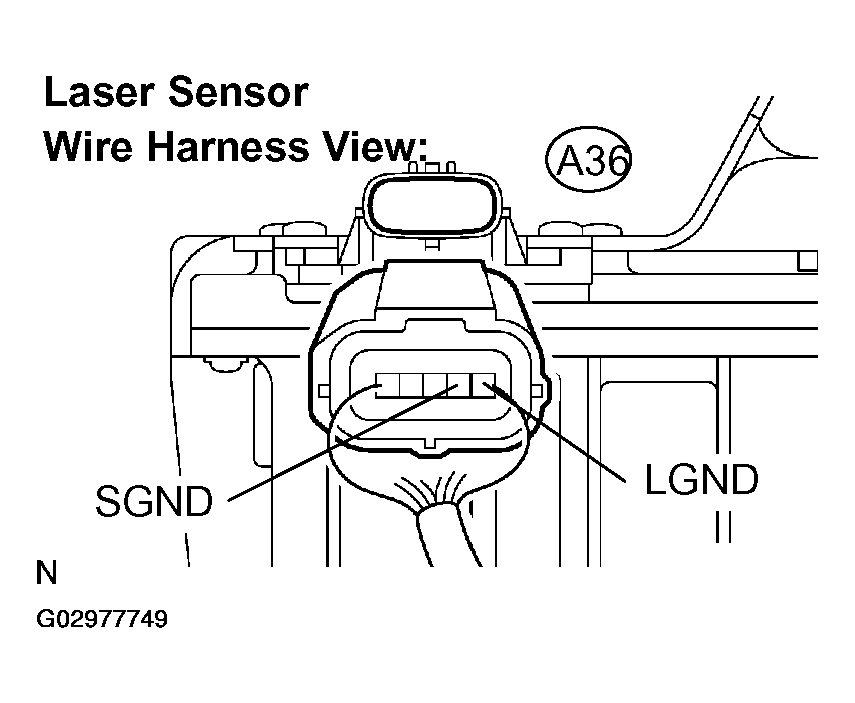

      Fig 2: Checking Wire Harness And Connector (Laser Sensor)
      G02977749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

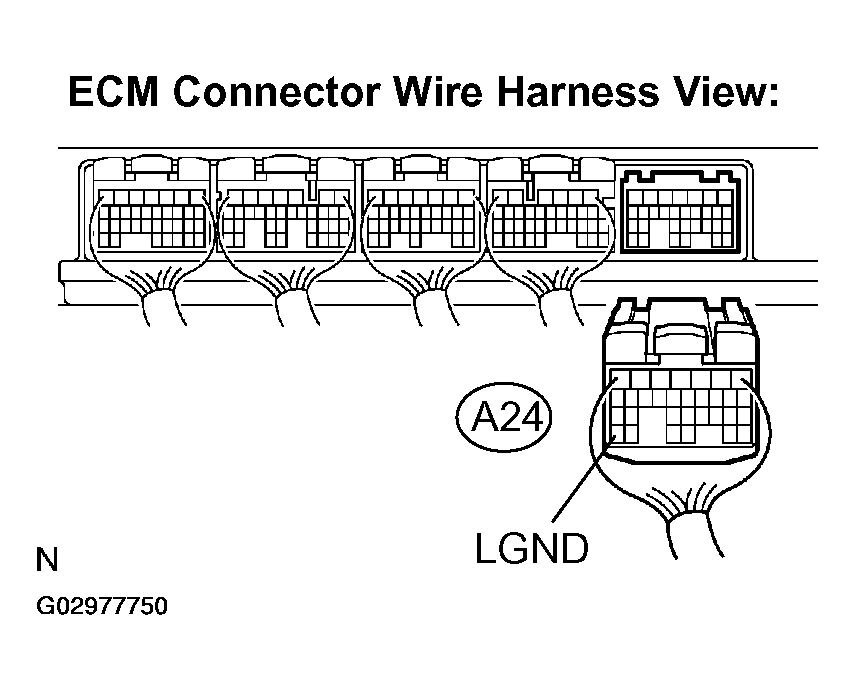

      Fig 3: Checking Wire Harness And Connector (ECM)
      G02977750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
  3. CHECK WIRE HARNESS AND CONNECTOR (LASER SENSOR - DISTANCE CONTROL ECU)
    1. Disconnect the cruise control ECU (distance control ECU) connector.
    2. Measure the resistance according to the value(s) in LASER SENSOR - DISTANCE CONTROL ECU  .

      Standard:

      LASER SENSOR - DISTANCE CONTROL ECU

      Tester connection Condition Specified value
      A20-13 (IGB) - A36-5 (IGB) Always Below 1 Ω
      A20-13 (IGB) - Body ground Always 10 kΩ or higher

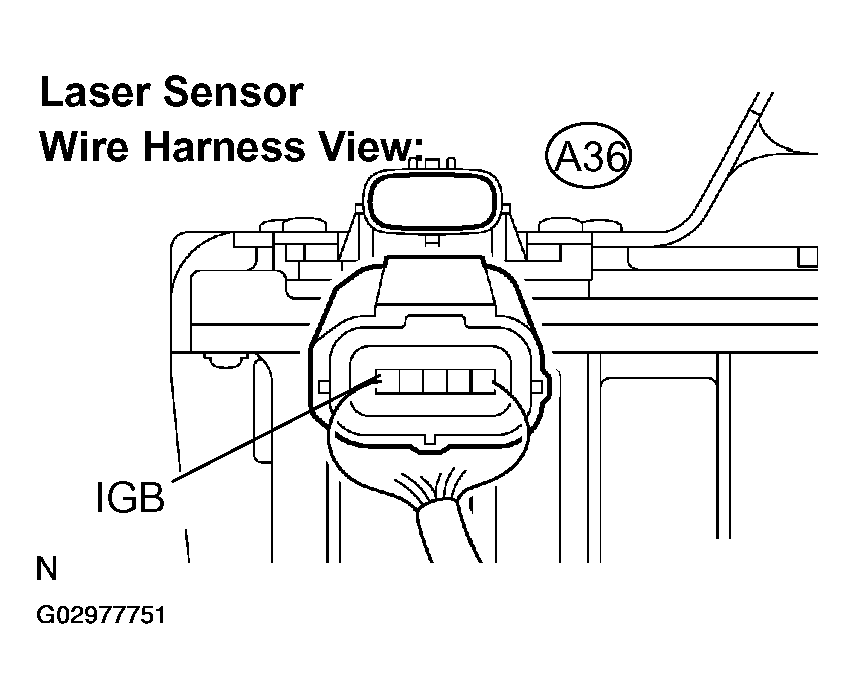

      Fig 4: Checking Wire Harness And Connector (Laser Sensor)
      G02977751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

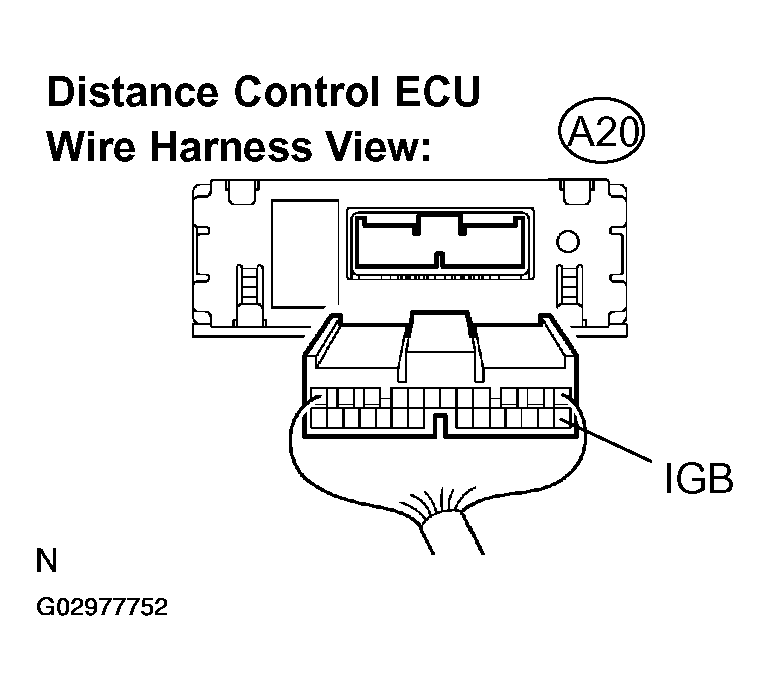

      Fig 5: Checking Wire Harness And Connector (Distance Control ECU)
      G02977752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
