Distance Control Switch Circuit: Wiring Diagram

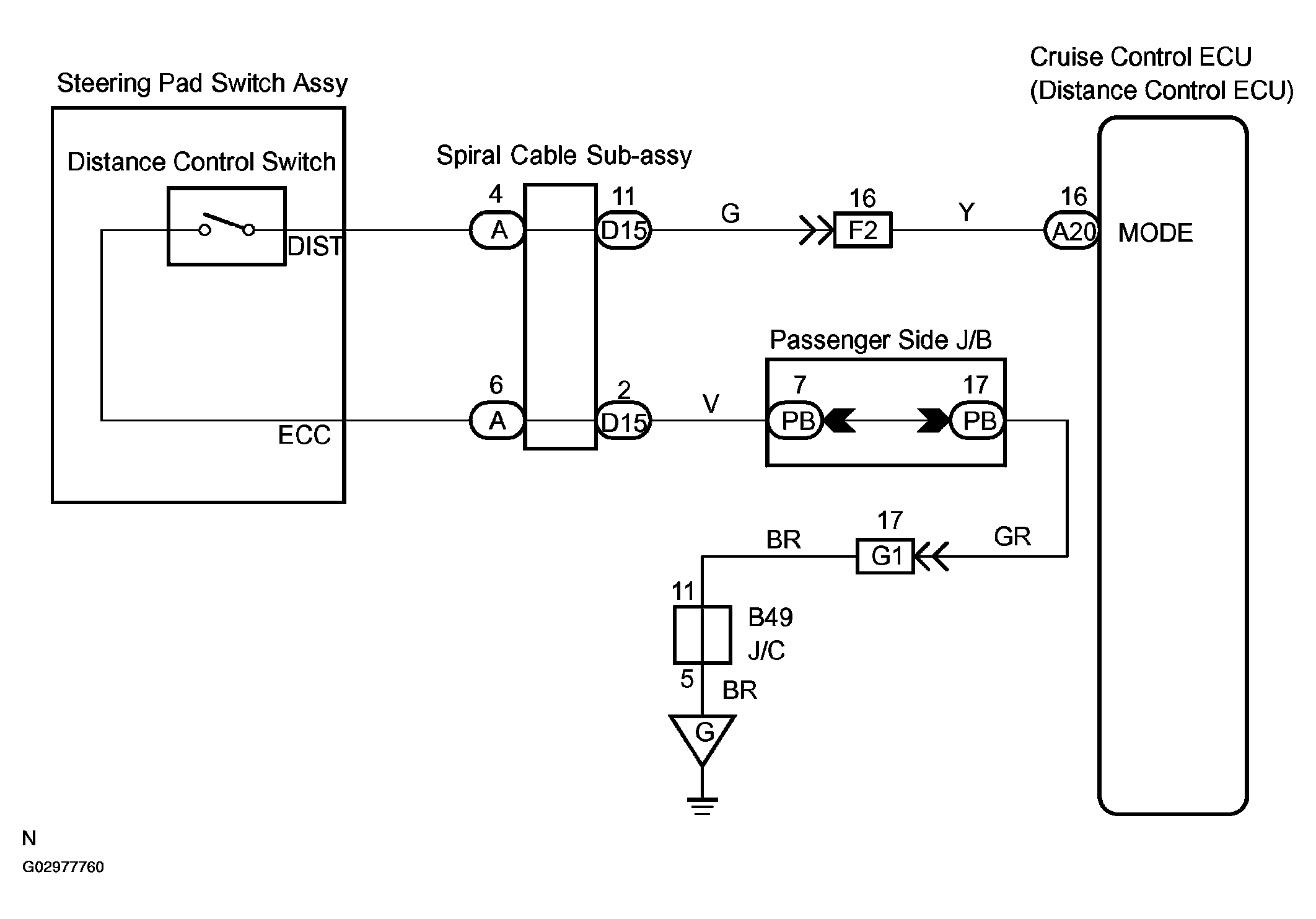

Fig 1: Distance Control Switch Circuit - Wiring Diagram

G02977760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
