Data List/Active Test

HINT:

From the DATA LIST displayed on the hand-held tester, the value of components such as the switch, sensor, and actuator can be read without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten labor time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. According to the display on the tester, read the "DATA LIST".

   CC (ECM):

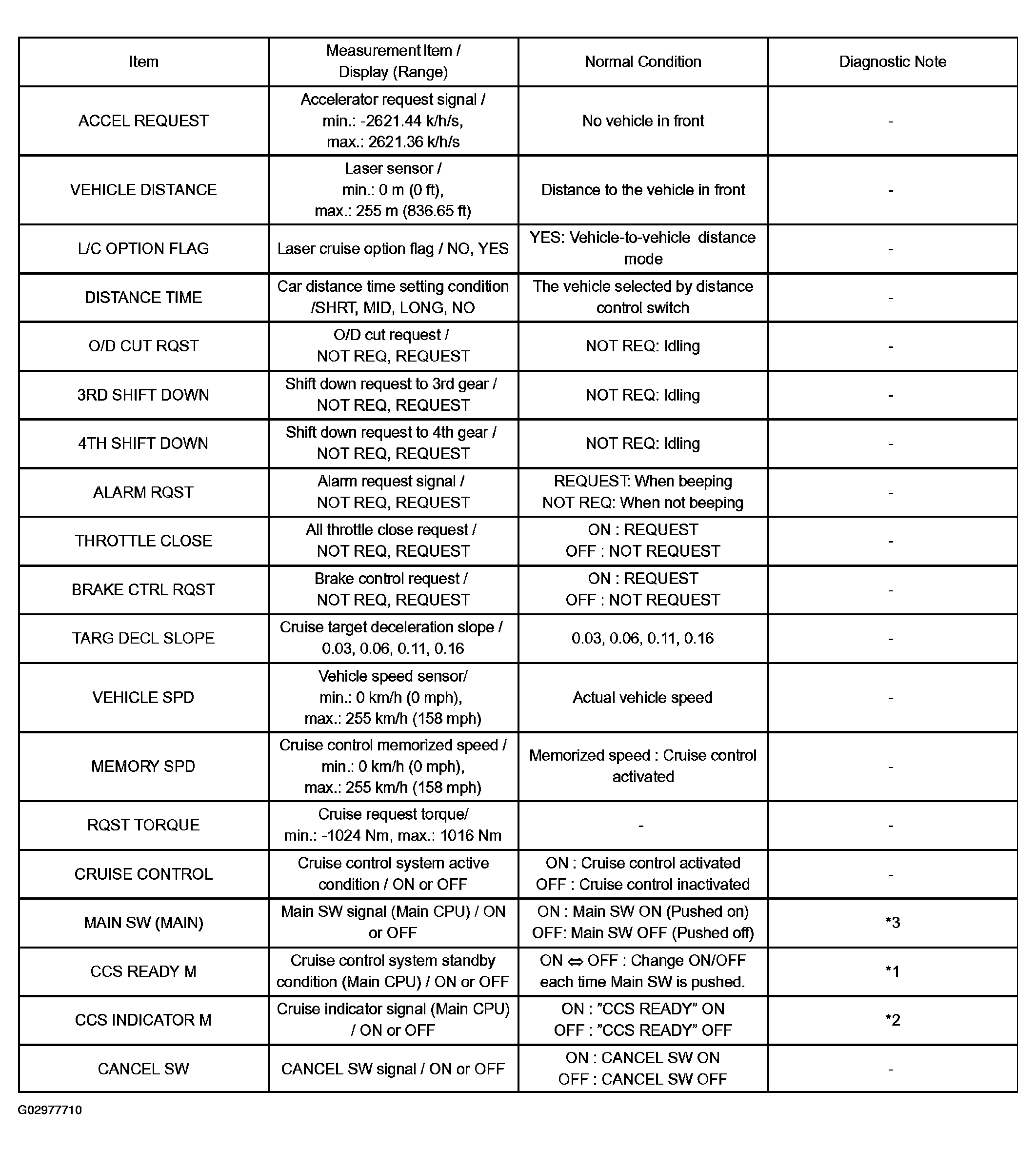

   Fig 1: Data List CC (ECM) Chart (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

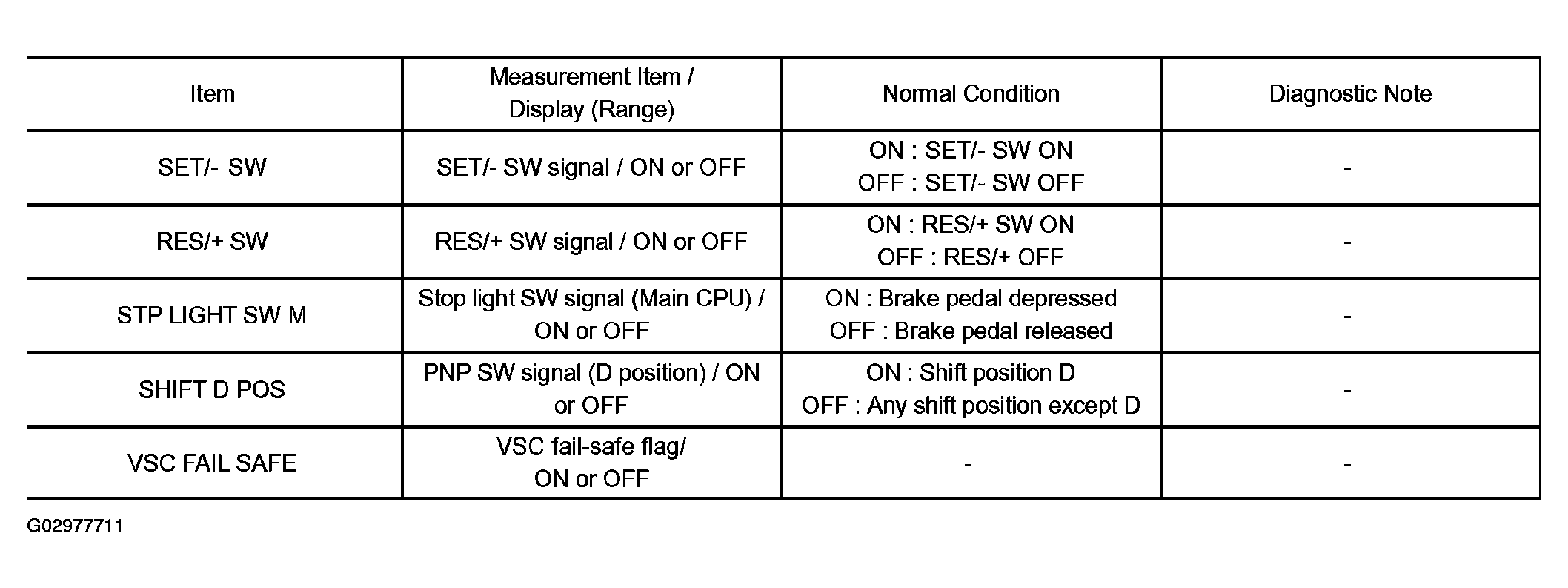

   Fig 2: Data List CC (ECM) Chart (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   *3 is OK, but *1 is NG -> ECM failure

   *1 is OK, but *2 is NG -> DTC output or ECM failure

   *3 is OK, but CRUISE main indicator light does not come on -> Indicator, wire harness, or ECM failure

HINT:

Performing the ACTIVE TEST using the hand-held tester allows components such as the relay, VSV, and actuator to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. According to the display on the tester, perform the "ACTIVE TEST".

   HINT:

   The ignition switch must be turned on (IG) to proceed to the ACTIVE TEST using the hand-held tester.

   COMBINATION METER ASSY:

   ACTIVE TEST (COMBINATION METER ASSY)



   Item	Vehicle Condition / Test Details	Diagnostic Note
   CRUISE INDIC	"CRUISE" indicator is ON / OFF	-
   L-CRUISE DISP	Graphic area is ON / OFF	-
   L-CRS CHECK IND	"CHECK CRUISE SYSTEM" indicator is ON / OFF	-
   L-CRS READY IND	"RADAR READY" indicator is ON / OFF	-
