Circuit Description

This circuit detects the yaw rate of the vehicle and transmits its signal to the skid control ECU and distance control ECU.

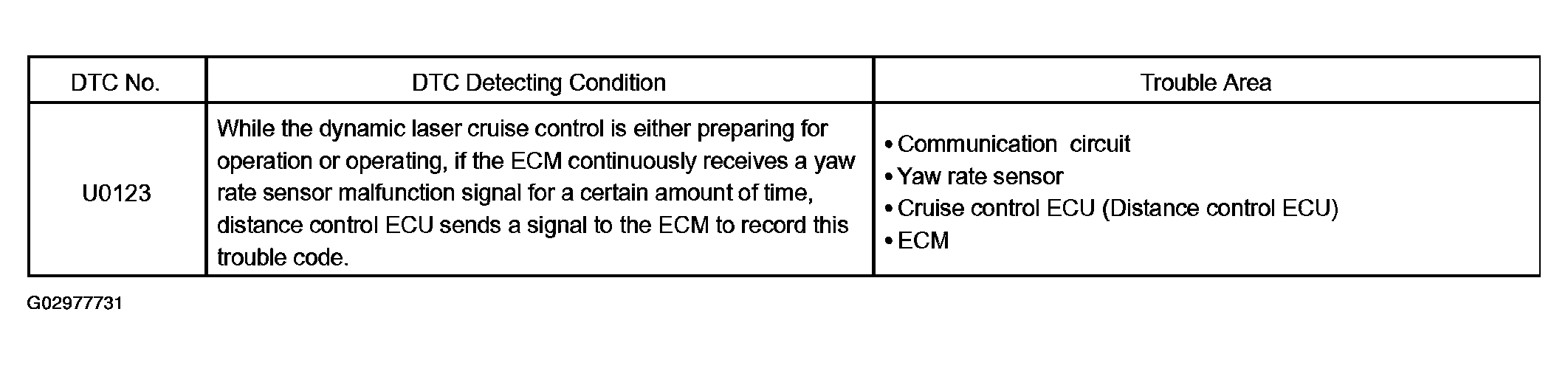

Fig 1: DTC Chart
G02977731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
