DTC Check/Clear

  1. DTC CHECK
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch on (IG).
    3. Read the DTCs on the tester screen.
  2. DTC CLEAR
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch on (IG).
    3. Clear the DTCs following the prompts on the tester screen.

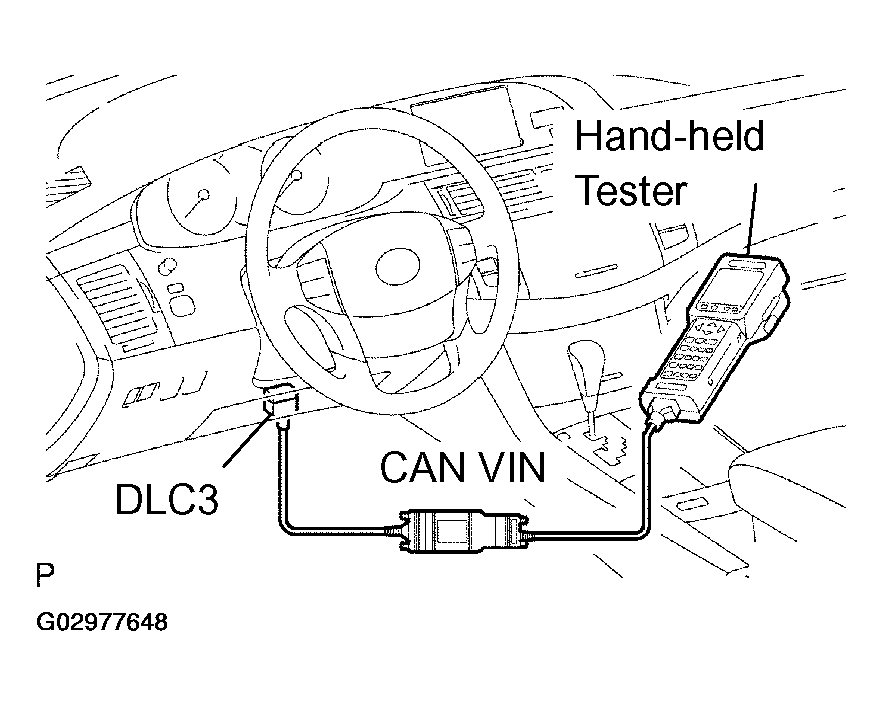

      Fig 1: Connecting Hand-Held Tester To DLC3
      G02977648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
