DISPLAY CHECK MODE (Color Bar Check)

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the color display on the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (See DIAGNOSIS SYSTEM ).
Select "Display Check" from the "Diagnosis MENU" screen.

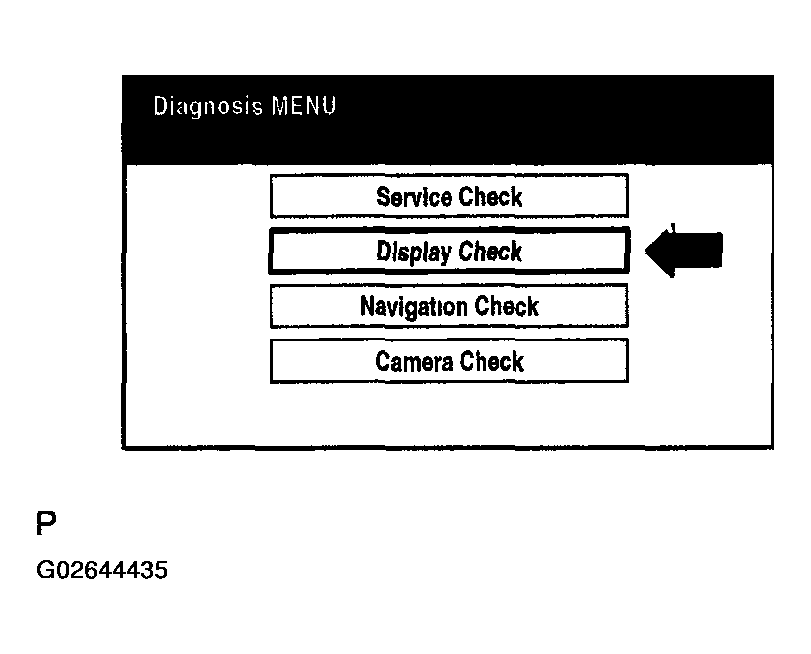

Fig 1: Selecting Display Check From Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Color Bar Check" from the "Display Check" screen.

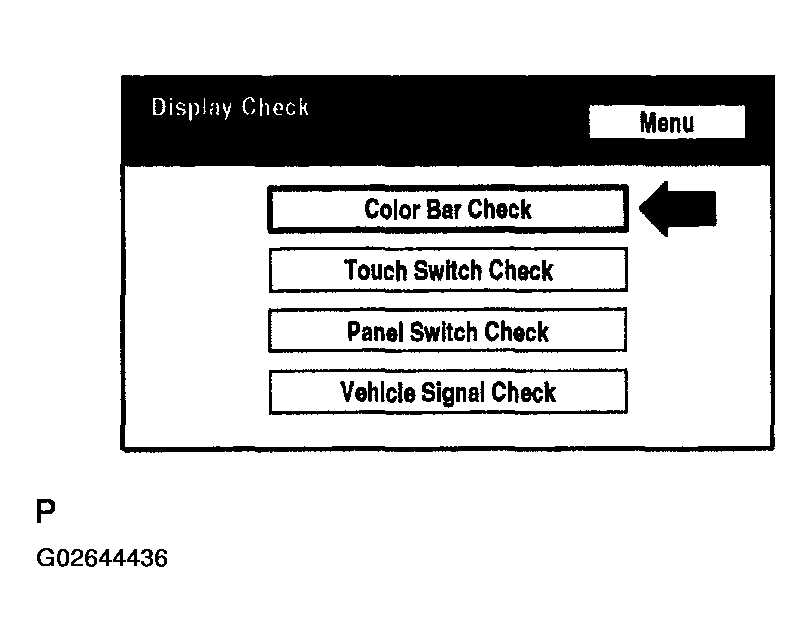

Fig 2: Selecting Color Bar Check From Display Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select a color bar from the "Color Bar Check Mode" screen.
HINT:
- The entire screen turns to the color or stripe selected.
- Touching the display will return to the "Color Bar Check" screen.
Fig 3: Selecting Color Bar From Color Bar Check Mode Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
