Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Check GPS mark.
CHECK:

Check that the GPS mark is displayed.

OK:

The GPS mark is displayed.

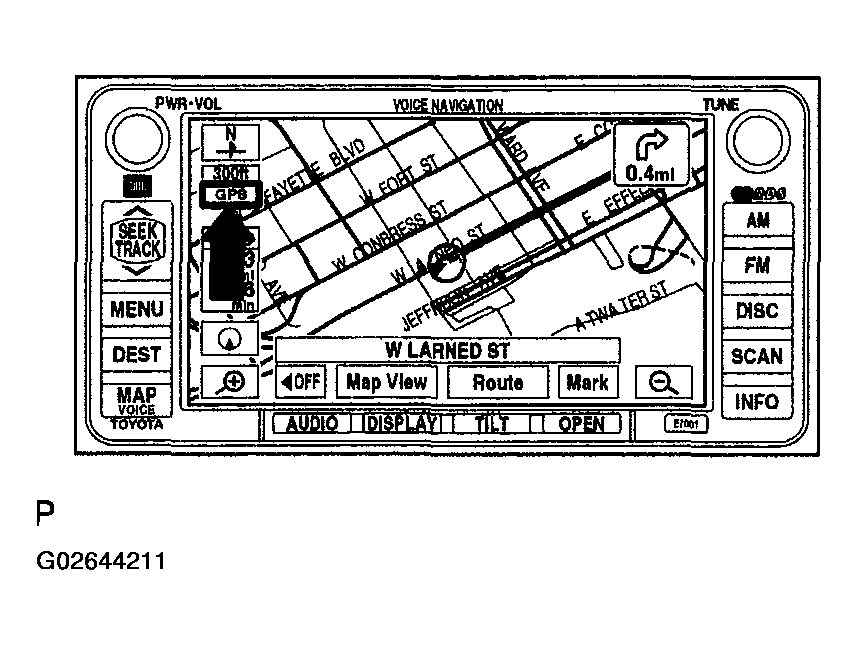

Fig 1: Checking GPS Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Go to "GPS mark is not displayed" in flow chart (See GPS MARK IS NOT DISPLAYED ).
2. OK : GO TO NEXT STEP
Navigation check mode (Vehicle sensors check).
PREPARATION:

Enter the NAVIGATION CHECK MODE (VEHICLE SENSORS) .

CHECK:

While driving, compare the "SPD" indicator to the reading on the speedometer. Check that these readings are almost the same.

OK:

The readings are almost the same.

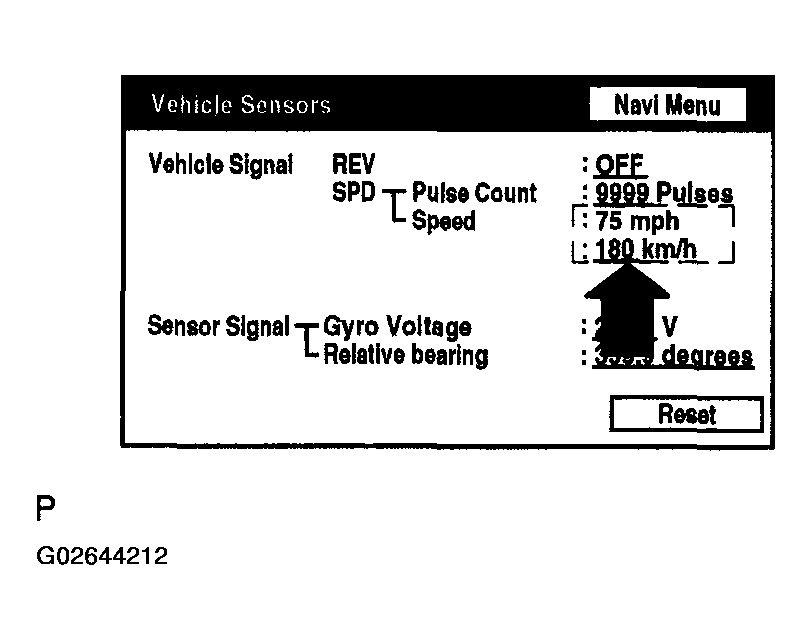

Fig 2: Identifying Navigation Check Mode (Vehicle Sensors Check)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Go to "speed signal circuit" in flow chart (See Speed signal circuit ).
2. OK : Go to next Step.

Navigation check mode (Vehicle sensors check).

CHECK:

Check the "REV" display according to the table below.

OK:

SHIFT LEVER POSITION

Shift lever	Display
R	ON
Any position except R	OFF

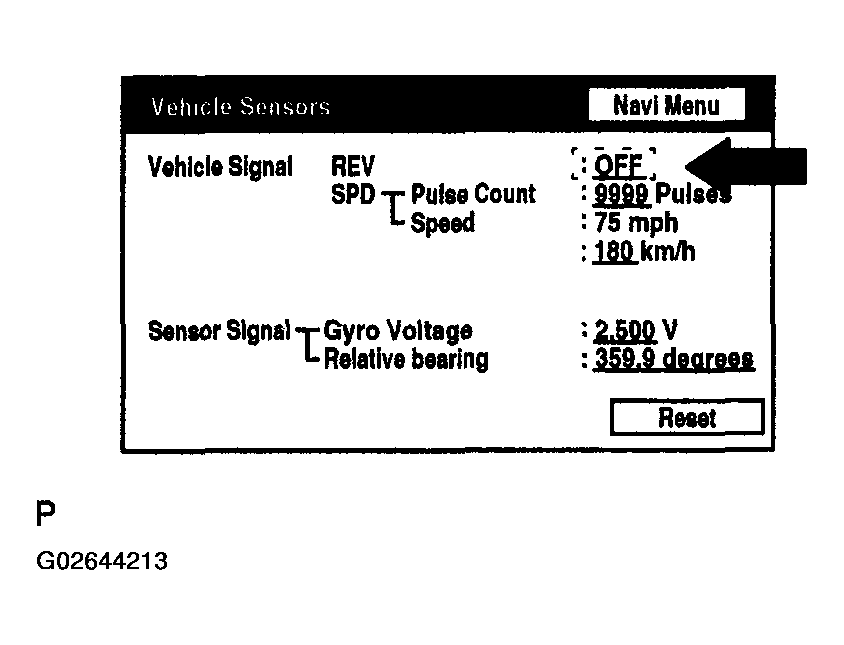

Fig 3: Identifying Navigation Check Mode (Vehicle Sensors Check)

HINT:

The display is updated once per second. As a result, it is normal for the display to lag behind the actual change in the switch.

NG : Go to "reverse signal circuit" in flow chart (See Reverse signal circuit ).
OK: Proceed to next circuit inspection shown in PROBLEM SYMPTOMS TABLE .
