Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Check radio and navigation assy.
CHECK:

Check for foreign matter or obstructions caught in the moving parts of the panel.

OK:

No obstruction or foreign matter is found.

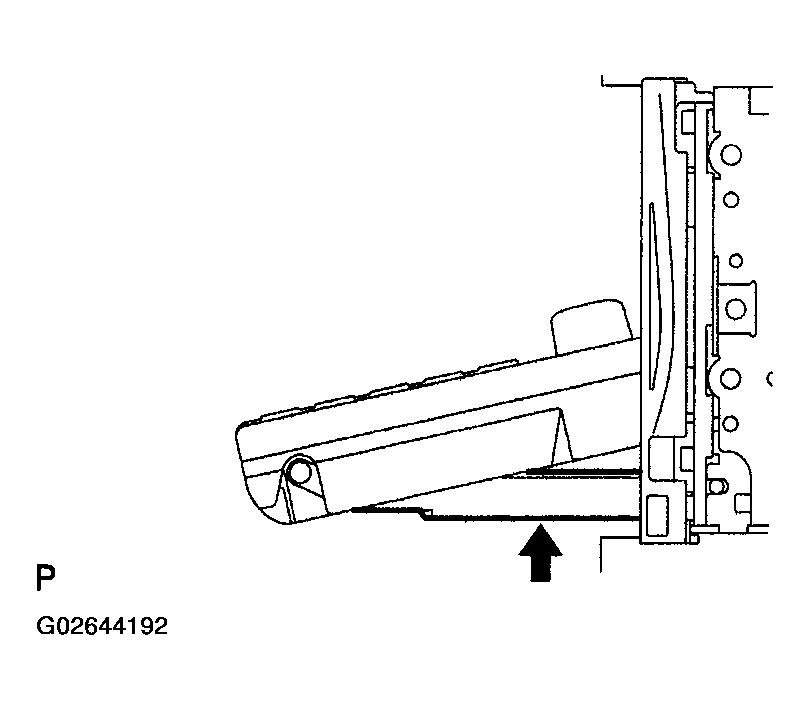

Fig 1: Checking Radio And Navigation Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Remove any obstruction or foreign matter found.
2. OK : Go to next Step.
Operation check.
CHECK:

Check if the navigation and audio systems function properly.

OK:

Navigation and audio systems function properly.
1. OK : Replace radio and navigation assy.
2. NG : Proceed to next circuit inspection shown in PROBLEM SYMPTOMS TABLE .
