Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Check radio and navigation assy.
CHECK:

Check if a map disc is inserted in the map disc slot.

OK:

A map disc is inserted.

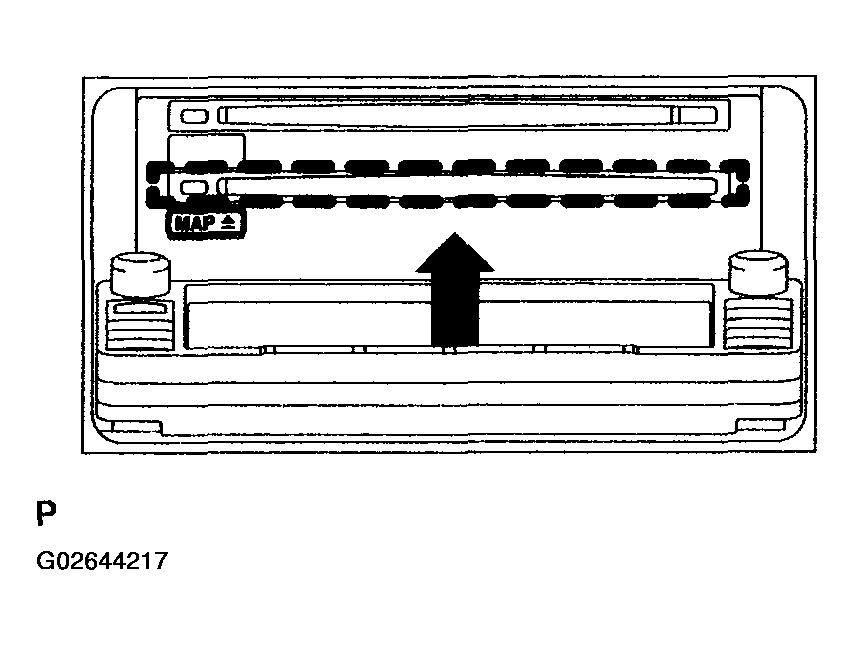

Fig 1: Checking Radio And Navigation Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Insert map disc in "MAP" side slot.
2. OK : Go to next Step.
Check map disc.
CHECK:

Check that the map disc is not deformed or cracked.

OK:

No deformations or cracks appear on the map disc.

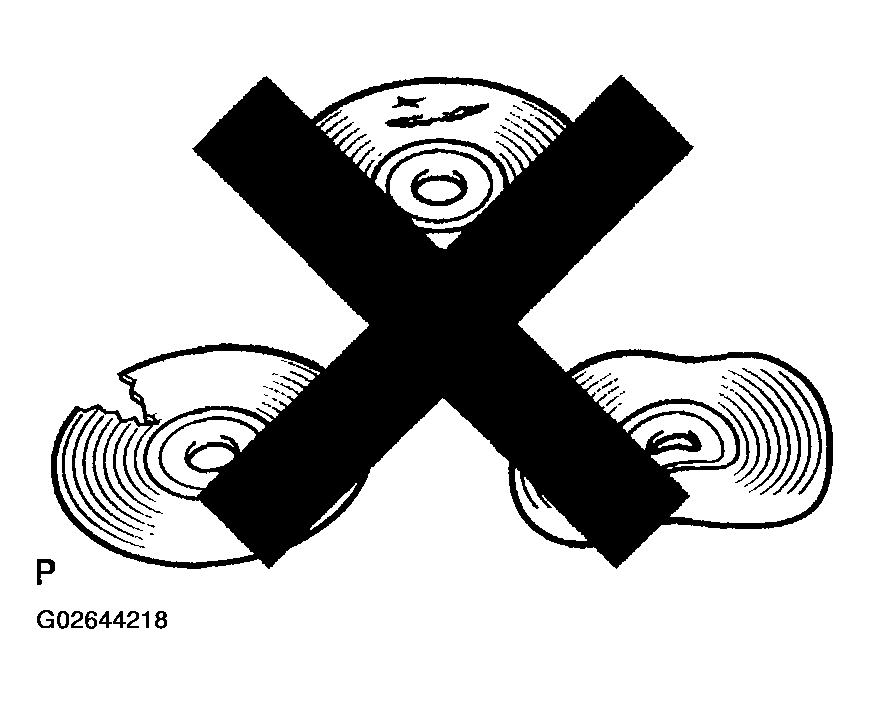

Fig 2: Checking Map Disc
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Replace map disc.
2. OK : Proceed to next circuit inspection shown in PROBLEM SYMPTOMS TABLE .
